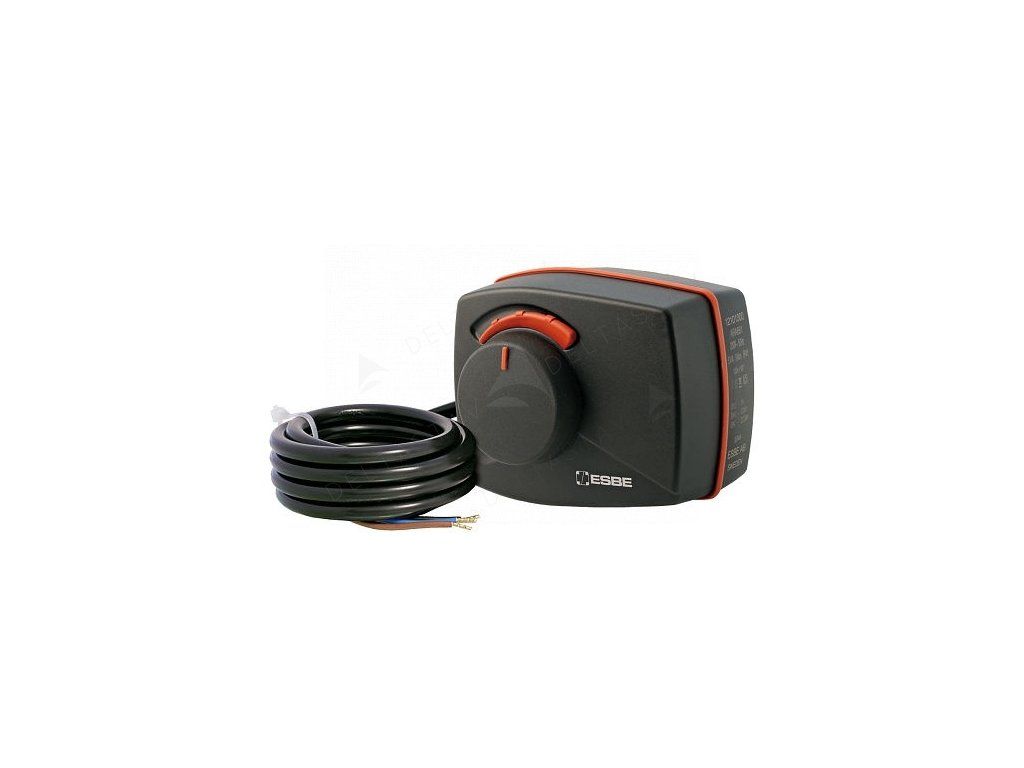

Actuator ESBE ARA

Product detailed description

- is designed to motorise rotary mixing fittings DN15-DN50.
The actuator has an operating angle of 90° and the valve can also be operated manually if needed, thanks to the pull-out knob on the front.

• cable length: 1,5 m
• ambient temperature: max +55°C
• protection rating: IP 41

- ESBE ARA 653: power supply 24V, 3-point, running time 60s and torque 6Nm

- ESBE ARA 663: power supply 24V, 3-point, running time 120s and torque 6Nm

- ESBE ARA 651: power supply 230V, 3-point, running time 60s and torque 6Nm

- ESBE ARA 661: power supply 230V, 3-point, running time 120s and torque 6Nm

- ESBE ARA 639: power supply 0-10V / 24V, running time 15s/30s/60s/120s
  and torque 6Nm

- ESBE ARA 659: power supply 0-10V / 24V, running time 45s/120s and torque 6Nm

- for 3-way valve ESBE VRG 131

- for 4-way valve  ESBE VRG 141

Frequently Asked Questions

• How do I check that this product is suitable for my system? Compare the size, material and technical parameters given in the description with the requirements of your specific system. If in doubt, contact us with an exact description of your setup.
• Must installation be carried out by a professional? A handy homeowner can install simpler parts, but for interventions in gas, electrical or pressurised piping we always recommend a professional technician.
