ATMOS DC 25 GS REG

Code: DC25GS REG

Not rated Rating details

Brand: Atmos

Stacionárny kotol ATMOS DC 25 GS REG – pohľad 2

Stacionárny kotol ATMOS DC 25 GS REG – pohľad 3

Stacionárny kotol ATMOS DC 25 GS REG – pohľad 4

Stacionárny kotol ATMOS DC 25 GS REG – pohľad 5

Stacionárny kotol ATMOS DC 25 GS REG – pohľad 6

5 352,22 € / pcs 4 351,40 € excl. VAT

International delivery

Detailed information

Product detailed description

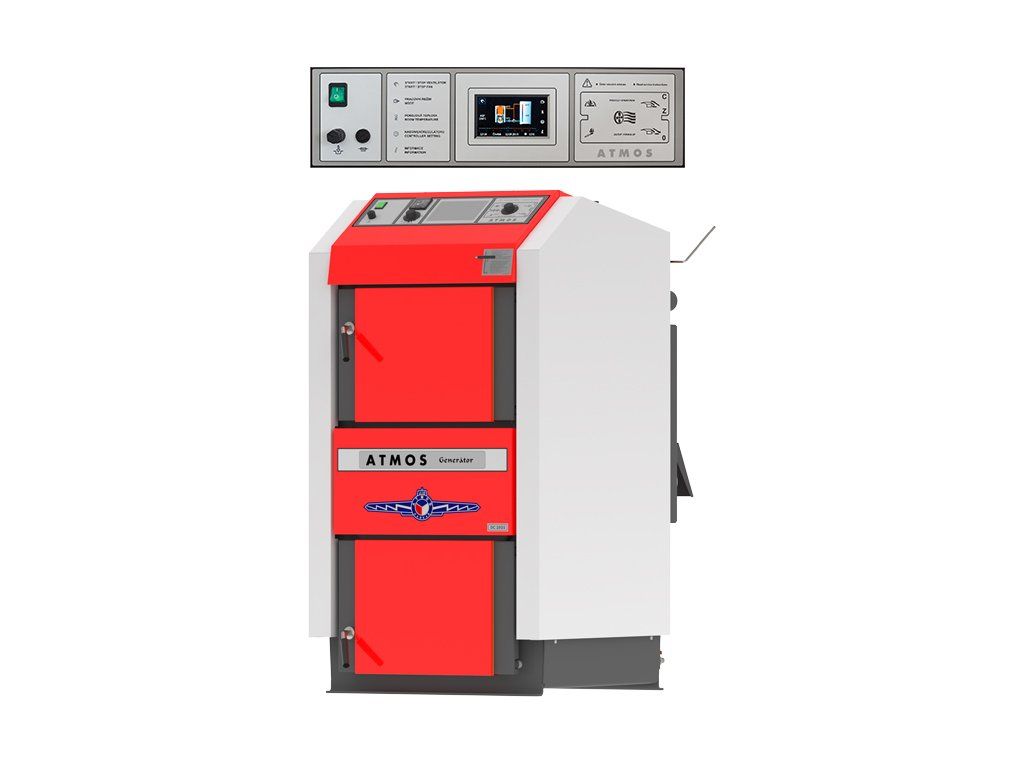

- 25kW ecological wood gasification boiler – GENERATOR with built-in ACD04 weather-compensating control unit with touch display

– the Generator type is characterized by a special firebox, lined on both sides with ceramic moldings, fitted at the bottom with openings for the supply of preheated primary air, a gasification nozzle with openings for the supply of secondary air, and a lower combustion chamber with a spherical ceramic space. It is designed for burning wood on the principle of generator gasification using an extraction fan (S), which draws flue gases out of the boiler.

The boiler body is manufactured as a welded assembly of high-quality steel sheets with a thickness of 3 to 8 mm. It consists of a fuel hopper (6 mm) fitted at the bottom with a gasification nozzle with a longitudinal opening for the passage of flue gases and gases. The afterburner chamber below it is equipped with ceramic moldings for ideal burnout of all combustible substances with high efficiency and environmentally friendly combustion. At the rear of the boiler body there is a vertical flue gas duct, fitted at the top with a starting damper. The upper part of the flue gas duct is equipped with an exhaust neck for connection to the chimney.

Basic technical data Atmos DC25GS REG:

output: 25 kW
efficiency: 90.3%
required chimney draft: 23 Pa
boiler weight: 431 kg
water volume: 80 L
hopper capacity: 120 dm³
max. wood length: 530 mm
required fuel: dry wood with calorific value of 15 – 18 MJ/kg, diameter 80 – 150 mm and moisture content 12–20%
minimum return water temperature: 65 °C
suitable connection ATMOS F2 Laddomat, ATMOS F4 ESBE
combustion class: 5
energy efficiency class: A+
the boiler panel has a built-in
ACD04 weather-compensating control unit with a touch display, which can control
besides the boiler itself, also the boiler circuit, three heating circuits, DHW heating, solar system, etc. It is functionally identical to the separately sold ACD03 weather-compensating control unit

Note: This boiler can also be purchased in a cheaper version with basic control
- i.e. without the ACD04 weather-compensating control unit here: ATMOS DC25GS

Advantages of ATMOS wood gasification boilers:

possibility of burning large pieces of wood
large fuel hopper = long burning time
high efficiency
ecological combustion - boiler according to ČSN EN 303-5 class 4 and 5, ECODESIGN 2015/1189
extraction fan - dust-free ash removal, smoke-free boiler room
cooling loop against overheating - no risk of boiler damage
automatic boiler shutdown after fuel burnout - flue gas thermostat
convenient ash removal - large ceramic combustion space for ash (with wood, ash is removed once a week)
boiler without a tube bundle - easier cleaning
small dimensions and low weight
high quality

Frequently Asked Questions

How to choose the right output for a solid fuel boiler? Base your choice on the calculated heat loss of the heated building, but for wood/coal boilers also consider that the boiler burns for several hours on one filling at essentially constant output - it is therefore common practice to supplement the boiler with a buffer tank, which stores excess heat for later use instead of the boiler having to be inefficiently damped down.
What is a gasification boiler and how does it differ from a classic one? A gasification boiler burns wood in two stages - first, combustible gas (wood gas) is released by heat in the upper chamber, which is then burned out at high temperature together with supplied secondary air in the lower combustion chamber. The result is significantly higher efficiency and cleaner combustion (less tar and soot) compared to classic single-stage combustion in older boilers.
What else do I need for the installation of this boiler? In addition to the boiler itself, the system usually requires: a buffer (equalization) tank of appropriate volume, a circulation pump (often already with a built-in Laddomat or thermoregulatory valve against low-temperature corrosion of the boiler), a safety valve, an expansion vessel, and a flue/chimney with sufficient draft corresponding to the boiler output - exact draft values can be found in the technical parameters above.
What fuel is suitable and what is not? Use only fuel recommended by the manufacturer for the given model (usually split logs of defined length and moisture, or brown coal briquettes or coal depending on the boiler type) - unsuitable or too moist fuel reduces efficiency, increases tar and deposit formation, and can cause damage to the boiler.
What about chimney inspection and legislation? Before putting the boiler into operation, as well as regularly during its use (usually once a year for solid fuels), a chimney inspection/cleaning by an authorized chimney sweep is required by law - without the relevant inspection document, an insurance claim in the event of a fire may also be disputed.
How much maintenance does the boiler require? This usually includes regular removal of ash and cleaning of heating surfaces/flue gas paths from soot (interval depending on intensity of use, usually in the order of weeks), and once a year a thorough inspection including seals and the chimney.
Can I install the boiler myself? The actual placement and connection of the boiler to the heating system, chimney and safety elements should be carried out or at least professionally checked by a heating technician - this is a device with open flame, high temperatures and pressure elements, where an installation error can be a safety risk.

Additional parameters

Category:	with ACD04 weather-compensated control
Warranty:	2 years
Weight:	495.65 kg
Objem vody:	80 L
Boiler weight:	431 kg
Combustion Class:	5
Efficiency:	90,3%
Energy efficiency class:	A+
Hopper capacity:	120 dm³
Max. log length:	530 mm
Minimum return water temperature:	65 °C
Output:	25 kW
Prescribed fuel:	dry wood with calorific value 15 - 18 MJ/kg, diameter 80 - 150 mm and moisture 12-20 %
Required chimney draught:	23 Pa
