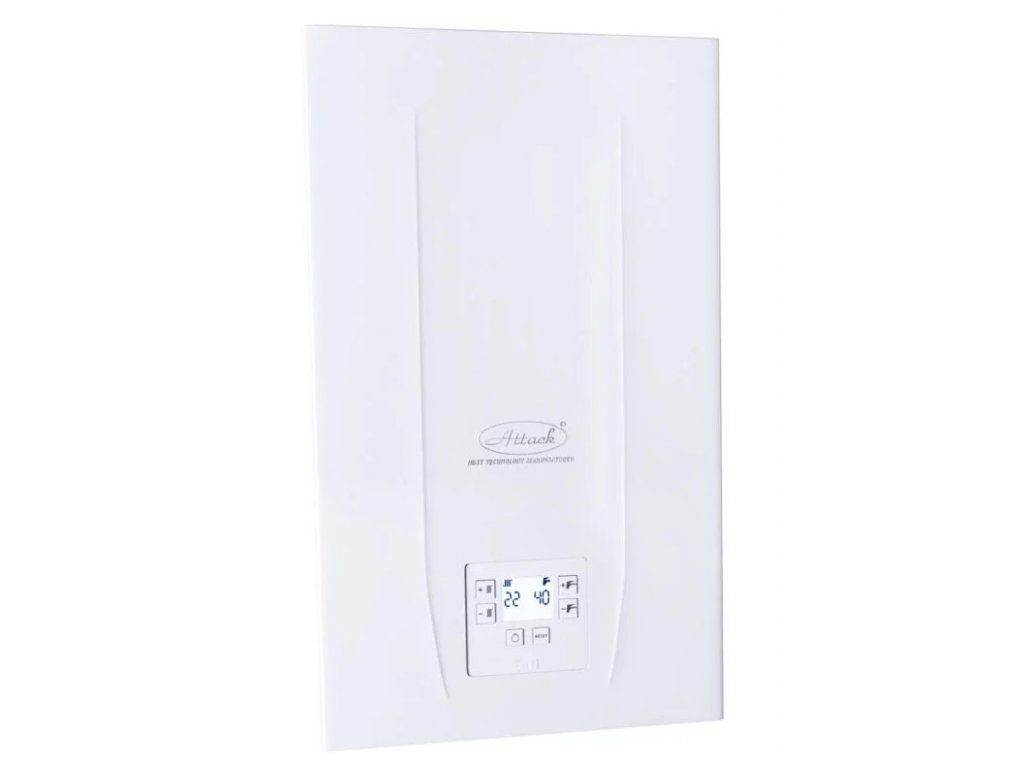

ATTACK Condensing KT 20 kW
Code: ACKT20Related products
Product detailed description
- ATTACK Condensing KT 20 - wall-mounted gas boiler
- output 2,4-21 kW
Condensing KT 20 gas boiler
The ATTACK Condensing gas condensing boiler has a wide output modulation range of up to 1:10. This is the main technical advantage of our gas boilers. This modulation system means that the boiler can operate at a low output, for example (from as low as 2.5kW). The boiler has a compact and elegant design with a backlit LCD display and simple controls. The boiler's high efficiency is up to 106% with energy class A for heating. The Intelligent Combustion System with an adaptive gas valve guarantees perfect combustion in all conditions. Safety is one of our main priorities, so we have equipped the boiler with several integrated protective functions. You can read about why you should choose a condensing boiler and what it can work with in the article.
Frost protection
To increase the service life, we have built a function into the boiler that prevents damage to your condensing boiler due to adverse freezing weather. If you leave the boiler connected to gas and electricity, it will take care of everything for you. If the temperature drops below 6 °C, the burner ignites itself and the pump switches on automatically.
Protection against bacteria
We have built a special Anti-Legionella function into the condensing boiler, thanks to which you don't have to worry about proliferating bacteria that thrive in warm water. One of them is Legionella, which thrives at a water temperature of 25–55 °C. The bacteria are killed by heating the water to more than 60 °C. The Anti-Legionella function takes care of heating the water in the DHW storage tank to 65 °C at least once a week for you, regardless of your thermostat settings.
Protection against pump blockage
During prolonged inactivity, dirt can settle in the pump, which could lead to it becoming blocked. That's why we have added a function to the boiler that keeps the pump clean, and if the pump is inactive for 24 hours, the kotol automatically switches it on for approx. 5 seconds to flush it clean.
New stainless steel heat exchanger
The Condensing KT gas boiler is fitted with a stainless steel heat exchanger equipped with extra-wide channels, where the internal area has increased up to four times compared to a commonly used exchanger. Thanks to the new exchanger better thermal efficiency is achieved, better resistance to scale build-up which makes the Condensing KT ideal even when replacing a boiler boiler in an already existing heating system.
Air intake, used to supply the air needed for combustion
Quality and efficiency
In the manufacture of boilers we used brass components in the hydraulic assembly, ensuring maximum reliability of the product. The new brass hydraulic group is equipped with:
- A high-efficiency pump
- A three-way valve
- By-pass
- A flow regulator with a filter
- A drain valve
- A DHW temperature sensor
Gas boiler and comfort control
If you want to save even more with your condensing boiler and want to raise the comfort bar even higher, you can use an weather-compensated controller*, which will let you do this. The controller will adjust the temperature according to the outdoor temperature. The temperature will thus automatically adapt to changes in household and in the outdoor temperature. This method of control can use the boiler and at the same time save you money on operation. In addition, you get greater comfort, because the controller takes care of everything for you. However, if you want even greater convenience, this is provided by additional control with two-way OpenTherm communication.
* the weather-compensated controller is not included in the boiler's delivery.
OpenTherm control (optional accessory)
The boiler allows you to connect an OpenTherm control which can not only switch on the boiler, but also detect the difference between the actual room temperature and the set value, which allows the output of the boiler to be modulated according to the system's heat demands. OpenTherm communication control guarantees lower consumption, a more stable temperature and greater comfort for the user. Get maximum comfort.
- Option to prepare hot water in an external storage tank
- Condensing heat exchanger made of stainless steel with extra-wide water channels
- Compact and elegant design
- Easy to operate with high efficiency of up to 106% and gas savings
- High modulation ratio 1:10
- Intelligent adaptive gas valve
- Brass hydraulic group
- ICS (Intelligent Combustion System) guarantees perfect combustion in all conditions
- Safe and easy to use thanks to integrated protective functions
- Backlit LCD display with self-diagnostics and simple controls
- Class 6 NOx
Energy class for heating A
| Parameters | Unit | ATTACK CONDENSING KT 20 |
| Maximum central heating thermal input | kW | 25 |
| Minimum central heating thermal input | kW | 2,5 |
| Maximum central heating thermal output | kW | 21 / 19,4 |
| (50/30°C) / (80/60°C) | ||
| Minimum central heating thermal output | kW | 2,4 |
| (80/60°C) | ||
| Gas supply pressure G20 | mbar | 20 |
| Gas supply pressure G31 | mbar | 37 |
| NOx emission class | – | 6 |
| Max./min. operating pressure for heating | bar | 3/1 |
| Efficiency class per Directive 92/42/EEC | – | A |
| Protection rating | IP | IP X5D |
| Electrical voltage | V/Hz | 240/50 |
| Electrical input | W | 73 |
| Weight of the empty boiler | kg | 28,1 |
| Dimensions (W×H×D) | mm | 400x727x324 |
Additional parameters
| Category: | Attack |
|---|---|
| Warranty: | 2 years |
| Weight: | 28.1 kg |
| Country of origin: | EU |
| Option to operate without a thermostat: | Yes |
| Storage tank connection option: | yes |
| Electrical voltage connection: | 230V |
| Boiler commissioning: | by an ATTACK service technician |
| Boiler intended use: | with the option to connect a storage tank |
| Suitable for underfloor heating: | yes |
| Boiler heating output: | high output above 16 kW |
| Manufacturer: | Attack |
