Bosch BASIC 22/25 2300 CT 200
Code: 8730850102Related products
Product detailed description
- Highly efficient, space-saving.
- Intuitively operated LCD display.
- Integrated, electronically controlled low-energy pump.
- Modulation range 1:8.
- Instantaneous (flow-through) water preparation.
- Can be connected to Bosch room and weather-compensated controllers.

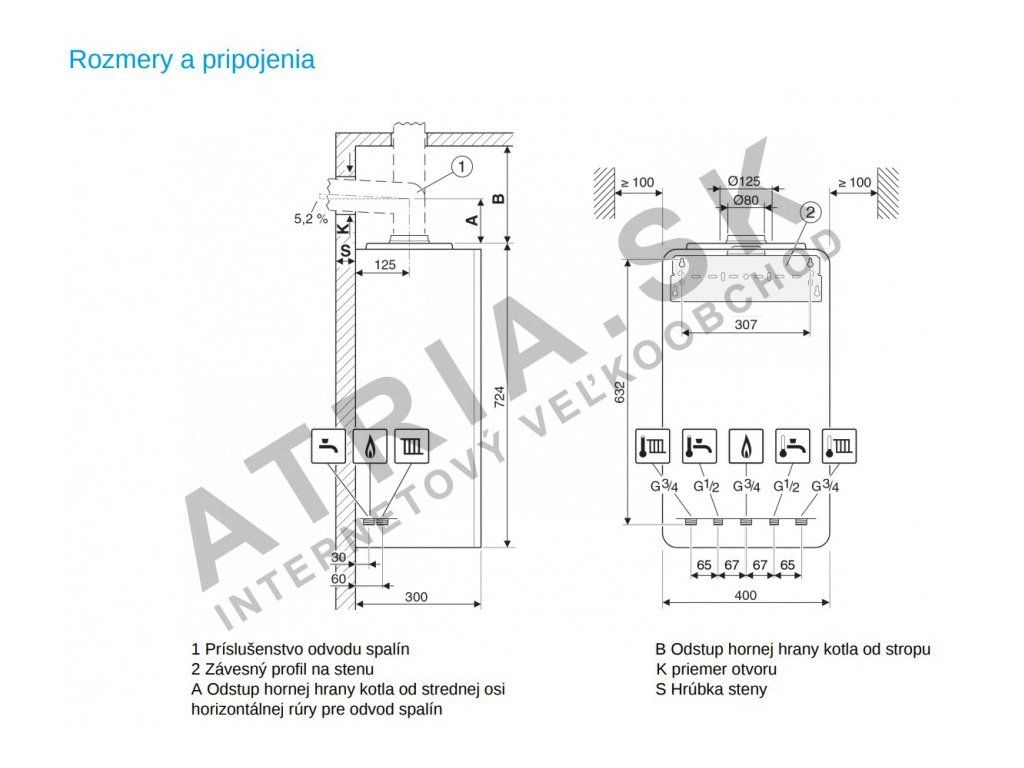

- Can be connected to a concentric flue gas / combustion air pipe Ø 60/100 mm or Ø 80/125 mm, or a separate Ø 80 mm pipe.
- Intelligent controller for 1 heating circuit and domestic hot water preparation
- Important functions can be set directly on the touch display, complete settings via the EasyControl app (for iOS, Android)
- Choice of display colour finish (white / black)
- Individual temperature setting in each room using smart thermostatic radiator heads
- Presence detection via GPS
- The controller cannot be combined with other controllers, e.g. CW 400
- On: hot water is available at any time
- Automatic: water is heated according to a time programme
- Off: the hot water function is switched off
Frequently Asked Questions
- How exactly do I choose the output of a BOSCH condensing boiler? The starting point is the calculated heat loss of the heated building (most reliably taken from the project documentation or an energy certificate). If you don't have a project, you can roughly estimate about 60-100 W per m² of floor area for a commonly insulated house built after 2000, or 100-150 W/m² for an older, uninsulated house - the exact figure varies depending on the number of floors, ceiling height, the number and quality of windows, and the building's orientation. A boiler oversized for its output switches on and off more often (so-called cycling), which shortens its service life and reduces efficiency; an undersized boiler, on the other hand, cannot heat the house sufficiently on frosty days.
- Why is a condensing boiler more economical than a conventional one? A condensing boiler additionally uses the heat hidden in the water vapour produced when gas is burned - in a conventional boiler this heat escapes unused through the flue, while in a condensing unit it is cooled below the so-called dew point, the vapour condenses, and the released heat is returned to the heating circuit. Thanks to this, condensing boilers achieve an efficiency of approximately 105-110% relative to the calorific value of the gas, compared to the usual 85-92% for conventional boilers.
- What type of flue does this boiler need? Most modern condensing boilers are so-called “turbo” units (with a sealed combustion chamber) and require a concentric (coaxial) or separate flue gas outlet and combustion air intake routed through an outer wall or the roof - so a functioning chimney is not needed. The exact type and maximum length of the flue (depending on the 60/100 or 80/125 mm diameter) can be found in the technical documentation for the specific model, or you can consult our customer service.
- What does the ErP energy class stated for the boiler mean? This is a mandatory efficiency label for heating appliances under the EU ErP (Ecodesign) directive, similar to the energy labels used for refrigerators. Condensing boilers commonly achieve class A, or even higher in combination with room controls (e.g. A+ when using weather-compensated control and a room thermostat).
- Can I install and connect this boiler myself? No. Connection to the natural gas supply, the electrical network, and the flue is by law reserved exclusively for a person with the appropriate qualification (usually an authorised service technician for the given brand or a certified gas appliance inspector). After installation, the boiler must be commissioned by the manufacturer's authorised service, which is usually also a condition for the warranty to be valid.
- What about servicing and the warranty? Most manufacturers require a regular annual service inspection by an authorised service provider in order for the warranty to remain valid even after its standard expiry (an extended warranty subject to regular servicing is common especially with the brands Vaillant, Protherm, and Viessmann). The exact warranty terms can be found in the warranty certificate supplied with the boiler.
- What is included in the delivery of this specific product? The exact package contents (the boiler itself, possibly a hot water tank, room controls, and other accessories in the case of a set) are stated in the product name and in its technical parameters above on this page.
Additional parameters
| Category: | Condensing boilers |
|---|---|
| Warranty: | 2 years |
| Weight: | 68 kg |
| EAN: | 4062321342180 |
| Automatic diagnostic system: | yes |
| Safety thermostat: | yes |
| Included accessories: | power cable, manual, warranty card |
| Electrical protection rating: | X4D |
| Electronic ignition: | Yes |
| Electronics: | Bosch |
| ? Expansion vessel: | 8-litre |
| Weight of empty boiler: | 44 kg |
| Upper boiler output: | 25,2 kW |
| Country of origin: | EU |
| Summer mode: | Yes |
| Condensate quantity: | 1,7 l/hod |
| Two-point control option: | no |
| Pump output adjustment option: | Yes |
| Option to convert to LPG: | Yes |
| Option to operate without a thermostat: | Yes |
| Option to connect a wireless thermostat: | Yes |
| Option to connect solar: | yes |
| Storage tank connection option: | yes |
| Extended warranty option: | yes |
| Boiler output adjustment option: | yes |
| Recommended heating filter: | Total filter 3/4" |
| Recommended controller: | Junkers CW 100 |
| Recommended solar set: | HEWALEX |
| Flue design: | TURBO |
| Power output curve: | modulated |
| Electrical voltage connection: | 230V |
| Concentric flue connection: | yes |
| Separate flue connection: | yes |
| DHW connection port: | 1/2" |
| Water connection port: | 3/4" |
| Dimensions: | 850 x 400 x 370 mm |
| Lower boiler output: | 3,3 kW |
| Boiler commissioning: | by a JUNKERS service technician |
| Boiler intended use: | with flow-through hot water heating |
| Permanent pilot flame: | no |
| Suitable for underfloor heating: | yes |
| DHW output: | 24 kW |
| Built-in water filter: | no |
| Boiler heating output: | high output above 16 kW |
| Manufacturer: | Bosch |
| EAN: | 4062321342180 |
| Gross weight: | 80 kg |
| Net weight: | 68 kg |
