CP45S Kit for A 45 Burner

Product detailed description

CP45S Kit for the ATMOS A 45 burner

This is a device designed for cleaning the combustion chamber of ATMOS A 25 and ATMOS A 45 burners when using lower-quality pellets, which tend to form clinker due to the bark and other impurities they contain. Together with the pellet burner, the device provides automatic cleaning, removing clinker and ash from the burner chamber at regular intervals or every time the burner finishes burning. Pneumatic burner cleaning is very fast, effective and reliable. If the customer requires that cleaning does not take place at night, a special timer switch must be purchased (ordinary timer switches available in shops cannot be used). The device is sold as a kit for converting the ATMOS A 25 or ATMOS A 45 burner to pellets. The ATMOS A 85 burner is always supplied already fitted with pneumatic cleaning.

Kit for pellet boilers with an induced-draught fan CP45S for the A 45 burner (basic kit)

For boilers: D 20 P, DCxxSP(X), CxxSP (A 25 burner),  D 30 P, D 31 P, D 40 P, D 50 P (A 45 burner).

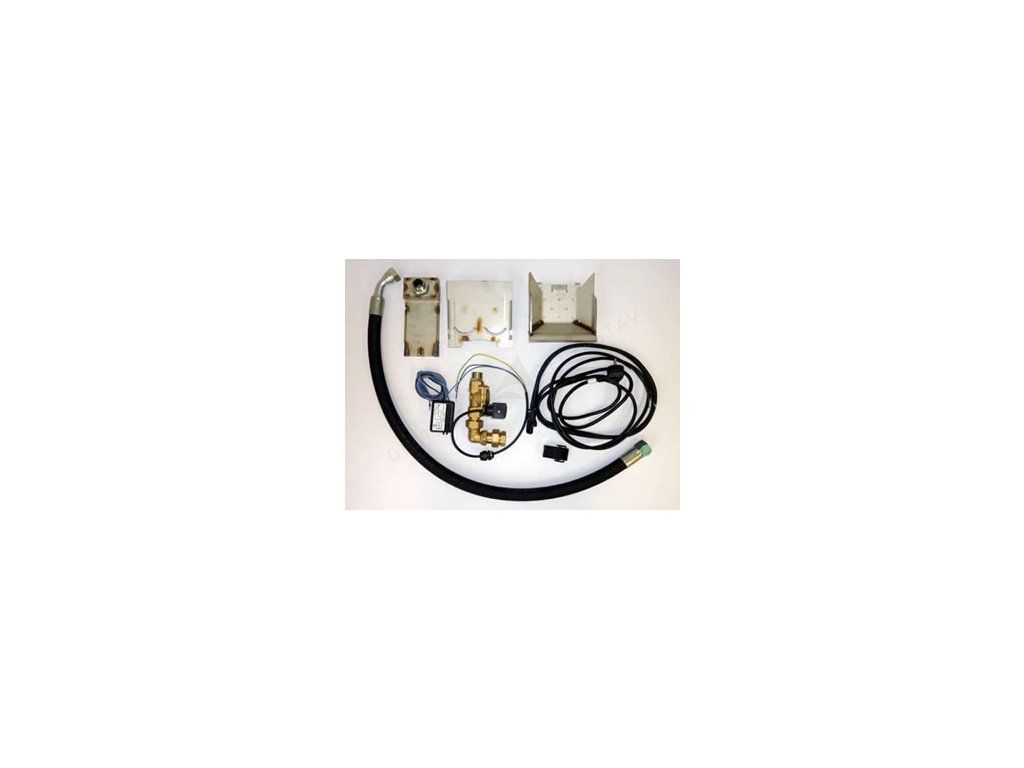

Kit contents:

• connecting air hose 1 m long (DN 28 mm) with 3/4" threaded fitting and control solenoid valve
• new ignition coil holder plate
• new combustion chamber
• pneumatic cleaning channel with locking nut and washer
• AD02 module for controlling the compressor via the reserve output R, R2

NOTE: Choose the basic kit without a compressor only if you already own a compressor with an air tank volume of 5 to 10 L that reaches a pressure of 5 – 8 bar (500 – 800 kPa). The compressor or air tank must be located in the immediate vicinity of the boiler and the basic pipe diameter must be maintained.
