Dražice OKC 180
Code: 110420801Related products
Product detailed description

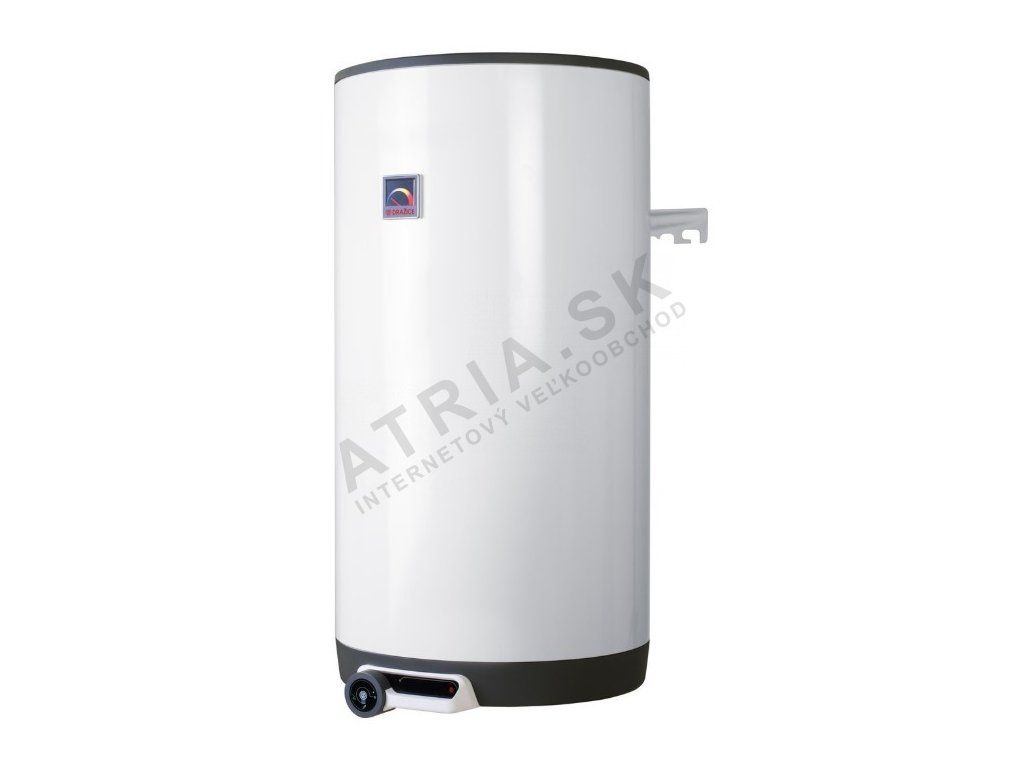

Combined vertical wall-mounted water heater, boiler Dražice OKC 180 for water heating
Working position - vertical (mounted on the wall)
Optional equipment:
- Circulation inlet
- Heating element with a power of 4 kW and connection 3 PE-N 400 V/50 Hz (price 72.99 EUR incl. VAT)
Main use:
- Preparation of domestic hot water for buildings with hot-water central heating on gas or solid fuels in the winter period.
- Heating with electric energy outside the heating season, with the possibility of using a low electricity tariff (night current).
Accessories:
- Safety valve
Combined storage water heaters designed for wall mounting with volumes of 80–200 litres. The manufacturer maintains the spacing of the anchor screws throughout the entire production history to make it easier to replace old heaters. It is also possible to buy a bracket for an anchor screw spacing of 350 mm.
Heating options:
Electric energy. Ceramic heating element controlled by an operating thermostat and protected by a safety thermostat (thermal fuse). Temperature range 5–74 degrees Celsius. Connection voltage 1-PE–N/AC 230 V/50 Hz. Electrical protection IP 45 allows the heater to be placed in zone 1 according to ČSN 33 2000–7–701.
Heat exchanger. The heater can be connected to an external hot-water source with a max. temperature of 110 degrees Celsius and pressure of 1 MPa. Depending on the power of the source, a heater with a corresponding heat exchanger power must be selected. The heat exchanger works in forced circulation as well as in a gravity system. The heating water control sensor can be inserted into a common sleeve with the electrical installation sensors.
<td style="border-top-style: none; border-right-style: none; border-bottom-style: none; border-left-style: none; border-width: initial; border-color: initial; margin-top: 0px; margin-right: 0px; margin-bottom: 0px; margin-left: 0px; padding-top: 0.4em; padding-right: 0.8em; padding-bottom: 0.4em; padding-left: 0.8em; vertical-align: top; background-color: rgb(243, 244, 239); color: rgb(
|
Type |
OKC 80 | OKC 100 | OKC 125 | OKC 160 | OKC 180 | OKC 200 |
|---|---|---|---|---|---|---|
| Volume [l] | 75 | 95 | 120 | 147 | 175 | 195 |
| Maximum operating pressure of the tank [MPa] | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 |
| Voltage [V] | 230 | 230 | 230 | 230 | 230 | 230 |
| Power input [W] | 2 000 | 2 000 | 2 000 | 2 000 | 2 200 | 2 200 |
| Electrical protection | IP 45 | IP 45 | IP 45 | IP 45 | IP 45 | IP 45 |
| Heater height [mm] | 736 | 881 | 1 046 | 1 235 | 1 200 | 1 300 |
| Heater diameter [mm] | 524 | 524 | 524 | 524 | 584 | 584 |
| Maximum weight of heater without water [kg] | 42 | 52 | 58 | 66 |
Additional parameters
| Category: | combined wall-mounted vertical - OKC |
|---|---|
| Warranty: | 2 years |
| Weight: | 10 kg |
