Dražice OKC 200
Code: 110720801Related products
Product detailed description

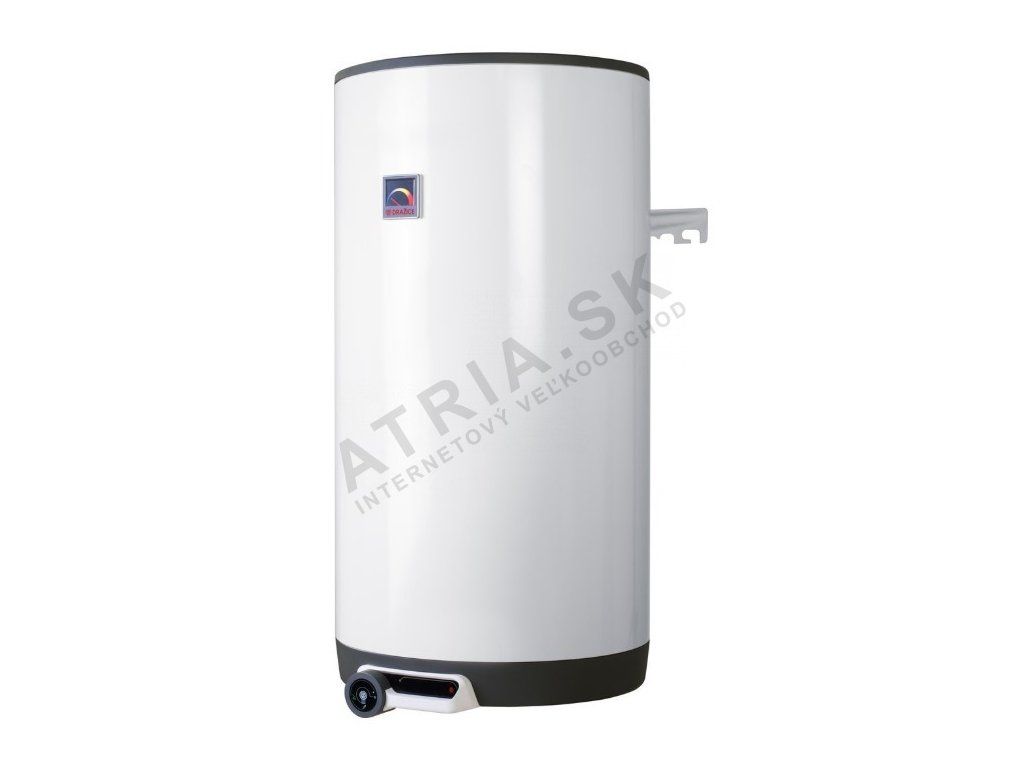

Combined vertical wall-mounted water heater, boiler Dražice OKC 200 for water heating
- Combined storage water heater designed for vertical wall mounting with a volume of 75 l.
- Domestic hot water preparation for buildings with hot-water central heating on gas or solid fuels during the winter season.
- Heating by electric energy outside the heating season, with the possibility of using a low electricity tariff (night current).
- Heating options:
- By electric energy:
- Heating is provided by a ceramic heating element controlled by an operating thermostat and protected by a safety thermostat (thermal fuse).
- During heating, the ceramic element is controlled by a thermostat, on which the desired temperature can be continuously set (in the range of 5 to 74 °C).
- By heat exchanger:
- In combined water heaters, a heat exchanger is welded into the pressure vessel.
- This exchanger is intended only for the heating circuit.
- The water heater can be connected to an external hot-water source with a max. temperature of 110 °C.
- The water heater tank is made of steel sheet and tested at an overpressure of 0.9 MPa.
- The interior of the tank is enamelled.
- We recommend using the product indoors with an air temperature of +2 °C to 45 °C and a relative humidity of max. 80%.
Recommendations before wall mounting:
- The manufacturer has maintained the spacing of the anchor bolts throughout the entire production history for easy replacement of old water heaters.
- Before installation it is necessary to check the load-bearing capacity of the wall and, depending on the type of masonry, choose a suitable anchoring material, or reinforce the wall if necessary.
- Install the water heater only in a vertical position so that the lower edge of the water heater is located at least 600 mm above the floor.
- Due to the various types of load-bearing masonry and the wide range of special anchoring materials available on the market, the manufacturer does not supply water heaters with this material.
- The anchoring system must be chosen individually, according to the conditions.
- We recommend entrusting the wall mounting and anchoring to a professional company.
|
Type |
OKC 80 | OKC 100 | OKC 125 | OKC 160 | OKC 200 |
|---|---|---|---|---|---|
| Volume [l] | 75 | 95 | 120 | 147 | 195 |
| Maximum operating pressure of the tank [MPa] | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Voltage [V] | 230 | 230 | 230 | 230 | 230 |
| Power input [W] | 2 000 | 2 000 | 2 000 | 2 000 | 2 200 |
| Electrical protection | IP 45 | IP 45 | IP 45 | IP 45 | IP 45 |
| Water heater height [mm] | 736 | 881 | 1 046 | 1 235 | 1 300 |
| Water heater diameter [mm] | 524 | 524 | 524 | 524 | 584 |
| Maximum weight of the water heater without water [kg] | 42 | 52 | 58 | 66 | 81 |
| Heating time with electric energy from 10 °C to 60 °C [hours] | 2.5 | 3 | 3.8 | 5 | 5.5 |
| Heating time with heat exchanger from 10 °C to 60 °C [min] | 32 | 48 | 55 | 75 | 86 |
| Heat loss/energy efficiency class [kWh/24 hours] | 0.71/C | 0.88/C | 1.09/C | 1.39/C | 1.4/B |
Additional parameters
| Category: | combined wall-mounted vertical - OKC |
|---|---|
| Warranty: | 2 years |
| Weight: | 81 kg |
| The item has been sold out… | |
