Dražice OKC 80
Code: 1101208101Related products
Product detailed description

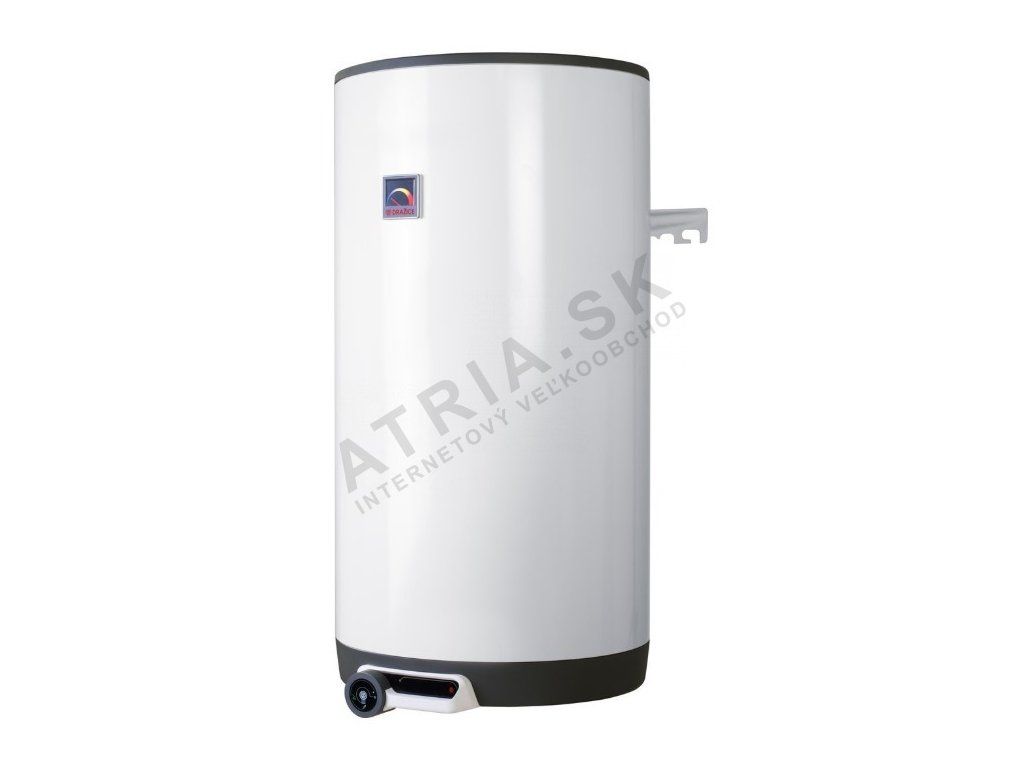

Water heater, combined wall-mounted vertical boiler Dražice OKC 80 for water heating
- Combined storage heater intended for vertical wall mounting with a volume of 75 l.
- Preparation of domestic hot water for buildings with hot water central heating on gas or solid fuels during the winter period.
- Heating by electric energy outside the heating season with the possibility of using low-rate electricity (night tariff).
- Heating options:
- By electric energy:
- Heating is provided by a ceramic heating element controlled by an operating thermostat and protected by a safety thermostat (thermal fuse).
- The ceramic element is controlled by a thermostat during heating, on which the desired temperature can be smoothly adjusted (in the range of 5 to 74 °C).
- By heat exchanger:
- In combined heaters, a heat exchanger is welded into the pressure tank.
- This heat exchanger is intended only for the heating circuit.
- The heater can be connected to an external hot water source with a maximum temperature of 110 °C.
- The heater tank is made of steel sheet and pressure tested at 0,9 MPa.
- The inside of the tank is enamelled.
- We recommend using the product in an indoor environment with an air temperature of + 2 °C to 45 °C and a relative humidity of max. 80%.
Recommendations before wall mounting:
- The spacing of the anchor bolts is maintained by the manufacturer throughout the entire production history for easy replacement of used heaters.
- Before installation it is necessary to check the wall load capacity and choose the appropriate anchoring material according to the type of masonry, or to reinforce the wall if necessary.
- Install the water heater only in a vertical position so that the lower edge of the heater is placed at least 600 mm above the floor.
- Due to the various types of load-bearing masonry and the wide range of special anchoring materials available on the market, the manufacturer does not supply the heaters with this material.
- The anchoring system must be selected individually, according to the conditions.
- We recommend that the wall mounting and anchoring be carried out by a professional company.
|
Type |
OKC 80 | OKC 100 | OKC 125 | OKC 160 | OKC 200 |
|---|---|---|---|---|---|
| Volume [l] | 75 | 95 | 120 | 147 | 195 |
| Maximum operating pressure of the tank [MPa] | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 |
| Voltage [V] | 230 | 230 | 230 | 230 | 230 |
| Power [W] | 2 000 | 2 000 | 2 000 | 2 000 | 2 200 |
| Electrical protection | IP 45 | IP 45 | IP 45 | IP 45 | IP 45 |
| Heater height [mm] | 736 | 881 | 1 046 | 1 235 | 1 300 |
| Heater diameter [mm] | 524 | 524 | 524 | 524 | 584 |
| Maximum weight of the heater without water [kg] | 42 | 52 | 58 | 66 | 81 |
| Heating time by electric energy from 10 °C to 60 °C [h] | 2,5 | 3 | 3,8 | 5 | 5,5 |
| Heating time by heat exchanger from 10 °C to 60 °C [min] | 32 | 48 | 55 | 75 | 86 |
| Heat losses/energy efficiency class [kWh/24 h] | 0,71/C | 0,88/C | 1,09/C | 1,39/C | 1,4/B |
Frequently asked questions
- What tank volume should I choose? A typical estimate of consumption is about 40-50 liters of hot water (at about 40-45 °C) per person and day at standard consumption (showering, hand washing); for bathtub use or a larger number of bathrooms/outlets, a higher volume is needed. When choosing, also consider whether the tank will be heated by a high-performance boiler (faster heating, a smaller volume may be sufficient) or, for example, only by a solar system (where a larger volume for heat accumulation during the day is more beneficial).
- Can I connect this DRAŽICE tank to an existing boiler? In most cases yes, but you should verify the compatibility of the hydraulic connection (dimensions and type of connections) and whether your boiler supports the control of the tank heating (a temperature sensor in the tank and possibly a switching valve are needed) - these details can be found in the product technical parameters or our customer service can advise you.
- Where and how should the tank be placed? The tank should be placed as close as possible to the heat source (boiler) to minimize heat losses in the connecting piping, but also with sufficient space around for service access (anode replacement, inspection of the safety valve).
- Must the installation be done by a professional? The hydraulic connection to the water supply and to the heat source, including the installation of a safety valve at the correct pressure, is always recommended to be carried out by a heating engineer/plumber - an incorrectly installed or missing safety valve represents a safety risk.
Additional parameters
| Category: | combined wall-mounted vertical - OKC |
|---|---|
| Warranty: | 2 years |
| Weight: | 41 kg |
| Heating options: | Electricity |
