Dražice OKCE 180

Code: 110410801
Not rated Rating details
426,39 € –20 %
Zásobník teplej vody Dražice OKCE 180
426,39 € –20 % 337,83 € / pcs 274,66 € excl. VAT Measure price:
International delivery
Sale ended or currently unavailable
The item has been sold out…

Detailed information

Product detailed description

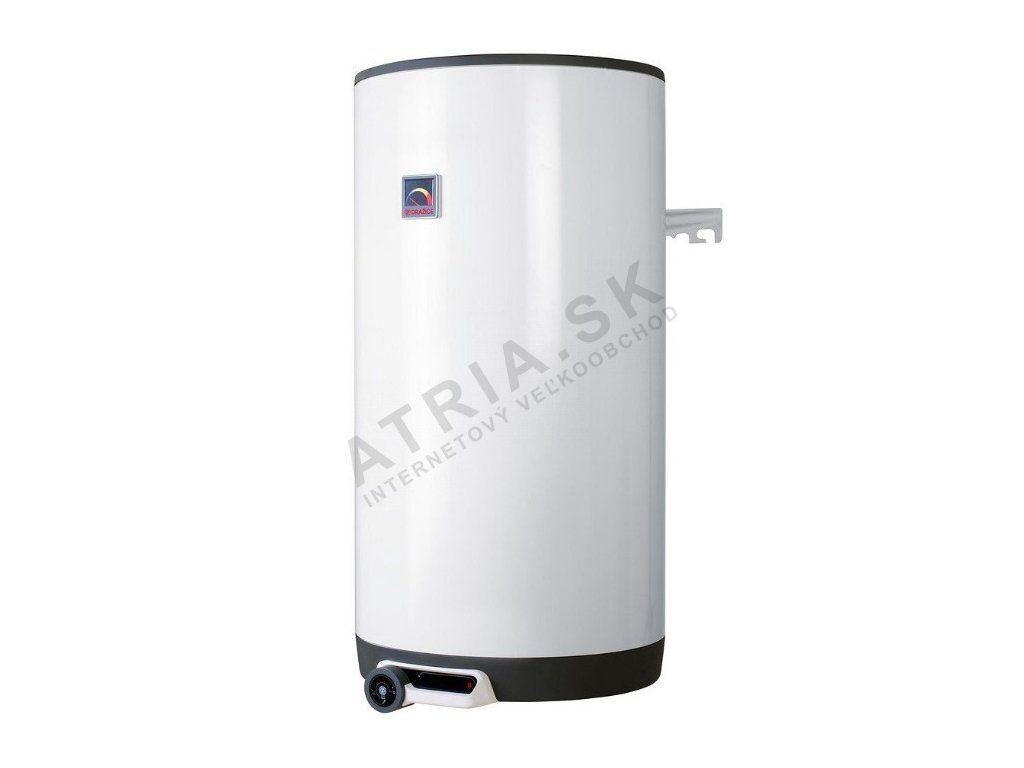

Electric round water heater, boiler Dražice OKCE 180

 Working position – vertical (wall-mounted)

Optional equipment:

  • Circulation inlet
  • Heating element with an output of 4 kW and connection 3 PE-N 400 V/50 Hz  (included in the price for 72.99 EUR with VAT)

Main use:

  • Preparation of domestic hot water in buildings with the possibility of using a low electricity tariff (night current).

Accessories:

  • Safety valve



Electric storage water heaters designed for wall mounting with volumes of 50–200 liters. The manufacturer maintains the spacing of the mounting screws throughout the entire production history to make it easier to replace old water heaters. It is also possible to purchase a bracket for a mounting screw spacing of 350 mm.

Heating is provided by a ceramic heating element controlled by an operating thermostat and protected by a safety thermostat (thermal fuse). Temperature range 5–74 °C. Connection voltage 1-PE–N/AC 230 V/50 Hz. Electrical protection IP 45 allows the water heater to be placed in zone 1 according to ČSN 33 2000–7–701.



Type OKCE 50 OKCE 80 OKCE 100 OKCE 125 OKCE 160 OKCE 180 OKCE 200
Volume [l] 51 80 100 125 152 180 200
Maximum operating pressure of the tank [MPa] 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Voltage [V] 230 230 230 230 230 230 230
Power input [W] 2 000 2 000 2 000 2 000 2 000 2 200 2 200
Electrical protection IP 45 IP 45 IP 45 IP 45 IP 45 IP 45 IP 45
Water heater height [mm] 561 736 881 1 046 1 235 1 200 1 300
Water heater diameter [mm] 524 524 524 524 524 584 584
Maximum weight of water heater without water [kg] 30 36 42 48 58 72 76
Heating time with electric energy from 10 °C to 60 °C [hours] 1.5 2.5 3 3.8 5 5 5.5
Heat losses/energy efficiency class [kWh/24 hours] 0.45/C 0.71/C 0.88/C 1.09/C 1.39/C 1.39/C

1.4/B

Additional parameters

Category: electric round water heaters - OKCE
Warranty: 2 years
Product replaced by new one: https://www.atria.sk/quadroflex-bch-120/
The item has been sold out…

Product rating

Be the first who will post an article to this item!

Do not fill out this field

How would you rate this product? Choose 1 to 5 stars, where 1 is the worst and 5 is the best rating.

Discussion

Do not fill out this field

List of discussions

ŠI Avatar of author 20/01/2022 20:02
Dobrý deň, píšete, že môže mať aj cirkulačny okruh, ako sa označuje,alebo ako si ho u Vás vyžiadať.
A Avatar of author 23/01/2022 10:33
Dobrý deň, ospravedlňujem sa Vám, ale na toto neviem presne odpovedať. Odporúčam kontaktovať priamo firmu Dražice. Pekný deň prajem.

About the company

Družstevní závody Dražice are the largest manufacturer of water heaters in the Czech Republic, known throughout Europe. Their products are exported to 25 countries around the world. Dražice water heaters are highly sought after by Czech customers, as evidenced by a dominant market share of 50%. The core activity of DZ Dražice is the production and sale of water heaters. These include models in vertical, horizontal, stationary, electric, and combined configurations with capacities ranging from 5 l to 1000 l. In addition, there are also indirect heating stationary storage tanks (heat exchangers) with capacities from 100 l to 1000 l. Another important part of the company's activity is the production of indirect heating water tanks for gas boiler manufacturers.

The goal of DZ Dražice is to strengthen its leading position in the Czech Republic and to rank among the best European companies in the industry. A solid foundation is therefore the excellent tradition and quality of our products, responsible and perfect customer service, and the company's reputation as being responsible towards the environment.

About DZ Dražice

History

1900

The future cooperative enterprise was born: widow Marie Kyselová contributed a grain mill to the company's assets, thus creating a limited liability company named "Grain Storage, Artistic Rolling Mill and Bakery" in Dražice nad Jizerou.

1910–1917

The new management, led by Václav Čančík, following the recommendation of Professor of Prague Technology Ing. Karel Novák, turned to the very promising production and distribution of electrical energy. In 1910, a hydroelectric power plant with two turbines of 300 HP was built. In 1917, 69 municipalities with 8,111 consumers were connected to the Dražice power plant.

1926–1939

The company reached its peak in the second half of the 1920s. It employed 220 workers and owned eight hydroelectric power plants on the Jizera River, a steam power plant, two mills, and a distribution network serving 383 municipalities with 24,080 users. The turnover in 1930 amounted to an impressive three quarters of a billion CZK at that time.

1948

After the forced sale of the distribution networks and subsequent nationalization of a significant part of the cooperative's assets, the company reoriented itself towards products and services for the population, focusing on household and sports use.

1956

One of the programs became the contract production of water heaters under the leadership of former craftsman Mr. Křovák.

1972–1989

In the course of 1972, the development of a combined water heater was completed and introduced into mass production. By the end of the 1980s, Družstevní kombinát Dražice was producing about 13,000 combined water heaters annually and employed approximately 50 workers in this area.

1989–1992

After the political change in 1989, the cooperative was divided into separate commercial companies. One of these companies is the private company Družstevní závody Dražice–strojírna, s.r.o., which took over the production of water heaters.

1992–2003

During this period, there was a rapid development in the production of water heaters. The product range was expanded, technologies were modernized, and production continuously increased. A major modernization took place at the end of 1997 with the construction of a new enameling line. The company became the largest seller of water heaters in the country and began expanding its exports from 1994. The company exports to 16 countries across Europe. In 2003, the company produced 95,000 water heaters and employed 190 workers.

2004–2005

In 2004, a new hall was built as a preparation for the construction of a new enameling kiln. This kiln was built in the summer of 2005 and allowed the company to increase the capacity of the enameling process and improve the enameling procedure. In 2005, the product range was also expanded to include storage tanks, and by the end of the year, new types of rectangular water heaters D-LUX were prepared. In the last year, the company produced 115,000 water heaters and employed 210 workers. In the future, further increases in production capacity, expansion of the product range, and modernization of the existing product range are planned.

2006

In 2006, 100% of the shares of the company Družstevní závody Dražice – strojírna s.r.o. were transferred to the Swedish company NIBE Industrier AB, which thus became the sole owner of DZ Dražice.

2007–2009

During the summer, the company expanded to two assembly lines, increasing production capacity to 150,000 units per year. DZ Dražice also began offering heat pumps under the NIBE brand.

2011

In 2011, a hybrid heater with the possibility of connecting to photovoltaic panels was added to the product range. A heater with intelligent control and many functions OKHE SMART was also introduced.

2014

In September 2014, the new model of the water heater OKHE SMART EVO 3 with smartphone control was presented at the FOR THERM fair.

2016

Since 2016, we have been producing a new range of heaters OKHE and OKCE, and the functions of OKHE SMART have been further improved.

2018

The range of electric water heaters was expanded in 2018 with a flat version – OKHE ONE. Its depth is only 30 mm, making it suitable for installation in confined spaces or areas with limited depth of installation.

2020

This year was marked by the introduction of new small-volume heaters TO in models 5.1 and 10.1. They won two gold medals in the Czech Made competition organized by the Czech Association.

Research and Development

In 2016, the company spent 1,079 thousand CZK on research and development. After the successful launch of the new generation of electric water heaters with electronic regulation OKHE SMART into mass production in the second half of 2015, the year 2016 was significant for DZD in the field of research and development, with the introduction of the new generation of electric OKCE into mass production, which was achieved during the spring months of 2016. Water heaters of the OKCE series account for approximately 50% of the total production.

In the near future, the completion of the development of completely new flat heaters and the start of their serial production are planned. Another priority in the field of research and development in 2017 is the completion of the development of heat storage tanks with higher volumes. Both of these activities will lead to an expansion of the DZD product portfolio.
