Atmos DC0174 Combustion Chamber Side Brick

Product detailed description

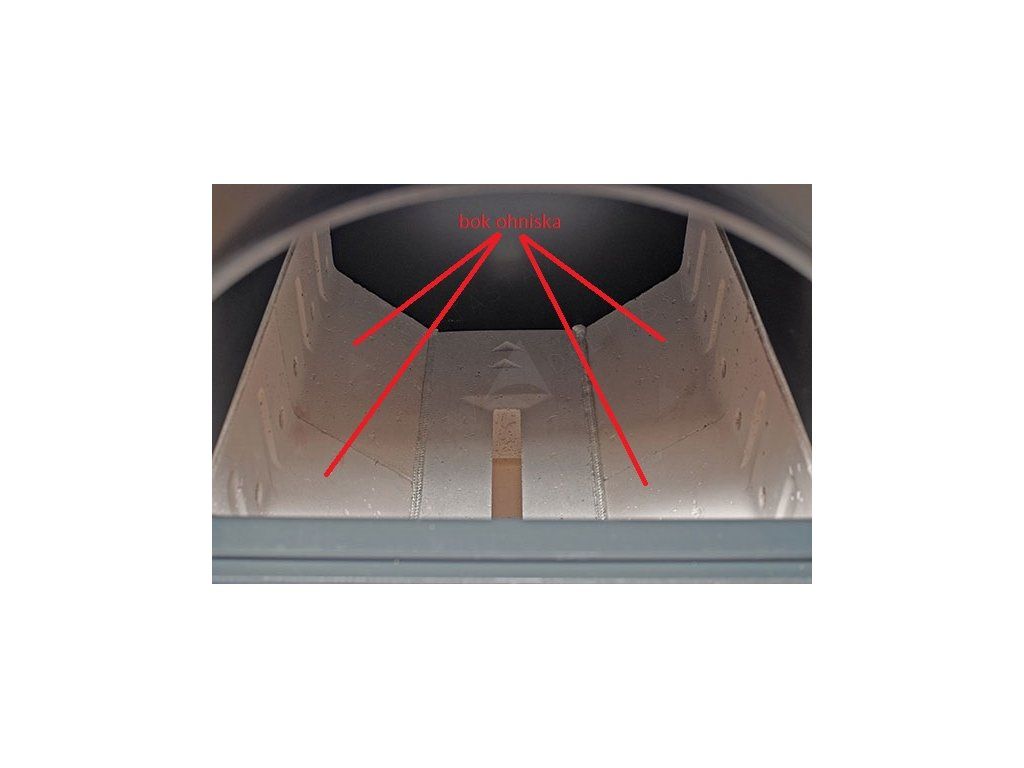

ATMOS DC0174 ceramic combustion chamber side brick

Code DC0174 designates an original ceramic side brick from the upper loading chamber of ATMOS boilers. It belongs to the group of ceramic parts of the combustion chamber.

Which boilers it is intended for

• DC25GS – only boilers manufactured from 1.1.2017
• GS25 – only boilers manufactured from 1.1.2017
• DC25GSE – only boilers manufactured from 15.4.2012
• DC25GD
• DC25GSP(L)

Basic data

Related parts

The combustion chamber gasket and sealant are not included in the package. The gasket S0951 belongs with this side brick, and V0345 can be used as the sealant.

Older year of manufacture – different part

For DC25GS and GS25 boilers manufactured up to 31.12.2016, the side brick DC0162 is used. For the DC25GSE boiler manufactured up to 14.4.2012, the side brick DC0177 is intended. Before ordering, therefore, check the boiler type as well as the date of manufacture.

Frequently asked questions

• How do I choose the right output for a solid fuel boiler? Start from the calculated heat loss of the heated building. However, with wood/coal boilers also consider that during a single load the boiler burns for several hours at essentially constant output - which is why it is common practice to add an accumulation tank to the boiler, which stores the surplus heat for later use instead of the boiler having to be throttled down inefficiently.
• What else do I need to install this boiler? Besides the boiler itself, the system generally requires: an accumulation (buffer) tank of suitable volume, a circulation pump (often already with a built-in Laddomat or a thermostatic valve protecting the boiler against low-temperature corrosion), a safety valve, an expansion vessel, and a flue/chimney with sufficient draught matching the boiler output - you will find the exact chimney draught values in the technical parameters above.
• Which fuel is suitable and which is not? Use exclusively the fuel recommended by the manufacturer for the given model (usually log wood of defined length and moisture content, or brown coal briquettes or coal depending on the boiler type) - unsuitable or too moist fuel reduces efficiency, increases the formation of tar and deposits, and can cause damage to the boiler.
• What about the chimney inspection and legislation? Before the boiler is put into operation, and also regularly during its use (usually once a year for solid fuels), an inspection/sweeping of the chimney by an authorised chimney sweep is required by law - without the relevant inspection report, an insurance claim in the event of a fire may also be disputed.
• How much maintenance does the boiler require? It usually includes regular removal of ash and cleaning of the heating surfaces/flue gas passages from soot (the interval depends on the intensity of use, usually in the order of weeks), and once a year a thorough inspection including the gaskets and the chimney.
• Can I install the boiler myself? The positioning and connection of the boiler to the heating system, the chimney and the safety components should be carried out, or at least professionally checked, by a heating technician - it is an appliance with an open fire, high temperatures and pressure components, where a mistake in the connection can be a safety risk.
