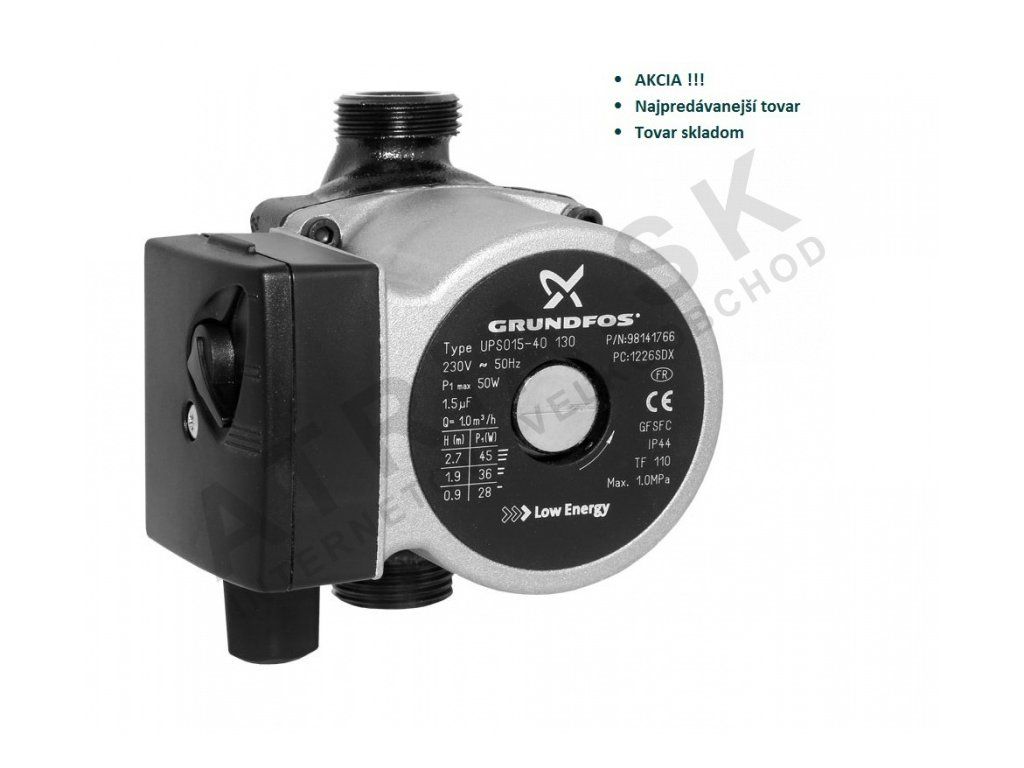

GRUNDFOS UPS 15/40 130mm
Code: 96281368Related products
Product detailed description
GRUNDFOS UPS 15/40 circulation pumps for driving the medium in a closed central heating system
Colour: grey-black
Technical parameters:
- Number of speeds: 3
- Max. head: 40 dm
- Temperature class TF: 110
- Max. operating pressure 10 bar
Materials:
Installation:
- Max. ambient temperature at 80 ° C liquid temperature 40 ° C
- Max. operating pressure 10 bar
- Pipe connection: G 1
- PN for pipe connection: PN 10
- Distance between suction and discharge port: 130 mm
Liquid:
- Liquid temperature range 2 .. 110 ° C
Electrical data:
- Power consumption at speed 1: 50 W
- Power consumption at speed 2: 60 W
- Power consumption at speed 3: 70 W
- Mains frequency: 50 Hz
- Rated voltage: 1 x 230 V
- Current at speed 1: 0.22 A
- Current at speed 2: 0.27 A
- Current at speed 3: 0.3 A
- Capacitor size - operating: 2.5 mF
- Enclosure (IEC 34-5): 44
- Insulation class (IEC 85): F
- Motor protection: NONE
- Thermal protection: IMP
- Control unit:
- Terminal box position: 9H
Other:
- Net weight: 2.3 kg
- Gross weight: 2.5 kg
- Shipping volume: 0.004 m3
