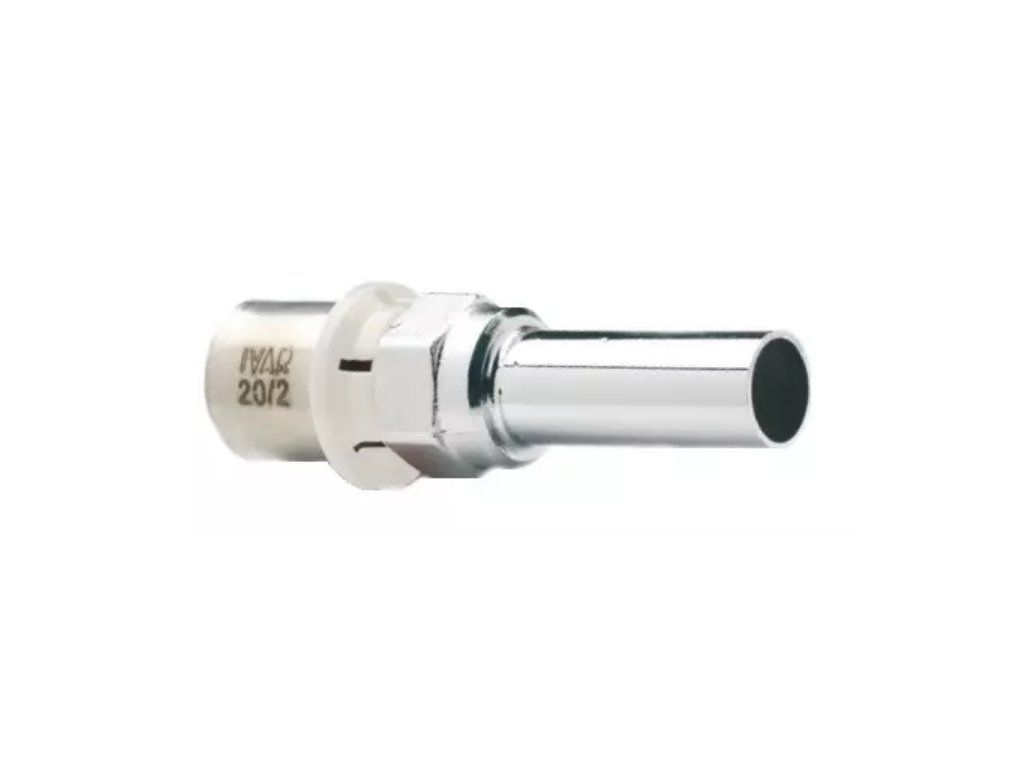

Press Nipple - copper - Cu 22x26
Code: 510067Related products
Product detailed description
Press nipple - copper, IVAR.PT 5702, size: 22 x 26, packaging: 5 per bag / 100 per box
- PN 10, T = +120 °C
- for connecting ALPEX pipe to Cu pipe by pressing or with an IVAR.TR 4430 compression fitting
- material: nickel-plated brass CW617N, stainless steel sleeve, EPDM seal
- sealed with an O-ring
Frequently asked questions
- What tools do I need to install this fitting? Press fittings require specialised pressing pliers with the correct jaw type (commonly designated B, F, or TH depending on the system) matching the size and type of the fitting - without the right tool the joint cannot be made or checked.
- How do I know the joint has been pressed correctly? Quality press fittings have a pressing indicator (e.g. a sealing O-ring that leaks if the pressing is incomplete) - before embedding the joint in a wall or screed, a pressure test of the entire system should always be carried out.
- Can the joint be taken apart after pressing? No, unlike a screwed (compression) fitting, a pressed joint is permanent and taking it apart requires cutting out the fitting and replacing it with a new one.
- Must installation be carried out by a professional? Yes, pressing fittings requires professional skill and correctly calibrated tools - we recommend leaving this to a heating engineer/plumber, especially for joints that will be embedded in a wall or screed with no possibility of later inspection.
Additional parameters
| Category: | straight press couplings - copper |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.153 kg |
| EAN: | 510067 |
| Material type: | CW617N nickel-plated brass |
| Operating temperature: | +120 °C |
| Nominal pressure: | PN 10 |
| Last price update: | 13.04.2026 1:07:03 |
-
(347 kB) Technical Data Sheet
-
(663 kB) Declaration
-
(2,77 MB) Declaration
-
(1,44 MB) Instructions for Use
Product rating
Be the first who will post an article to this item!
Discussion
List of discussions
L
Liam
Liam
Hi, our plumber said we need a press fitting to connect 22mm copper pipe to a 26mm section in our heating system. Is this the right part for that, or are we looking at the wrong thing?
A
ATRIA.SK
ATRIA.SK
Yes, that's exactly what this fitting is for – it connects a 22mm copper pipe on one side to a 26mm on the other, using the press (crimp) method. So no soldering needed, which makes the job quicker and cleaner. Just make sure your plumber has a press tool that works with copper press fittings in these sizes.
