Protherm Ray 24KE
Code: 0010023676Related products
Product detailed description

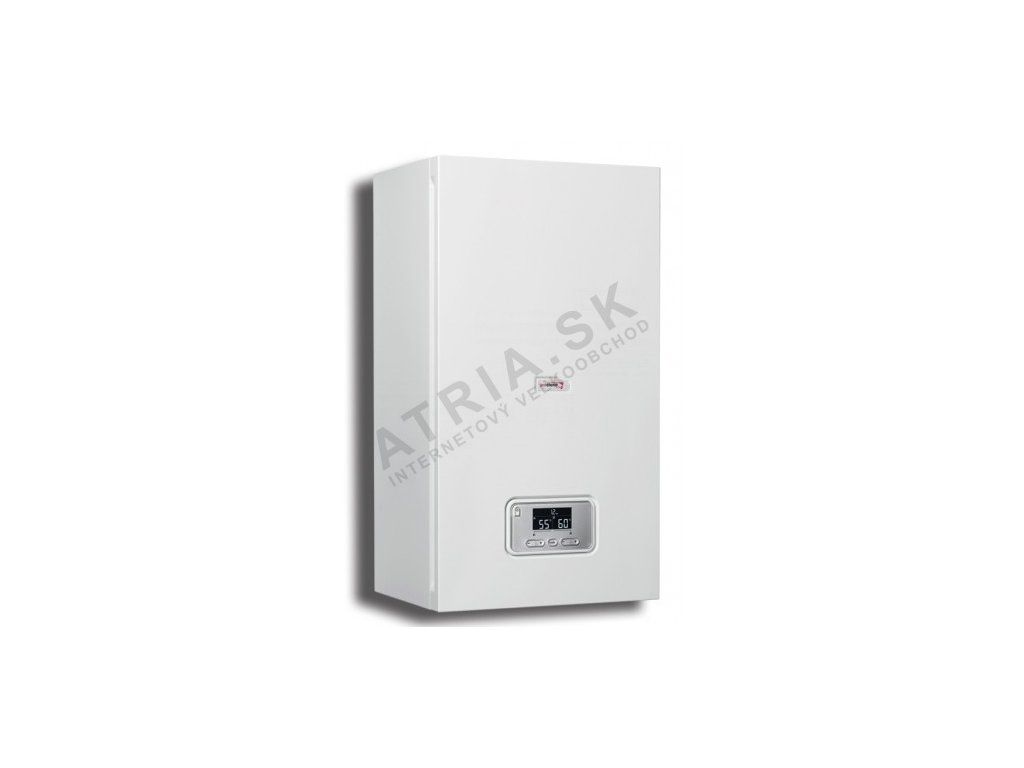

Protherm Ray 24KE
- suspended electric electric boiler with built-in eBUS for heating
- with the possibility of preparing DHW in an external storage tank
- power: & nbsp; 2.0 - 24 kW
You will know as PROTHERM RAJA 24K .
New electric boilers RAY > with integrated eBUS bus represent an easy way of heating with intelligent control in cooperation with a wide range of eBUS control systems Protherm. & nbsp;
| Ray 24KE < / strong> | |
| Power | 24 kW |
| Number and output of radiators | 4 x 6 kW | < / tr>
| Minimum power level | 2 kW |
| 99% | |
| Adjustable VV temperature range | 25 - 85 ° C |
| Adjustable TV temperature range | 35 - 70 ° C * |
| Expansion vessel | 8 l |
| Min / max. working pressure | 80/300 kPa |
| ErP Class | D |
| Electrical parameters | |
| Voltage / Frequency | 3 x 230 V / 400 V, 50 Hz |
| Possibility of connection to 1 phase | - |
| Electrical protection | IP40 |
| Rated circuit breaker current | 40 A |
| Dimensions | |
| Dimensions (width / height / depth ) | 410/740/310 mm |
| Weight without water | 27 kg |
Additional parameters
| Category: | Protherm Raja/Ray |
|---|---|
| Warranty: | 2 years |
| Weight: | 30.1 kg |
| EAN: | 8586018273473 |
| EAN: | 8586018273473 |
| Package dimensions (mm): | 458 x 798 x 356 |
-
(233 kB) Brochure with technical parameters
-
(600 kB) Declaration of Conformity
-
(3,60 MB) Installation Instructions
-
(1,26 MB) Operating Instructions
-
(240 kB) Design Documentation (1.2 MB)
-
(7,19 MB) Installation Instructions (3.6 MB)
-
(192 kB) Brochure (670.6 kB)
-
(240 kB) Design Documentation (1.6 MB)
-
(861 kB) Connection Dimensions kotla (312.3 kB)
-
(302 kB) Certificate (958 kB)
