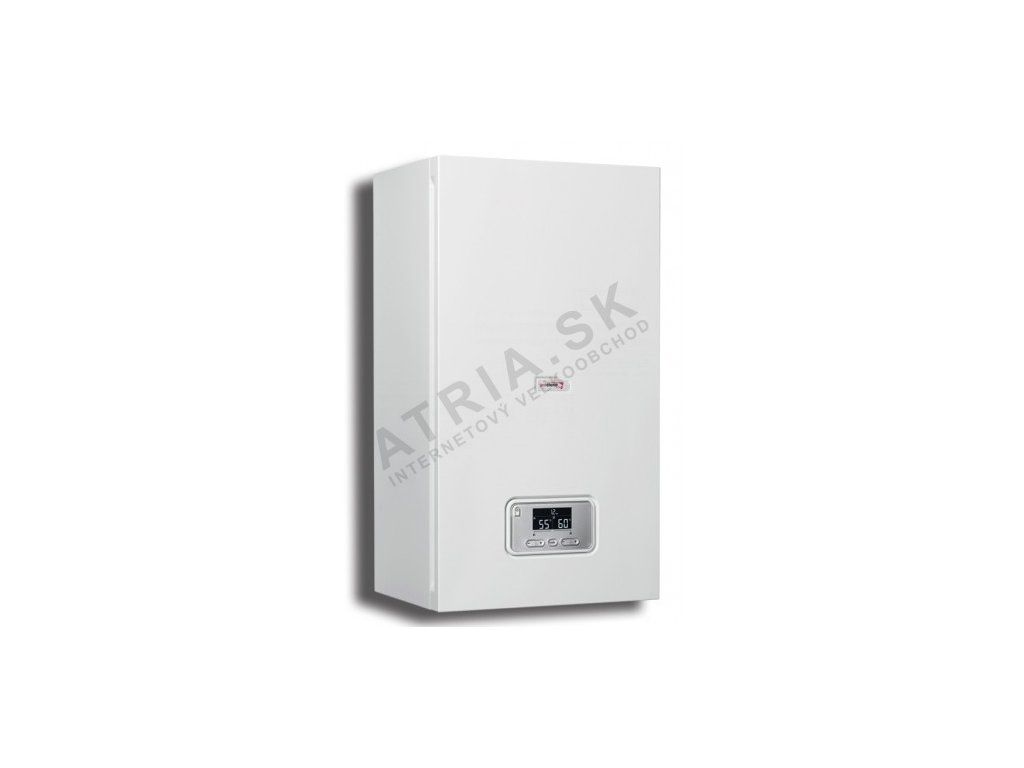

Protherm Ray 6KE
Code: 0010023670Related products
Product detailed description
- suspended electric electric boiler with built-in eBUS for heating
- with the possibility of preparing DHW in an external storage tank
- output: & nbsp; 1.0 < span style = "color: # 33cccc;"> & nbsp; - 6 kW
• for insulated houses with an area of 80m² - 150m² , we recommend boilers with a heating output < strong> 6kW - 9kW - 12kW - 14kW - 18kW
• for houses with an area of 150m² - 180m² we recommend: 21kW - 24kW - 28kW > & nbsp;
Parameters
| Ray 6KE | |
| Power | 6 kW |
| Number and output of radiators | 2 x 3 kW |
| Minimum power level < / td> | 1 kW |
| Efficiency | 99% |
| Adjustable DHW temperature range | 25-85 ° C |
| Adjustable TV temperature range | < td style = "text-align: center;"> 35 - 70 ° C *|
| Expansion vessel | 8 l |
| Min / max. working pressure | 80/300 kPa |
| ErP Class | D |
| Electrical parameters | |
| Voltage / Frequency | 3 x 230 V / 400 V, 50 Hz |
| Possibility of connection to 1 phase | yes |
| Electrical protection | IP40 |
| Rated circuit breaker current | 10 A |
| Dimensions | |
| Dimensions (width / height / depth ) | 410/740/310 mm |
| Weight without water | 24 kg |
& nbsp;
Frequently Asked Questions
- How do I choose the right output for a PROTHERM electric boiler? As with gas boilers, base your choice on the calculated heat loss of the heated building. For electric boilers it is additionally essential to check whether the capacity of your home’s (or flat’s) electrical connection allows it - higher outputs (roughly from 12 kW upwards) usually require a three-phase 400 V connection and a correspondingly sized main circuit breaker, which will be confirmed by an inspection technician or directly by your electricity distributor.
- Is an electric boiler worth it compared to a gas or solid-fuel boiler? An electric boiler has the lowest purchase price and the simplest installation (no flue is needed, since nothing is combusted), but running costs for electricity are usually higher than for gas or wood/coal for the same amount of heat delivered. It is particularly suitable where gas is not available, as a supplementary/backup source, or for a building with low consumption (well-insulated new builds, cottages, flats).
- How does an electric boiler regulate its output? Most models switch individual heating elements on/off in stages, while some more modern models also allow smoother output modulation - this affects the smoothness of heating and, to some extent, the lifespan of the switching components.
- Can I install this electric boiler myself? Connection to the electrical network, inspection and commissioning must be carried out by a person with electrotechnical qualification in accordance with the applicable STN 33 2000 standard and related regulations - self-installation is not permitted, either for warranty or safety reasons.
- Can this electric boiler also heat domestic hot water? With many models, yes, usually in combination with a separate hot water tank and a diverter (3-way) valve that switches between the heating circuit and heating the tank - you will find the exact option and required accessories for this specific model in the technical parameters above, or you can consult our customer service.
Additional parameters
| Category: | Protherm Raja/Ray |
|---|---|
| Warranty: | 2 years |
| Weight: | 26.7 kg |
| EAN: | 8586018273411 |
| EAN: | 8586018273411 |
| Package dimensions (mm): | 458 x 798 x 356 |
-
(233 kB) Brochure with technical parameters
-
(600 kB) Declaration of Conformity
-
(3,60 MB) Installation Instructions
-
(1,26 MB) Operating Instructions
-
(240 kB) Design Documentation (1.2 MB)
-
(315 kB) Manual (166.1 kB)
-
(7,19 MB) Installation Instructions (3.6 MB)
-
(192 kB) Brochure (670.6 kB)
-
(240 kB) Design Documentation (1.6 MB)
-
(861 kB) Connection Dimensions kotla (312.3 kB)
-
(4,83 MB) Operating Instructions (623.1 kB)
-
(302 kB) Certificate (958 kB)
