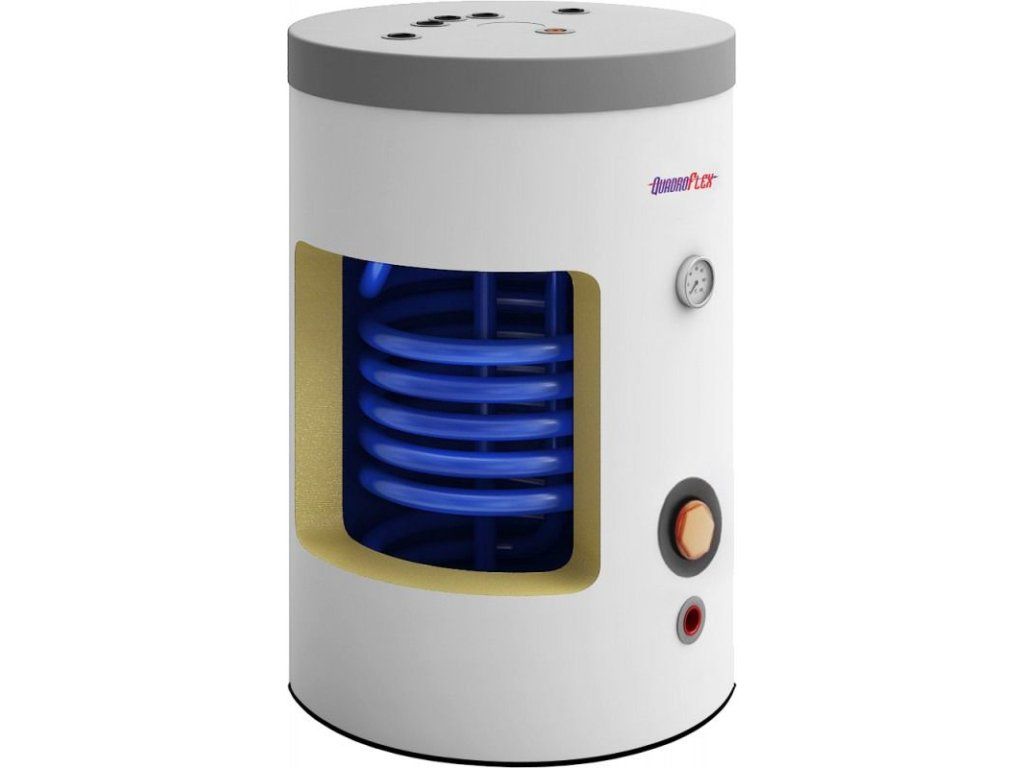

QUADROFLEX BCO 120F storage tank with indirect heating

Product detailed description

Zásobníky teplej vody QUADROFLEX BCO with tubular heat exchanger are designed for indirect heating of hot water in single-family homes and businesses. They allow the connection of multiple draw-off points simultaneously. Their compact dimensions and adjustable feet ensure stable placement on the ground beneath your gas wall-mounted boiler or another source of heating medium required for heating water in the tank. They are suitable for all types of conventional or condensing boilers. The high performance of the heat exchanger ensures rapid heating of water in the tank and sufficient hot water even for the most demanding users.

• Very fast hot water preparation thanks to a high-performance heat exchanger
• All hydraulic connections are located on the top, including the circulation connection
• Inner tank protected by glass-ceramic enamel EXTRA GLASS
• Dimensional magnesium anode
• Thermometer on the front side
• Recess for boiler connection kit
• Thick polyurethane thermal insulation without freons
• Drain hole
• Socket in the lower part for installation of an electrical heating element 5/4" (heating element is not part of the delivery)
• Bottom and top cleaning openings
• 3 pcs height-adjustable feet for eliminating unevenness of the base
• Pressure relief valve combined with a check valve
• Appropriate dimensions - the width of the tank is similar to that of gas wall-mounted boilers
• Exclusive design to create a single unit with the wall-mounted boiler
• 5-year warranty on the tank
• ERP class B

Tank water heater with tubular heat exchanger under the boiler
