Product detailed description

SALUS IT500 - internet programmable weekly thermostat with backlit display in wireless version with receiver.


The room wifi (internet) thermostat SALUS IT500 can be connected to almost all gas, electric boilers or wood, pellet or coal boilers that support two-point switching. The thermostat allows
setting a weekly program, i.e. a different program or schedule for each day. The thermostat package also includes a receiver, which must be connected to the boiler. The SALUS IT500 controller can also switch various other high-power appliances, since its switching voltage is up to 16A. Such as convectors, infrared heaters, air conditioners, circulation pumps for the boiler room.



The range of the thermostat and receiver is approx. 150 meters in open space.



Basic advantages of the IT500 thermostat:

• thermostat control via mobile app for Android and iOS systems
• control via web interface on a PC
• communication via WIFI over the home network

Various usage options:

• one heating circuit
• two heating circuits, IT300 must be purchased separately
• heating circuit + domestic hot water control

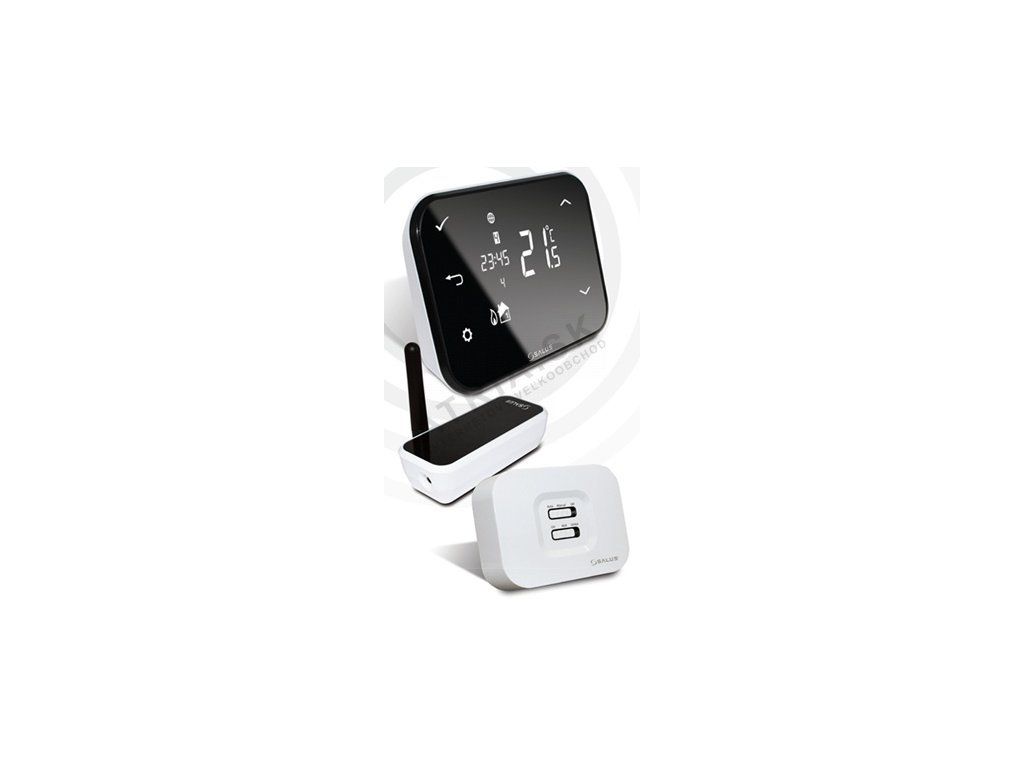

IT500 thermostat package

• SALUS IT500 controller
• IT500Rx
• iTG500
• ITA500
• network cable and power supply

The thermostat allows setting two temperatures, the so-called day temperature, which is used for heating during the day, and the setback temperature, which is used for example during the night. The SALUS IT500 thermostat also has advanced functions, such as setting the boiler switching differential, where the exact difference between switching the boiler on and off is determined. This ensures the boiler does not switch too frequently. Or the option of setting manual mode, where the controller can be immediately set to heating, even if it is set in setback mode.

The thermostat also includes frost protection at 7°C, which is especially useful for weekend houses or cottages.

The package with the controller includes an installation manual, screws and wall plugs for wall mounting.

The SALUS IT500 also includes a small stand, so it can be placed on a cabinet, for example, meaning wall mounting is not required.

The display can show boiler switching indication, current and set temperature on the thermostat, selected program, day-of-week number, current time, heating or setback indicator.

Technical parameters of the SALUS IT500 thermostat:

• Measurement accuracy: 0.2°C
• Maximum switching: 0 to 230V, max 16A.
• Power supply for the thermostat: 2x AA  batteries
• Power supply for the receiver: 230V from the mains
• Temperature measurement range: 5 to 30 °C

Use:

• Gas boilers, electric boilers, wood, coal, pellet boilers.
• Condensing boilers, such as Junkers Compact, Viessmann Vitodens100, ATTACK and many others.
