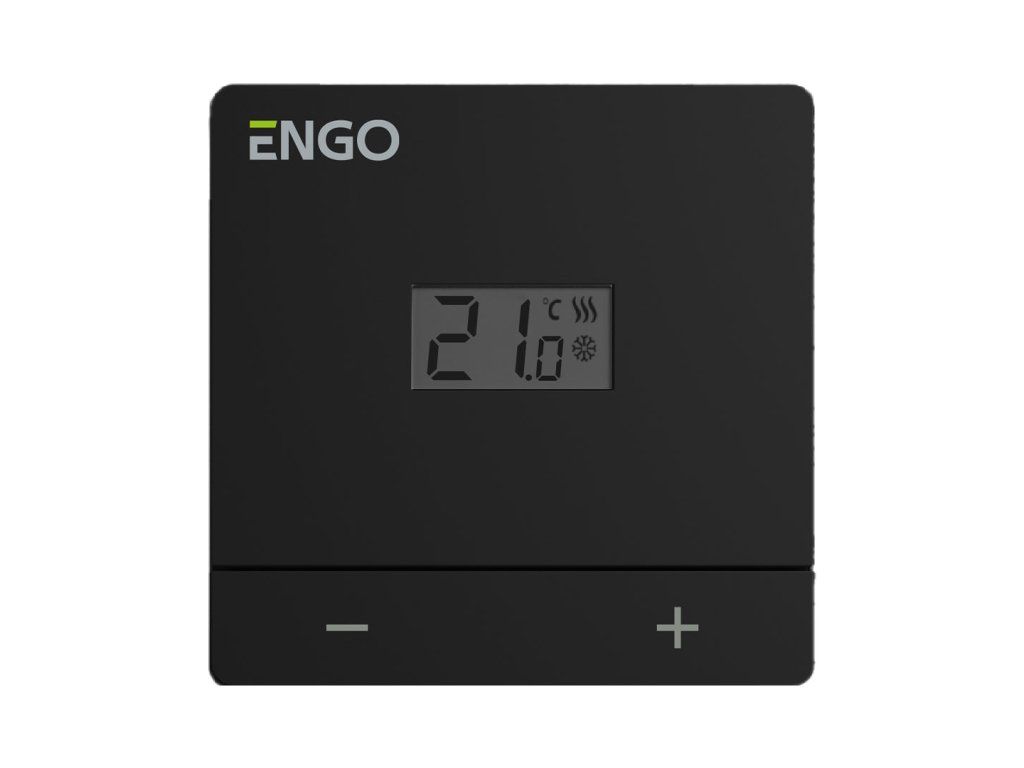

Temperature Controller ENGO EASY-24B

Product detailed description

ENGO EASY-24B is a cable-connected temperature controller for surface mounting, operating at a safe voltage of 24 V AC. Thanks to its low voltage, you can also use it in public buildings.

It regulates accurately and efficiently, and operation is simple even with daily use. The digital display shows the current temperature and the controller operates in a daily mode. It will be particularly appreciated by those who expect only the essentials from technical equipment.

• cable connection and surface mounting
• safe voltage 24 V AC
• usable in public buildings
• digital display with current temperature
• daily operating mode
• simple daily operation

Technical specifications:

• supply voltage: 24 V AC, frequency 50 Hz
• maximum load: 3(1) A
• temperature control range: from 5 to 35 °C
• measurement accuracy: 0.1 °C
• control algorithm: TPI, or hysteresis in the range ±0.2 °C to ±2 °C
• communication: cable connection
• control output: NO/COM, without voltage
• protection class: IP30
• dimensions: 80 x 80 x 22 mm
• designation: EASY-24B
