Thermona THERM 25 EZ/B
Code: 1117Product detailed description

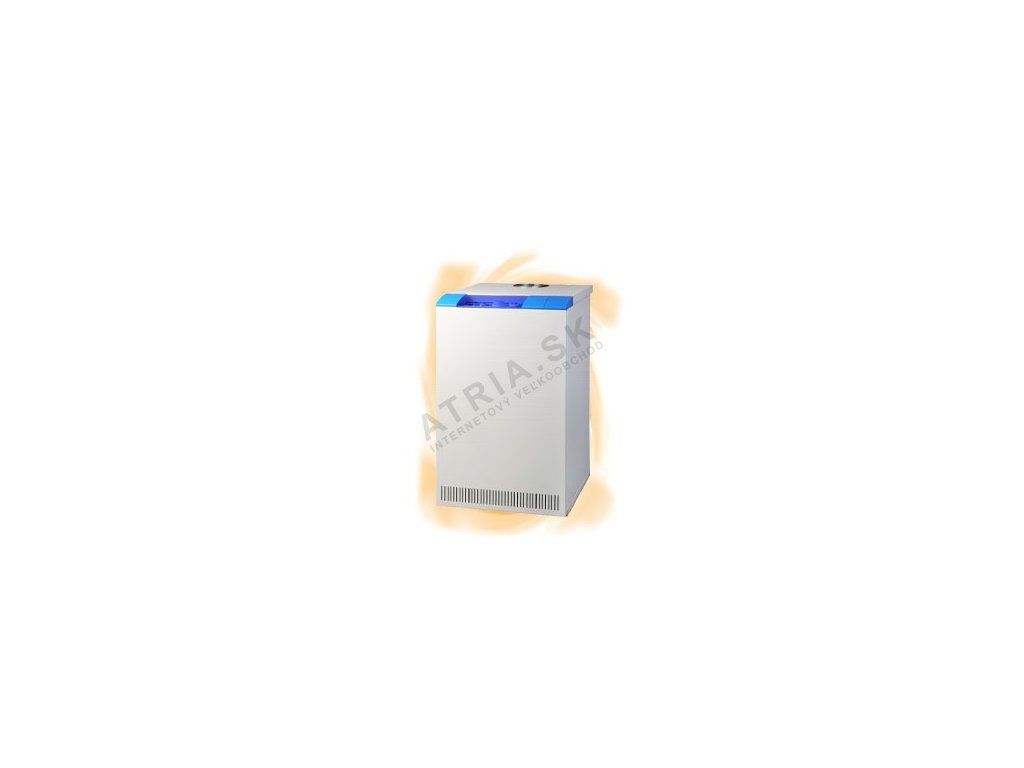

Stationary low-temperature boilers Thermona THERM 25 EZ/B
Stationary THERM boilers are equipped with a modern electronic unit that modulates burner operation. The heat exchanger of the cast-iron THERM boilers uses a completely new construction of cast-iron sections, which allows efficient use of the heating medium's energy with an emphasis on environmentally friendly operation.
You will particularly appreciate the comfort of the EZ/B series stationary cast-iron boilers in combination with the 100l DHW tank, which is manufactured in the same design as the boiler.
You will appreciate the elegantly simple option of interconnecting the two units in cases where both units need to be installed in living spaces.
| TECHNICAL DATA | unit | 25 EZ/B | 35 EZ/B | 45 a EZ/B |
| adjustable output | kW | 16 - 25 | 25 - 35 | 30 - 45 |
| gas consumption | m3/h | 1.87 - 2.92 | 2.92 - 4.09 | 3.51 - 5.27 |
| efficiency | % | 90 | 90 | 90 |
| maximum operating overpressure | bar | 3 | 3 | 3 |
| maximum operating temperature | °C | 85 | 85 | 85 |
| average flue gas temperature | °C | 130 | 137 | 143 |
| maximum noise level according to ČSN 011603 | dB | 52 | 52 | 53 |
| supply voltage/power input with pump | V/Hz | 230/130 | 230/130 | 230/130 |
| protection rating of electrical parts | IP 41 | IP 41 | IP 41 | |
| flue diameter | mm | 135 | 145 | 150 |
| gas connection | G | 3/4" | 3/4" | 3/4" |
| heating water connection | G | 1" | 1" | 1" |
| boiler weight | kg | 126 | 150 | 178 |
| dimensions: height/width/depth | mm | 845/510/625 | 845/595/655 | 845/680/695 |
Additional parameters
| Category: | Thermona |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one: | https://www.atria.sk/protherm-lev-25-kkz-90-s-pripojovacou-sadou/ |
| The item has been sold out… | |
