Thermona THERM 45 EZ/B
Code: 1119Product detailed description

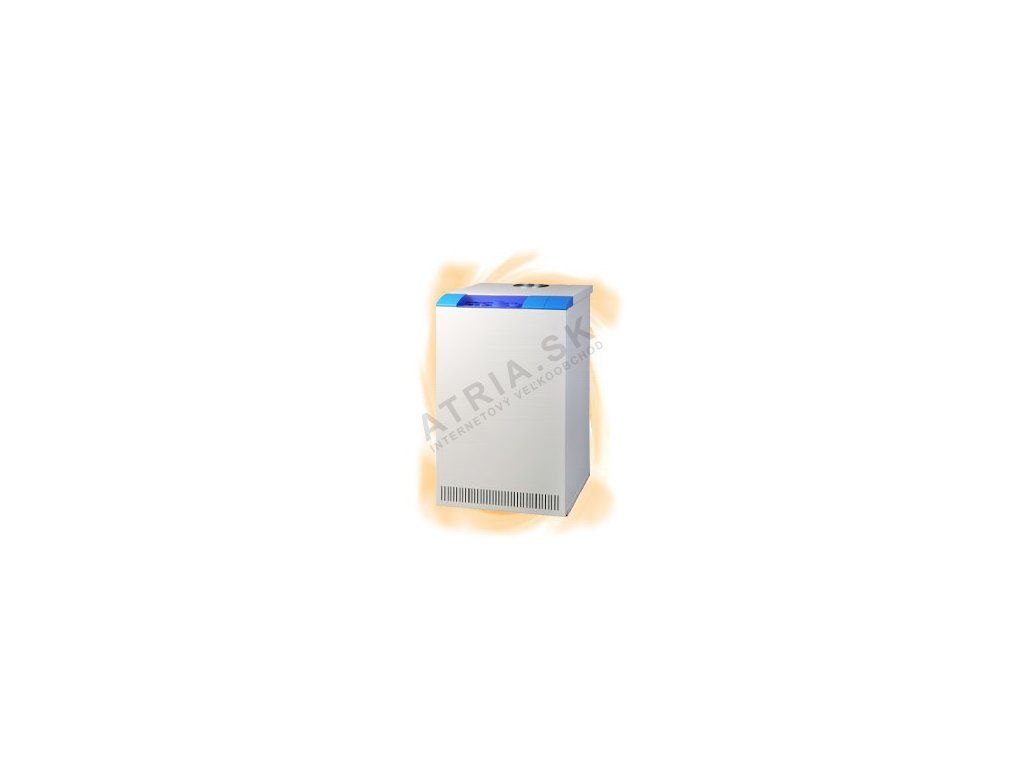

Thermona THERM 45 EZ/B stationary low-temperature boilers
Stationary THERM boilers are equipped with a modern electronic unit that modulates burner operation. The heat exchanger of the cast-iron THERM boilers uses an entirely new design of cast-iron sections, which allows efficient use of the heating medium's energy with an emphasis on environmentally friendly operation.
You will especially appreciate the comfort of the EZ/B series stationary cast-iron boilers in combination with the 100l DHW tank, which is manufactured in the same design as the boiler.
The elegantly simple option of interconnecting the two units is appreciated in cases where both units need to be installed in living spaces.
| TECHNICAL DATA | unit | 25 EZ/B | 35 EZ/B | 45 a EZ/B |
| adjustable output | kW | 16 - 25 | 25 - 35 | 30 - 45 |
| gas consumption | m3/hod | 1,87 - 2,92 | 2,92 - 4,09 | 3,51 - 5,27 |
| efficiency | % | 90 | 90 | 90 |
| maximum operating pressure | bar | 3 | 3 | 3 |
| maximum operating temperature | °C | 85 | 85 | 85 |
| average flue gas temperature | °C | 130 | 137 | 143 |
| maximum noise level per ČSN 011603 | dB | 52 | 52 | 53 |
| supply voltage/power input with pump | V/Hz | 230/130 | 230/130 | 230/130 |
| degree of protection of electrical parts | IP 41 | IP 41 | IP 41 | |
| flue diameter | mm | 135 | 145 | 150 |
| gas connection | G | 3/4" | 3/4" | 3/4" |
| heating water connection | G | 1" | 1" | 1" |
| boiler weight | kg | 126 | 150 | 178 |
| dimensions: height/width/depth | mm | 845/510/625 | 845/595/655 | 845/680/695 |
Additional parameters
| Category: | Thermona |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one:: | https://www.atria.sk/protherm-lev-25-kkz-90-s-pripojovacou-sadou/ |
| The item has been sold out… | |
