Vaillant multiMATIC 700
Code: 0020171316Related products
Product detailed description

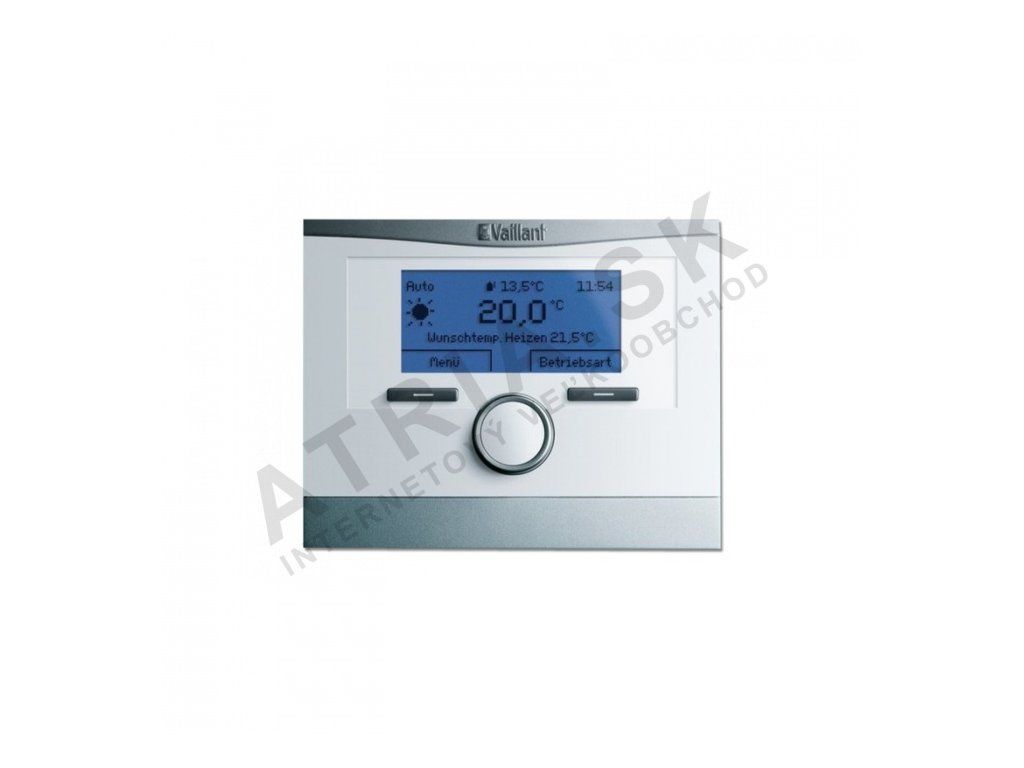

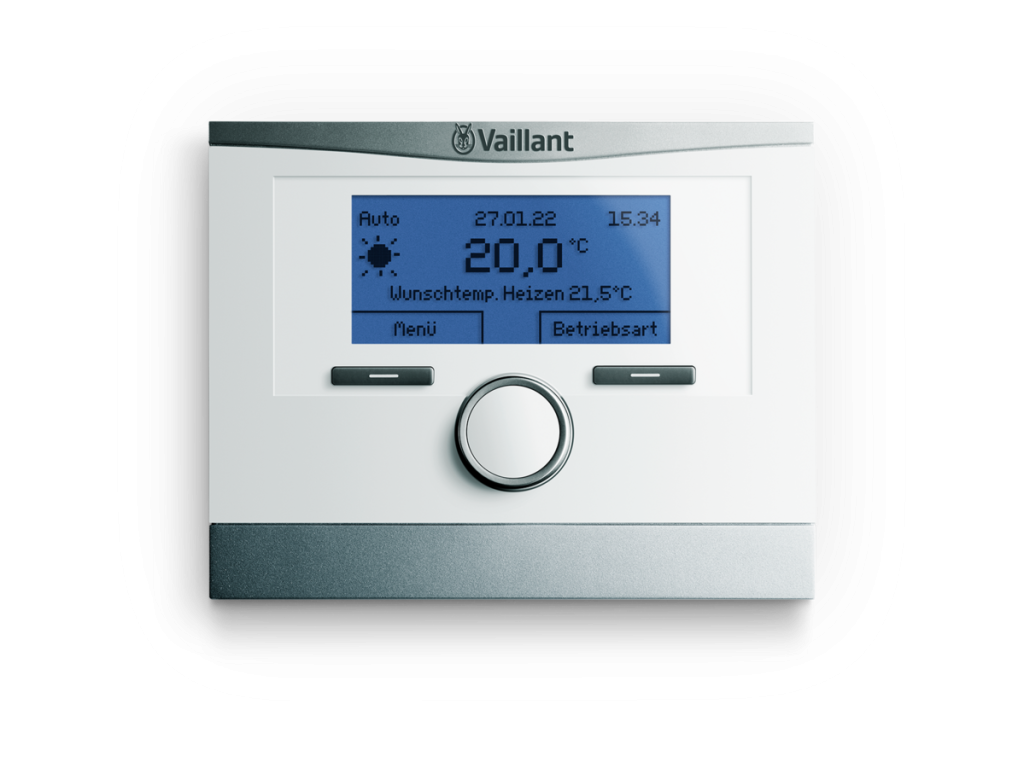

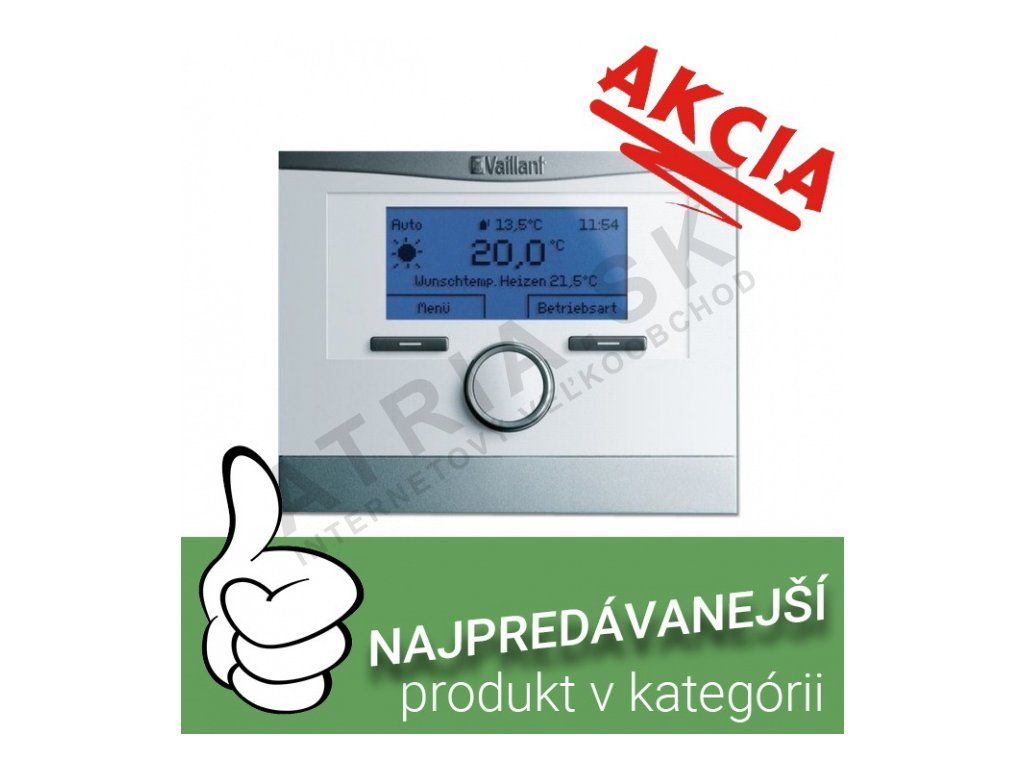

Vaillant multiMATIC 700
- wired programmable universal weather-compensated digital controller
- for one direct heating circuit
- with the option to expand control functions using the VR 70, VR 71 and VR 91 modules
- triVAI function (calculates the most efficient way of heating, gas / electricity - cost comparison)
- Intuitive control thanks to clear menu navigation and a backlit text display
- Together with the internet communication module VR 920 it allows heating to be controlled using a smartphone and tablet - wherever you are
- Universal use in combination with almost all Vaillant heating systems
Parameters
- Weekly program: yes
- Support for continuous output control: yes
- Digital / backlit display: yes / yes
- Time signal reception: yes
- Max. number of heating circuits using expansion modules: 9
- Option of built-in installation in the boiler: yes
- Two-way communication (boiler - controller): yes
- Number of controlled boilers: 1
- Thermal disinfection of the tank: yes
- Activation of the room sensor: yes
- "Holiday" function: yes
- Notification of the need to carry out a regular inspection: yes
- Outdoor temperature display: yes
- Communication interface: eBus
- Floor system drying-out function: yes
- Option to control a solar system: yes
- Time program for DHW and the circulation pump: yes
- Operating voltage: 24 V
- Wireless connection: no
- Cross-section of connecting wires: 2 x 0.75 [mm2]
- Dimensions (width x height x depth): 147 x 115 x 50 [mm]
Frequently Asked Questions
- How exactly do I choose the output of a VAILLANT condensing boiler? The starting point is the calculated heat loss of the building being heated (most reliably taken from the project documentation or an energy certificate). If you don't have a project, you can estimate roughly 60-100 W per m² of floor area for a typically insulated house built after 2000, or 100-150 W/m² for an older, non-insulated house - the exact figure varies depending on the number of floors, ceiling height, number and quality of windows, and building orientation. An oversized boiler switches on and off more often (so-called cycling), which shortens its lifespan and reduces efficiency; an undersized boiler, on the other hand, cannot adequately heat the house on frosty days.
- Why is a condensing boiler more economical than a conventional one? A condensing boiler additionally uses the heat hidden in the water vapour produced when burning gas - in a conventional boiler this escapes unused through the chimney, while in a condensing boiler it is cooled below the so-called dew point, the vapour condenses and the released heat is returned to the heating circuit. As a result, condensing boilers achieve an efficiency of around 105-110% relative to the calorific value of the gas, compared to the usual 85-92% for conventional boilers.
- What type of flue gas exhaust does this boiler need? Most modern condensing boilers are so-called turbo boilers (with a sealed combustion chamber) and require a coaxial (concentric) or separate flue gas exhaust and combustion air intake routed through the perimeter wall or roof - so a functional chimney is not needed. The exact type and maximum length of the exhaust (depending on the diameter, 60/100 or 80/125 mm) can be found in the technical documentation for the specific model, or you can consult our customer service.
- What does the ErP energy class stated for the boiler mean? This is a mandatory efficiency label for heating appliances under the EU ErP (Ecodesign) directive, similar to the energy labels used for refrigerators. Condensing boilers commonly achieve class A, or even higher when combined with room controls (e.g. A+ when using weather-compensated control together with a room thermostat).
- Can I install and connect this boiler myself? No. Connection to the natural gas supply, the electrical network and the flue gas exhaust is, by law, exclusively the responsibility of a person with the appropriate authorisation (most commonly an authorised service technician of the given brand or a gas appliance inspection technician). After installation, the boiler must be commissioned by the manufacturer's authorised service, which is usually also a condition for the warranty to remain valid.
- What about servicing and the warranty? Most manufacturers require a regular annual service inspection by an authorised service provider in order to keep the warranty valid even after its standard expiry (an extended warranty with regular servicing is common especially for brands such as Vaillant, Protherm and Viessmann). The exact warranty terms can be found in the warranty certificate supplied with the boiler.
- What is included in the delivery of this specific product? The exact package contents (the boiler itself, possibly a hot water tank, room controls and other accessories in the case of a set) are stated in the product name and in its technical parameters above on this page.
Additional parameters
| Category: | Vaillant Controls |
|---|---|
| Warranty: | 2 years |
| Weight: | 2 kg |
| "Holiday" function: | yes |
| Activation of room sensor: | yes |
| Communication interface: | eBus |
| Cross-section of connecting wires: | 2 x 0,75 [mm2] |
| Digital / backlit display: | yes / yes |
| Dimensions (width x height x depth): | 147 x 115 x 50 [mm] |
| Number of controlled boilers: | 1 |
| Operating voltage: | 24 V |
| Option to build into the boiler: | yes |
| Outdoor temperature display: | yes |
| Solar system control option: | Yes |
| Support for continuous output control: | yes |
| Thermal disinfection of the tank: | Yes |
| Time program for DHW and circulation pump: | Yes |
| Time signal reception: | Yes |
| Two-way communication (boiler - controller): | Yes |
| Underfloor system drying: | yes |
| Weekly program: | yes |
| Wireless connection: | no |
