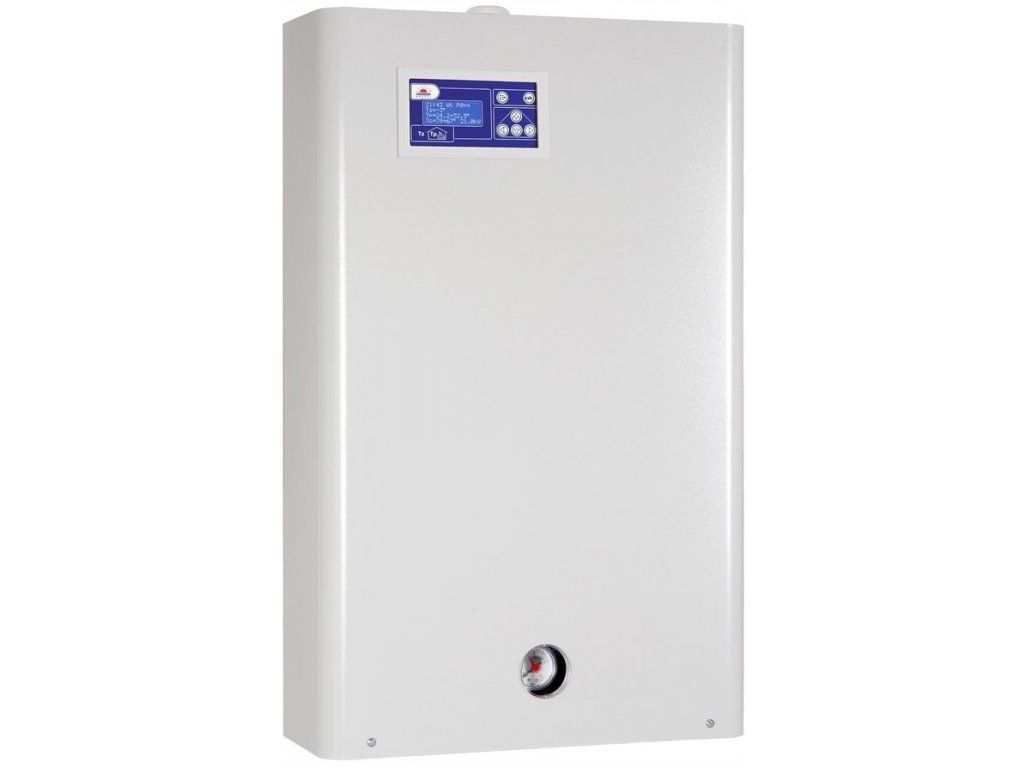

Viessmann EKCO.TM 12-36
Code: Z021555Related products
Product detailed description
KEY FEATURES:
- Outlet temperature from 40 °C to 85 °C.
- The control panel (EKCO.TM) allows setting and reading the boiler's operating parameters. It provides automatic output modulation, which has a significant effect on energy savings.
- The EKCO.TM type offers control of one circuit with a mixing valve
- A drive unit consisting of electronic, semiconductor switching elements ensures reliable and quiet boiler operation.
- A thermal switch cuts the power supply in an emergency. It protects the heating unit and electronic components from damage.
- Hydraulic connections located at the bottom.
- Energy-saving, high-efficiency circulation pump.
- Automatic bleed valve.
- Pressure gauge.
- Energy efficiency class D.
- Power supply 400V 3N~
The water temperature in the tank can be set on the front display if the TV - WE 008 temperature sensor is used
| VIESSMANN EKCO.TM | 12 - 36 |
| Output | 12 - 36 kW |
| Max. output | 36 kW |
| Min. output | 12 kW |
| Outlet temperature | 40 - 85 °C |
| Permissible pressure | 3 bar |
| ErP class | D |
| Electrical parameters | |
| Voltage | 400 V |
| Rated current | 3 x 43.3 A |
| Electrical protection rating | IP21 |
| Dimensions | |
| Dimensions (width/height/depth) | 815/ 503/ 197 mm |
| Weight | 29 kg |
* The boiler output is set by the installation partner at the time of installation or servicing.
Frequently Asked Questions
- How do I choose the right output for a Viessmann electric boiler? Just like with gas boilers, base your choice on the calculated heat loss of the heated building. For electric boilers, it is also crucial to check whether your building's (or apartment's) electrical connection capacity allows it - higher outputs (from roughly 12 kW upward) usually require a three-phase 400 V connection and a correspondingly sized main circuit breaker, which can be confirmed by a revision technician or the electricity distributor directly.
- Is an electric boiler worth it compared to a gas or solid-fuel boiler? An electric boiler has the lowest purchase price and the simplest installation (no flue gas extraction is needed, since nothing is combusted), but running costs on electricity are usually higher than for gas or wood/coal for the same amount of delivered heat. It is particularly suitable where gas is not available, as a supplementary/backup source, or for buildings with low consumption (well-insulated new builds, cottages, apartments).
- How does an electric boiler regulate output? Most models switch individual heating elements on/off in stages, while some more modern models also allow smoother output modulation - this affects the smoothness of heating and partly also the service life of the switching elements.
- Can I install this electric boiler myself? Connection to the electrical network, inspection and commissioning must be carried out by a person with electrical qualifications in accordance with the applicable standard STN 33 2000 and related regulations - self-installation is not permitted, either in terms of warranty or safety.
- Can this electric boiler also heat domestic hot water? For many models, yes, usually in combination with a separate hot water tank and a switching (3-way) valve that switches between the heating circuit and heating the tank - the exact option and required accessories for this specific model can be found in the technical parameters above, or you can consult our customer service.
Additional parameters
| Category: | Viessmann Vitotron |
|---|---|
| Warranty: | 2 years |
| Weight: | 29 kg |
| Power supply: | 400V |
| Outlet temperature from: | 40 °C |
