Vaillant bypass motor for recoVAIR 150/4

Product detailed description

Vaillant bypass motor for recoVAIR 150/4

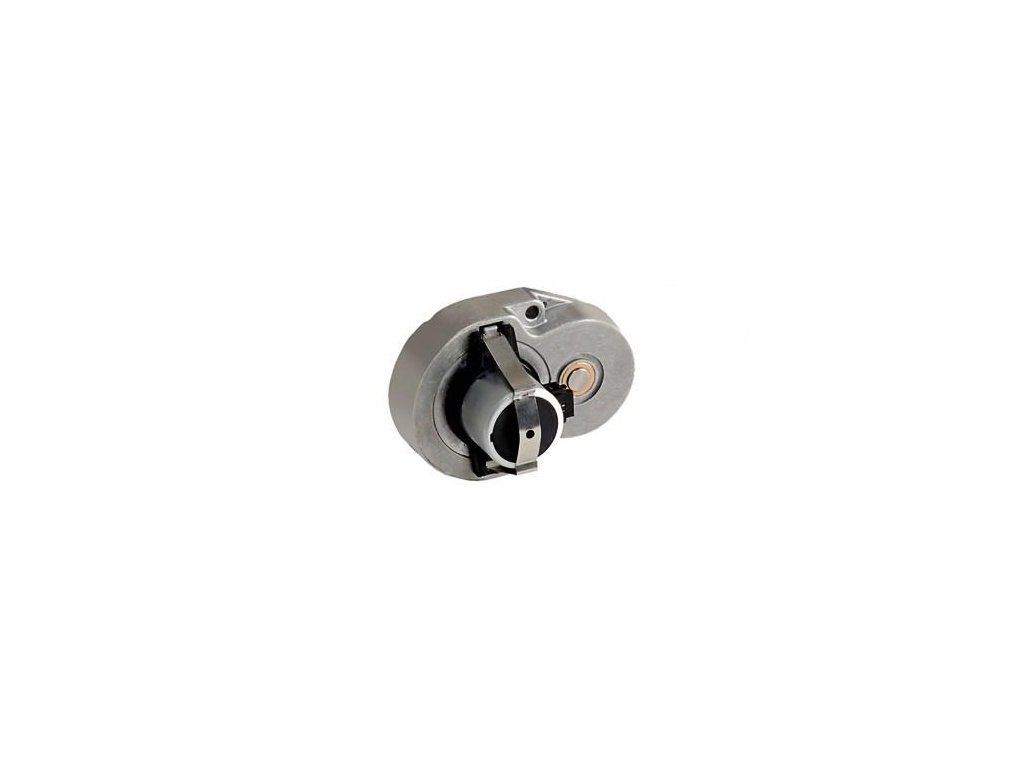

The bypass motor (manufacturer part number 0020180846) is an original replacement part for the Vaillant recoVAIR VAR 150/4 heat recovery unit, which drives the switching damper of the unit's summer bypass. This damper temporarily bypasses the cross-flow/counter-flow heat exchanger and brings outdoor air directly into the interior without heat recovery - a function used especially during warm summer nights, when the outdoor temperature is lower than the indoor temperature and it is desirable to naturally cool the interior with fresh night air without unnecessarily "returning" heat back into the rooms via the exchanger.

The bypass motor is an electromechanical actuator that, based on a command from the recoVAIR VAR 150/4 unit's control electronics, automatically switches the damper position between two modes: winter mode (air passes through the heat exchanger and heat recovery takes place) and summer/bypass mode (air flows outside the exchanger, directly into the interior). This part is ordered as a replacement in case of failure of the original bypass motor, when the damper stops responding to commands from the control electronics or gets stuck in one position.

Technical characteristics

• Device type: electromechanical motor (actuator) for the bypass damper
• Manufacturer order number: 0020180846
• Intended for: exclusively the recoVAIR VAR 150/4 unit
• Function: automatic switching of the summer bypass damper position (heat exchanger bypass)
• Control: automatic, based on a command from the recoVAIR unit's control electronics according to measured temperatures (indoor and outdoor)
• Location: built into the unit's construction, directly at the heat exchanger's bypass damper
• Power supply: low voltage, connected to the unit's electronics according to the installation manual
• Type of replacement part: service replacement in case of original motor failure, installation requires partial disassembly of the unit
• Country of origin: Germany / EU (Vaillant Group)
• Warranty: 2 years

Principle of operation of the summer bypass

The main task of the recoVAIR heat recovery unit in winter is to minimize heat losses caused by air exchange, by transferring heat from the extracted air to the supplied air via the heat exchanger. In summer, however, the situation is reversed - if the outdoor temperature is lower than the indoor temperature (typically during nights after a hot summer day), it is desirable for the cooler outdoor air to enter the interior as cool as possible, without being reheated on its way through the exchanger by heat from the extracted (warmer) air from the interior. This is exactly the purpose of the bypass damper driven by the bypass motor - in summer mode, air fully or partially bypasses the exchanger, achieving the effect of so-called night cooling without the need for active cooling by air conditioning.

The recoVAIR unit's control electronics continuously evaluate the measured indoor and outdoor temperature and, based on this comparison, automatically decide when it is appropriate to switch the bypass motor into the summer position (bypassing the exchanger) and when to switch it back to the winter position (operation through the exchanger with heat recovery). This process takes place without user intervention, fully automatically.

When is bypass motor replacement necessary

The bypass motor, like any electromechanical component, may show signs of wear or failure after years of operation - typical symptoms include the damper being permanently stuck in one position (the unit therefore either constantly bypasses the exchanger, or conversely does not use the summer bypass at all even under suitable temperature conditions), unusual sounds when the damper position switches, or an error message on the unit's control electronics/controller. In such cases, it is advisable to order and install an original replacement bypass motor to restore full functionality of this energy- and comfort-related function of the unit.

Installation and connection

Replacing the bypass motor requires partial disassembly of the recoVAIR VAR 150/4 unit's structure to access the bypass damper and its drive, as well as disconnecting and reconnecting the low-voltage power and signal wire to the control electronics. Given the complexity of this intervention and the need for correctly setting the motor's end positions after replacement (so that the damper reliably seats in both end positions), we strongly recommend entrusting this replacement exclusively to a trained service technician or a Vaillant contracted service partner - this is not a standard consumable part that can be replaced by the user, but a functional component that directly affects the energy balance and operating comfort of the entire unit.

Compatibility

This bypass motor is a specific replacement part intended exclusively for the recoVAIR VAR 150/4 model equipped with the summer bypass function. It is not compatible with the larger VAR 260/4 and VAR 360/4 models, which have a different heat exchanger and bypass mechanism design. Before ordering this replacement part, we recommend verifying the exact model and version of your unit, or consulting with an authorized Vaillant service center, to ensure correct compatibility of the replacement part.

Benefits of a functional summer bypass for living comfort

A functional summer bypass provides real benefits especially during periods of summer heat, when it allows the effective use of cooler night air to naturally reduce the indoor temperature without the need for active cooling by air conditioning. This effect is particularly valuable in apartments and houses where heat accumulates in rooms during the day (for example due to solar radiation through windows) and this heat needs to be removed as quickly as possible at night. Without a functional bypass motor, the unit would not be able to fully utilize its potential in this respect, and the indoor temperature would decrease more slowly on hot summer days.

Relationship between the bypass and other functions of the VAR 150/4 unit

The summer bypass function is also closely related to other accessories of the VAR 150/4 unit - for example, the electric air pre-heater, which addresses the opposite, winter extreme of operation (protecting the exchanger against freezing at low outdoor temperatures). While the pre-heater protects the unit during the coldest winter days, the bypass motor allows the coolest summer nights to be used for natural interior cooling. Both functions complement each other throughout the year, and the unit's control electronics automatically switches between them depending on the season and measured temperatures, without requiring user intervention.

If the unit is also equipped with a VAZ CO/1 CO2 sensor for automatic performance control according to air quality, this automation works independently of the bypass function - the sensor addresses ventilation intensity (how much air is exchanged), while the bypass addresses the path the air takes through the unit (through the exchanger or bypassing it). Both functions can therefore be used simultaneously without any mutual limitation.

Why night cooling is more advantageous than air conditioning

Using the summer bypass for so-called night cooling represents an energy-efficient way to reduce indoor temperature during hot summer days without the need to operate active air conditioning. While an air conditioning unit actively removes heat from the interior using a cooling circuit (and consumes a significant amount of electrical energy in doing so), the bypass function simply utilizes the difference between the indoor and outdoor temperature during nighttime hours and brings cooler air directly indoors without any active cooling process. This function is, however, limited by the current outdoor temperatures (on tropical nights with a minimal temperature difference, its effect is limited), but in Central Europe, with a typical drop in night temperatures, it represents an effective and free way of summer interior cooling.

Practical scenario of using the summer bypass in a household

A typical scenario for using the bypass function is as follows: during a hot summer day, heat gradually accumulates in the living rooms, mainly due to solar radiation through windows and heat gains from household appliances. When the outdoor temperature drops below the indoor room temperature in the evening, the recoVAIR unit's control electronics register this change and automatically switch the bypass motor to the summer position - air now flows directly into the interior without passing through the heat exchanger, thereby utilizing the full cooling potential of the cooler night air. In the morning, when the outdoor temperature again approaches or exceeds the indoor temperature, the electronics automatically switch back to the standard mode with heat recovery.

Recommendations for service technicians when diagnosing a fault

If a bypass motor fault is suspected, we recommend that service technicians first verify whether the unit's control electronics are actually sending a command to change the damper position (for example, by checking diagnostic data or error messages on the controller), and only then proceed to physically inspect the motor and damper. This sequence helps distinguish an actual bypass motor fault from a possible problem in the control electronics or connecting cable, which can save time and costs on unnecessary replacement of a functional part.

Effect of a missing or faulty bypass on energy balance

If the bypass motor stops working and the damper remains permanently in the winter position (air still passes through the exchanger), the unit continues to function in terms of basic air exchange, but loses the ability to use cooler summer night air to naturally cool the interior - in practice, this may mean a higher need for active cooling (fans, air conditioning) during hot summer days and less comfortable indoor conditions in the morning hours. Conversely, if the damper were to remain stuck in the summer (bypass) position even during winter, the unit would lose a significant amount of heat that it would otherwise recover through the exchanger, resulting in increased heating costs. In both cases, a functional bypass motor is therefore important for maintaining full energy efficiency and operating comfort of the unit throughout the year.

Maintenance and care

As part of the unit's control electronics and mechanics, the bypass motor requires no maintenance from the user during normal operation - its functionality should be checked as part of the unit's regular annual service, ideally in spring before the start of the summer season, when the bypass function is expected to be used most. During this visit, the technician checks the smoothness of the damper's movement, the correctness of the end positions, and the overall functionality of switching between summer and winter mode.

Why choose this particular replacement part

This bypass motor is an original replacement part directly from the manufacturer of the recoVAIR VAR 150/4 unit, designed and manufactured to precisely match the mechanical and electrical parameters of the original part. Compared to non-original or universal third-party replacements, it ensures correct mechanical compatibility with the bypass damper, seamless communication with the unit's control electronics, and preservation of the warranty conditions for the entire controlled ventilation system.

Frequently Asked Questions

What is the bypass motor for?

It drives the summer bypass damper, which allows the heat exchanger to be bypassed and cooler outdoor air to be brought directly into the interior during warm summer nights, without being reheated via the exchanger.

Which recoVAIR model is this part intended for?

Exclusively for the VAR 150/4 model. The larger VAR 260/4 and VAR 360/4 models have a different design and are not compatible with this part.

How do I know if the bypass motor is faulty?

Typical symptoms include the damper being stuck in one position, unusual sounds when switching, or an error message on the unit's control electronics/controller.

Can I replace the bypass motor myself?

We do not recommend it - the replacement requires partial disassembly of the unit and correct setting of end positions, so we strongly recommend entrusting it to a trained service technician.

Is the summer bypass function available on every VAR 150/4 unit?

The summer bypass function is part of this product line, but we recommend verifying the exact availability and version of a specific unit according to its nameplate or directly with an authorized Vaillant service center.

How is the bypass motor controlled?

Automatically, by the unit's control electronics, which compares indoor and outdoor temperature and, based on the result, switches the damper position between summer and winter mode.

What is the warranty on this replacement part?

We provide a standard 2-year warranty, the same as for other accessories and parts for Vaillant recoVAIR units.

Can the bypass function be turned off or controlled manually?

The bypass control is designed as a fully automatic function of the unit's control electronics - manual control is not a standard part of the standard configuration, since the automation, based on temperature sensors, can evaluate the suitability of switching more precisely and reliably than a manual decision by the user.

Does the weather during the day affect the bypass setting at night?

Yes, the control electronics continuously evaluate the current indoor and outdoor temperature, so the decision to switch to summer mode responds to the actual current conditions, not a preset time schedule.

Note: we recommend always verifying the exact diagnosis of a fault and the necessity of replacing the bypass motor directly with an authorized Vaillant service center, since some symptoms (e.g. unexpected damper behavior) may also originate from another component of the unit's control electronics.

Is a bypass motor failure common?

This is a mechanical component with moving parts, so as with any such part, wear may occur after many years of operation - the occurrence of a fault is not unusual in any way and does not indicate reduced quality of the unit as a whole; it is a common service replacement part.

Summary

The bypass motor is a specific but important replacement part for the Vaillant recoVAIR VAR 150/4 unit, which ensures the functionality of the summer bypass and the associated comfort of natural night cooling during warm summer months. As an original replacement part directly from the manufacturer, it guarantees precise mechanical compatibility with the bypass damper as well as preservation of the warranty conditions for the entire system. Given the complexity of installation, we strongly recommend entrusting the replacement of this part exclusively to a trained service technician.

Note: before ordering this replacement part, we recommend verifying the exact version of your recoVAIR VAR 150/4 unit directly with an authorized Vaillant service center, to ensure correct compatibility.
