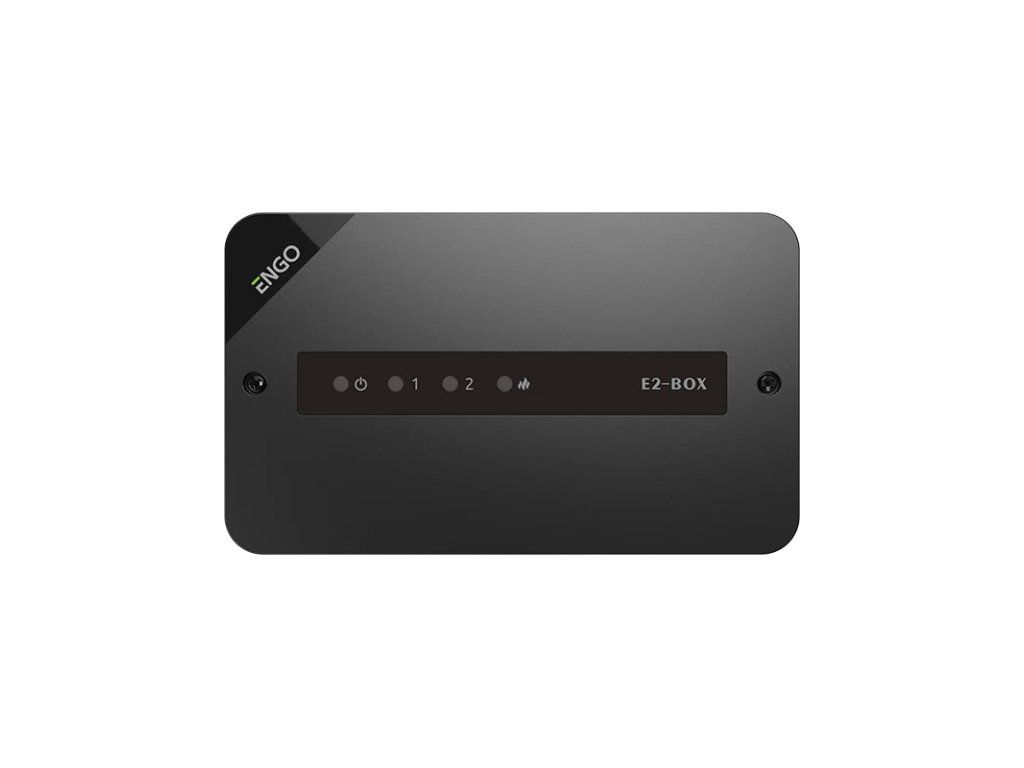

ENGO ECB2-230 Heating Circuit Integrator

Product detailed description

ENGO ECB2-230 is a heating circuit integrator that connects two zones under one controller. It is suitable where you need to control two circuits independently – for example, the ground floor and the attic of a family house – and at the same time you are combining underfloor heating with classic radiators in the system.

Instead of the cumbersome connection of separate relays, the integrator takes over their function, thus shortening and simplifying the installation. Its compact dimensions allow it to be mounted in a standard installation cabinet, where it looks neat and elegant. It is ideal for family houses, where it contributes to comfort and energy efficiency.

• two zones, one controller
• independent control of two heating circuits
• underfloor heating and radiators in one system
• quick and easy installation without connecting relays
• compact dimensions for an installation cabinet
• universal use, ideal for family houses

Technical specifications:

• supply voltage: 230 V AC, frequency 50 Hz
• maximum permissible load: 6(1) A
• pump output: 230 V AC, maximum 3(1) A
• boiler output (NO/COM/NC): maximum 6(1) A
• dimensions: 150 x 90 x 35 mm
• designation: ECB2-230
