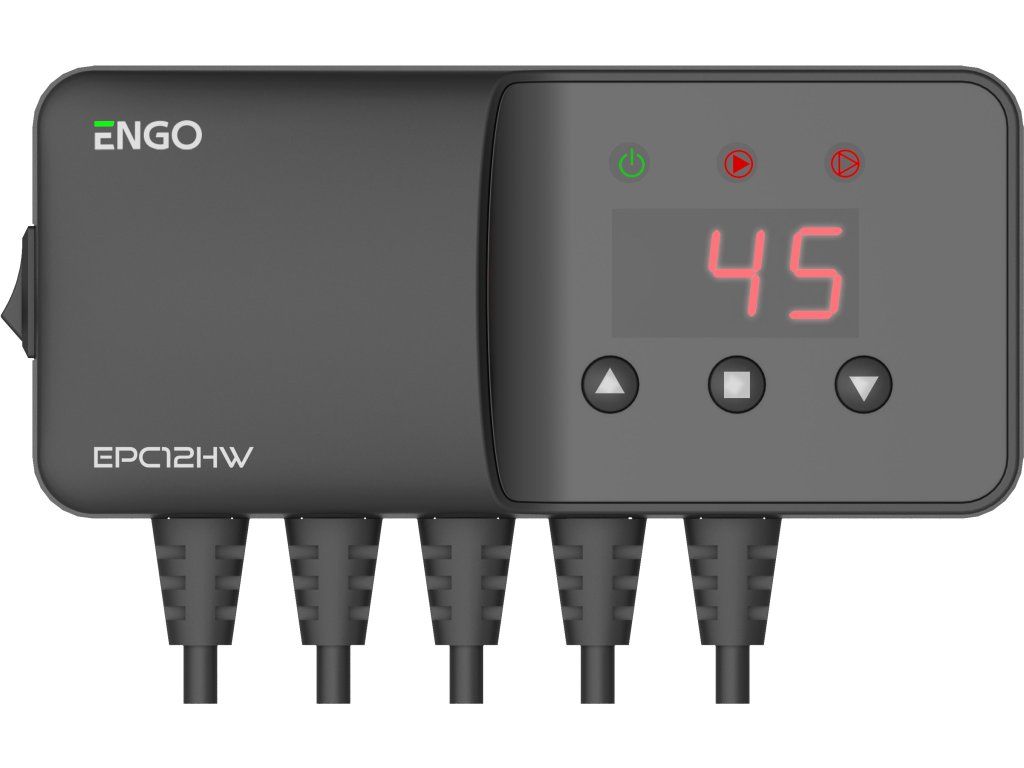

Thermostat for controlling circulation pump ENGO EPC12HW

Product detailed description

The thermostat ENGO EPC12HW is used to control the DHW pump. The device activates when the boiler temperature exceeds the set value for the central heating pump. The DHW pump then controls the temperature difference.

The hot water pump starts only when the boiler temperature exceeds the tank temperature by the hysteresis you set yourself. It runs until the boiler and tank temperatures equalize, or until the tank reaches the desired temperature.

• control of the DHW pump according to temperature difference
• activation after the boiler temperature exceeds the set value for the central heating pump
• user-adjustable hysteresis
• operation of the pump until temperatures equalize or the desired tank temperature is reached

Technical specifications

• Supply voltage: 230 V AC 50 Hz
• Maximum current: 3(1) A
• Temperature measurement range: 0 - 99 °C
• Temperature control range for DHW: 5 - 80 °C
• Additional DHW temperature control range: 20 - 80 °C
• Temperature resistance of the sensor: -10 - 120°C
• Thermistor sensor range: 1.5 m
• DHW sensor spacing: 3 m
• Dimensions: 155x70x39 mm
