Thermoregulatory bypass valve - 5/4"; Kv 12; 80° C
Code: 1560085Related products
Product detailed description

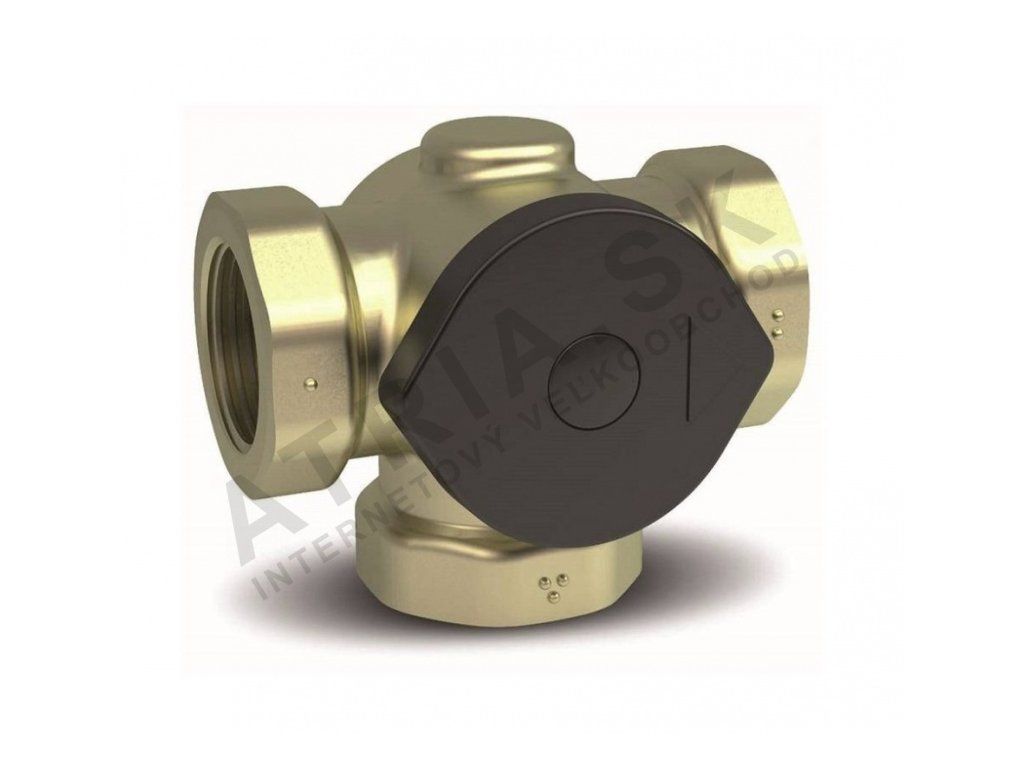

Thermoregulatory bypass valve, IVAR.TERMOVAR, size: 5/4", temperature: 80 °C, Kv 12
- PN 10, T = +120 °C
- protects solid-fuel boilers against low-temperature corrosion and tar deposits
- replaceable thermostatic cartridge
- material: DZR brass
Note: The operating flow rate can be adjusted under pressure without tools.
Frequently asked questions
- How do I choose the correct type and size of fitting/valve? Follow the nominal pressure (PN) and operating temperature (T) stated in the technical parameters - they must match or exceed the actual operating conditions of your system, and the connection size must match the pipe diameter.
- How does this fitting/valve work? The exact operating principle (shutting off, pressure regulation, non-return function, etc.) depends on the specific type - a detailed description of the function can be found above for this product.
- Must installation be done by a professional? Simple shut-off fittings can be installed by a competent DIYer; for control and safety fittings (safety valves, pressure-reducing valves) we always recommend a professional, as these are safety-critical components.
Additional parameters
| Category: | thermoreg. bypass valves |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.804 kg |
| EAN: | 6415843672200 |
| Material type: | brass DZR Note |
| Operating temperature: | +120 °C |
| Nominal pressure: | PN 10 |
| Last price update: | 13.04.2026 1:06:08 |
Product rating
Be the first who will post an article to this item!
Discussion
List of discussions
M
Martin
Martin
Hi there, I have a wood boiler with a return line that can get quite cold during startup, and I'm looking for a thermostatic bypass valve to protect it from thermal shock. Would this 5/4" valve with the 80°C setting work for that purpose, or is it meant for something else entirely?
A
ATRIA.SK
ATRIA.SK
This valve is actually designed to open and let water bypass when the temperature reaches 80°C, so it's more of an overheat protection rather than a cold-return protection valve. For protecting a boiler from cold return water, you'd typically want a thermostatic mixing valve set to a lower temperature like 55–60°C. If you're unsure which type fits your setup, feel free to contact us and we can point you in the right direction.
