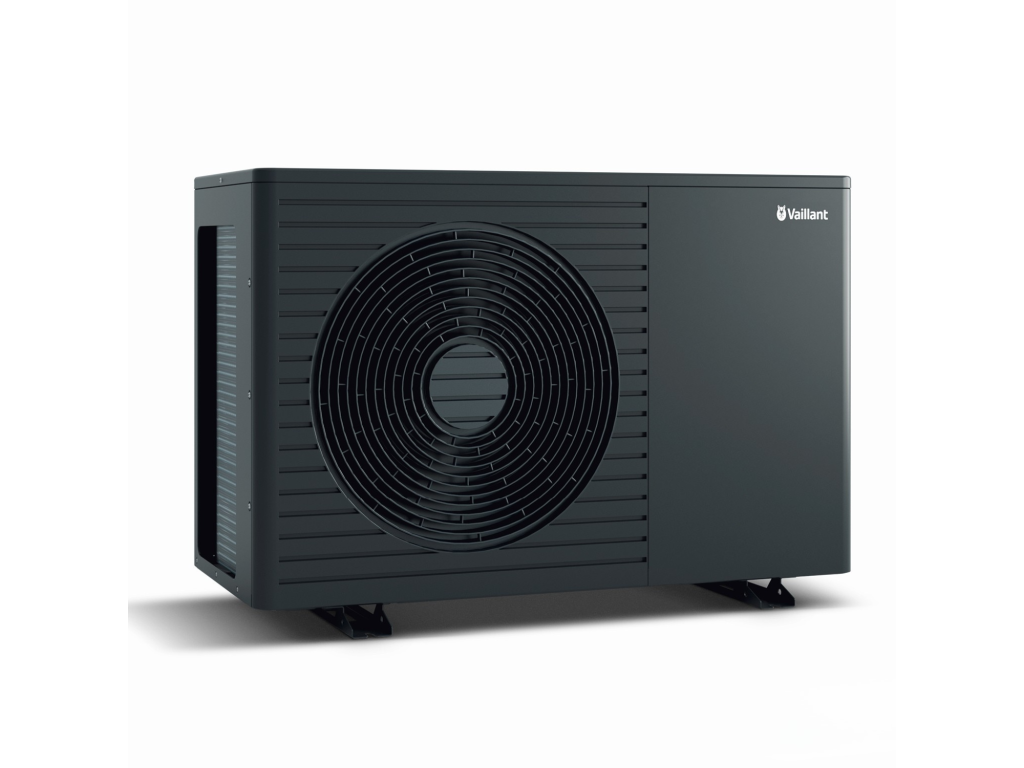

Vaillant aroTHERM pro vWL 75/7.1 230 V outdoor unit monoblock

Product detailed description

aroTHERM pro VWL 75/7.1 230 V is an outdoor unit of an air-to-water heat pump from the German manufacturer Vaillant, manufactured as a monoblock – the complete refrigeration circuit (compressor, evaporator, expansion valve and primary circuit circulation pump) is enclosed directly in the outdoor unit. Thus, no refrigerant piping is led into the house, but only standard heating piping with a heat transfer liquid (water with an antifreeze mixture), which significantly simplifies installation, shortens the installation time and eliminates the need to call in a refrigeration technician with certification for work with refrigerants. The unit VWL 75/7.1 belongs to the aroTHERM pro range with single-phase power supply 230 V and is intended for family houses with medium to high heat loss, where a higher heating capacity is required than with the smaller VWL 55/7.1 model.

Why aroTHERM pro VWL 75/7.1

The heat pump uses heat contained in the outside air and, using a compressor refrigeration circuit, transfers it to the heating system of the house. Thanks to this, it is able to produce several kW of heat from 1 kW of electrical energy – the actual ratio (COP) varies according to the outside temperature and the temperature of the heating water. The 75/7.1 model is built as a balanced solution between performance and requirements for the electrical connection: standard single-phase 230 V is sufficient even at a higher heating capacity, so during the renovation of a house, it is often not necessary to build a new three-phase line to the outdoor unit.

The newer generation of aroTHERM pro (designation „7.1“) brings quieter operation, more precise power regulation and better efficiency at low outside temperatures compared to the older range, which is directly reflected in lower operating costs during the heating season and in colder areas of Slovakia.

Technical parameters

• Type: air-to-water heat pump, outdoor unit, monoblock version
• Model designation: VWL 75/7.1 A 230V
• Refrigerant: R290 (propane) – natural refrigerant with extremely low global warming potential (GWP ≈ 0,02 compared to CO₂), without fluorinated gases
• Heating capacity and COP at A-7/W35: 6,37 kW at an electrical input of approx. 2,39 kW (COP 2,66)
• COP at A2/W35: 4,15
• COP at A7/W35 (ΔT=5K): 4,83
• SCOP (low-temperature system, 35 °C): 4,87
• SCOP (medium-temperature system, 55 °C): 3,62
• Energy efficiency class for heating (low-temperature application): A+++
• Sound power level: 49,9 dB(A) in quiet night mode (reduced power) at A-7/W35, max. 60,9 dB(A) at full power A-7/W35; 49 dB(A) according to ErP at A7/W55
• Dimensions (H × W × D): 750 × 1104 × 454 mm
• Weight (without packaging): 90,3 kg
• Electrical supply: 230 V, single-phase (1/N/PE)
• Range of heating water output temperature: 10 – 70 °C
• Operation: all-year-round, including heating and cooling (with a compatible hydraulic station and system solution)

The stated performance values and COP correspond to standardized test points according to the EN 14511 standard (A-7/W35, A2/W35, A7/W35), which are used to compare heat pumps from different manufacturers. The actual performance and consumption vary during the year depending on the current outside temperature, the required heating water temperature and the setting of the regulation.

Why a monoblock and not a split system

In split systems, the refrigeration circuit is divided between the outdoor and indoor unit and connected by refrigerant piping, which must be installed and charged exclusively by a technician with a refrigeration certificate. In the case of a monoblock such as aroTHERM pro VWL 75/7.1, the entire refrigeration circuit is already complete from the factory and charged with refrigerant directly in the unit. Thus, it is sufficient to lead standard heating piping (similar to a boiler) insulated against frost and optionally supplemented with an electric auxiliary heating in extremely cold areas to the house. The advantages are:

• simpler and faster installation without the need for work with refrigerant on the site,
• lower risk of refrigerant leakage during the lifetime (fewer connections in the field),
• possibility to realize the installation by a standard heating/pipe fitting company,
• simpler serviceability – all key components are in one unit.

Installation and hydraulic solution

The outdoor unit VWL 75/7.1 is installed on a solid foundation or consoles outside living rooms (best with sufficient distance from windows and neighboring plots for acoustic reasons). A pair of pipes with a heat transfer liquid leads into the house, which are connected to an indoor hydraulic station – typically a module of the VWZ MEH range (hydraulic unit with a circulation pump, safety group, air vent and optionally electric auxiliary heating), which ensures the connection of the heat pump with the heating system of the house (floor heating, radiators) and with the preparation of hot domestic water via an accumulator heater (e.g. the uniSTOR or actoSTOR range). The exact type and size of the hydraulic module and the TUV tank is selected according to the heat loss of the building, the number of people in the household and the chosen heating system – we recommend consultation with an authorized Vaillant installation partner, who will also prepare the design proposal and energy calculation.

The control of the entire system is ensured by the regulator sensoCOMFORT or sensoHOME, which allows setting of heating curves, equithermal regulation, planning of TUV operation and remote control via a mobile app (when connected to the internet and with module VR 921 / internet gateway).

For whom is this model intended

VWL 75/7.1 230 V is a suitable choice for family houses with medium to high heat loss, where the smaller model 55/7.1 would no longer be able to cover the required performance on the coldest days, but at the same time a three-phase connection is not required as with larger units of the range (e.g. VWL 115/7.1). Thanks to the single-phase 230 V connection, this unit is often the most practical choice during renovations, where a gas boiler is replaced by a heat pump and there is no interest in solving new power lines from the electricity meter.

Eco-friendliness and operating costs

The refrigerant R290 (propane) has negligible impact on global warming compared to commonly used fluorinated refrigerants (R410A, R32) and its use also allows achieving higher heating water temperatures with good efficiency even at low outside temperatures. The high SCOP value (up to 4,87 in a low-temperature system) means that the heat pump produces almost 5 times more thermal energy on average during the season than the amount of electrical energy it consumes itself – this is reflected in a noticeable saving compared to electric direct heating and also compared to older gas or oil boilers, especially in combination with floor heating or larger radiators designed for lower heating water temperatures.

Common questions (FAQ)

Do I need anything else for this unit?

Yes. The outdoor unit VWL 75/7.1 alone does not work independently – an indoor hydraulic station (e.g. VWZ MEH), optionally a hot water storage tank and a regulator are needed. These components are selected according to the specific heating system of the house.

Is a refrigeration certificate required for installation?

No, because it is a monoblock version with refrigerant enclosed directly in the outdoor unit, standard installation/heating qualifications are sufficient on the heating piping side. The electrical part must be connected by an electrician with the appropriate qualification.

What is the difference compared to the model VWL 55/7.1?

VWL 75/7.1 has a higher rated heating capacity and is intended for buildings with higher heat loss. The physical dimensions of the unit (750 × 1104 × 454 mm) are the same for both models, the difference is mainly in the compressor power and the associated consumption and noise at full load.

Can the unit be used for cooling in summer?

Yes, when a compatible hydraulic station and system solution are selected (e.g., floor heating that also functions as a surface cooling system), the heat pump can passively or actively cool the rooms in summer.

What is the noise level of the unit at night?

The unit has an adjustable quiet (reduced) operating mode, in which the sound power level drops to approximately 49.9 dB(A), which is suitable for night operation even in densely built-up areas. Nevertheless, the exact placement and distance from the windows of neighboring properties should still be considered according to the current noise legislation.

Is an electric booster heater necessary?

With a properly designed system and a bivalent point selected by the installation company, the aroTHERM pro can meet the heating demand of the house even at low temperatures without the need for an electric booster heater. However, in extremely cold areas or in the case of an undersized capacity, the hydraulic station may include an additional electric heater as a backup.

When selecting a specific configuration (hydraulic station, TÜV tank, control system, accessories), we recommend contacting our team or an authorized Vaillant installation partner – we will gladly prepare a customized quotation based on the parameters of your home.
