How to connect underfloor heating and radiators to one boiler
Radiators need a higher water temperature, underfloor heating a lower one. That's why the underfloor loop has its own mixing valve with a pump, and a low loss header separates the two circuits. Tap or click a number to see the matching products.
Tap or click a number in the diagram to jump to the matching product below.
Step 1: heat source and circuit separation

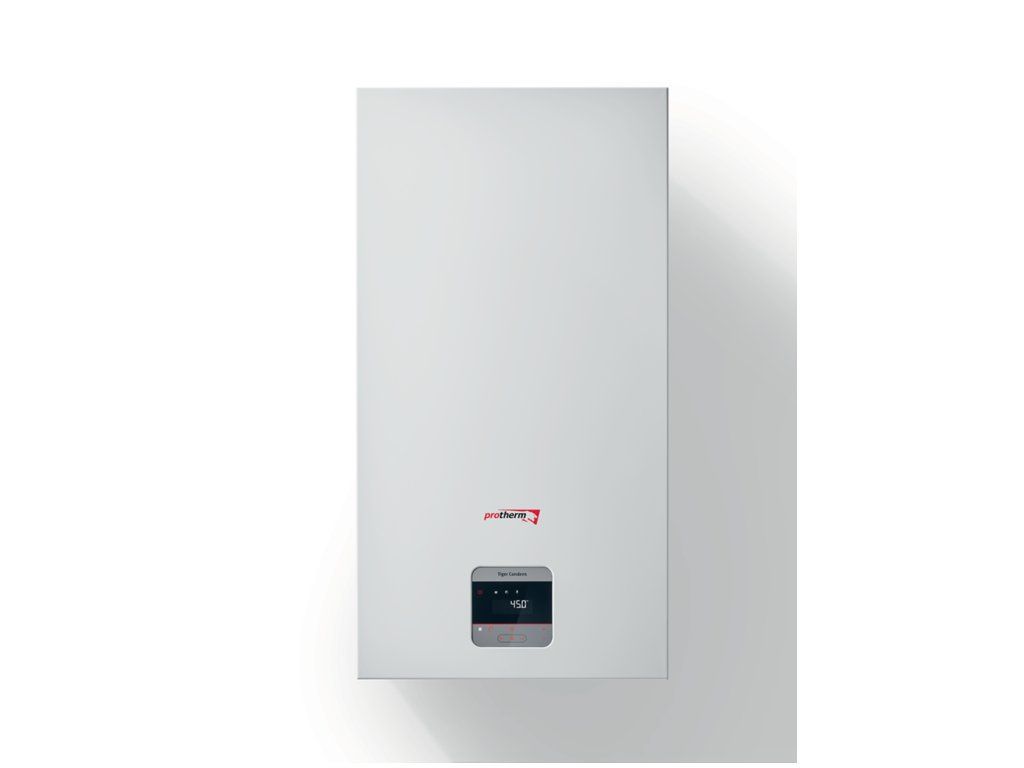

1BoilerHeat source for both circuits – gas, electric or solid fuel.View products →
2Low loss headerSeparates the boiler circuit from the radiator and underfloor circuits.View products →
11Safety groupSafety valve, pressure gauge and air vent on the boiler circuit.View products →
Step 2: radiator and underfloor circuits
3Unmixed boiler moduleRadiator circuit with pump and isolation valves in one unit.View products →
4HEAT BLOC mixed boiler moduleUnderfloor circuit with 3-way valve, actuator and pump.View products →
5ESBE VRG131 3-way mixing valveBlends in return water – a lower temperature goes to the floor.View products →
6Mixing valve actuatorTurns the valve according to signals from the controller.View products →

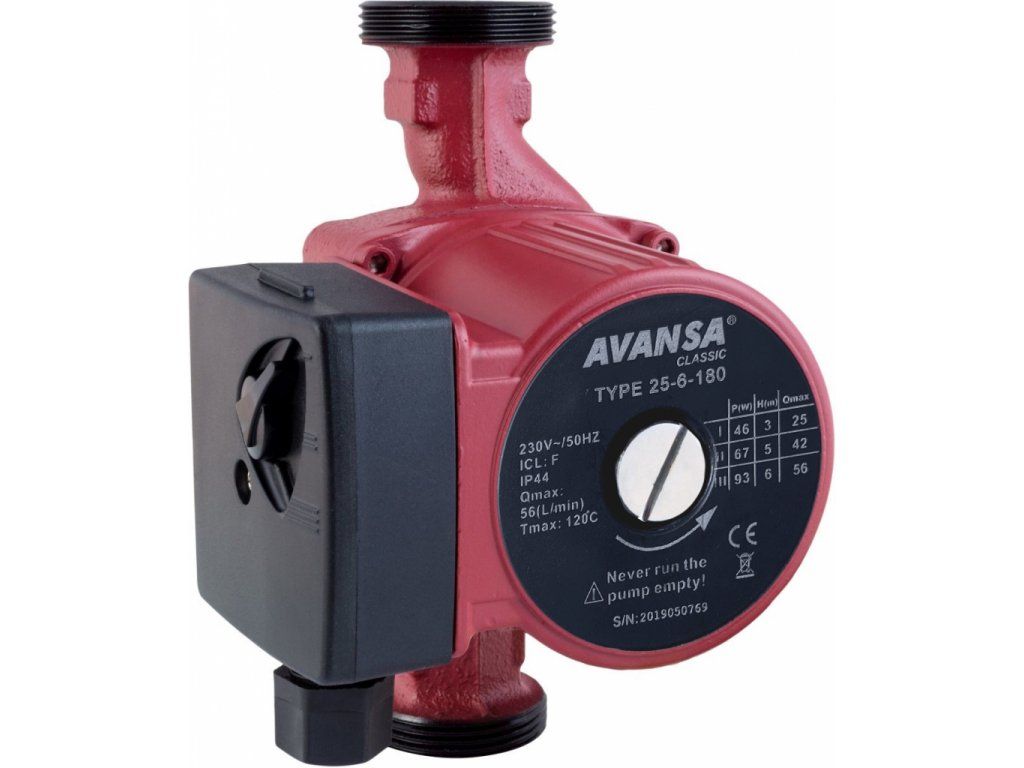

Circulation pumpsPumps for the individual circuits.View products →

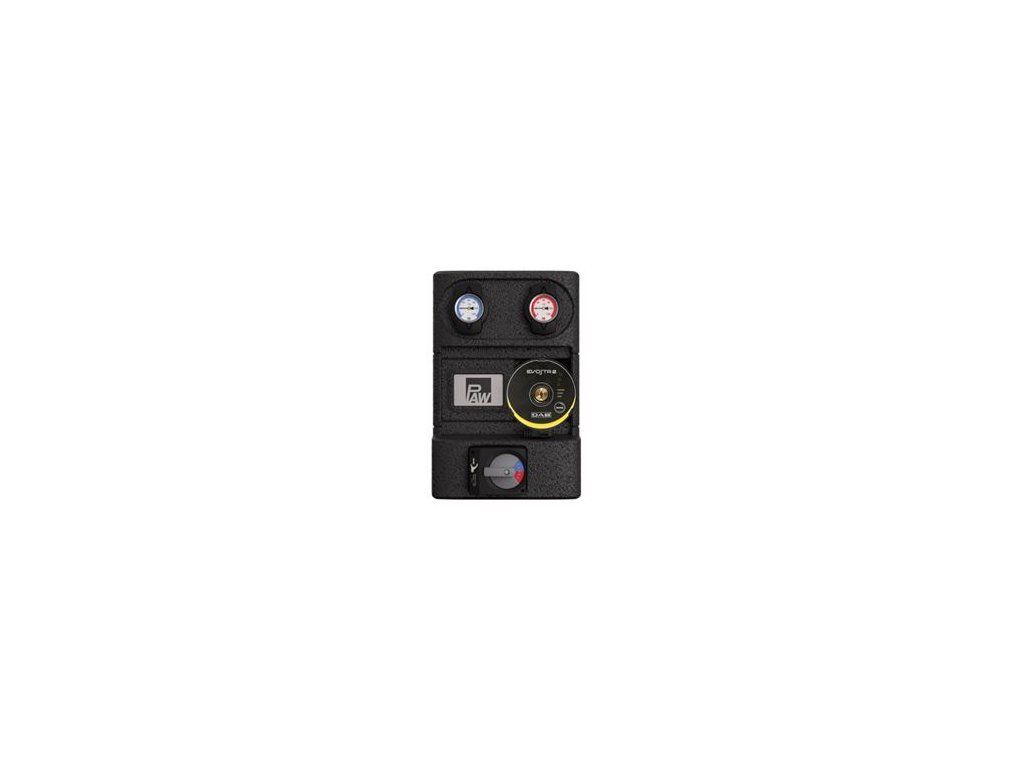

HEAT BLOC boiler modulesThe complete range of ready-made boiler modules.View products →
Step 3: heat emitters

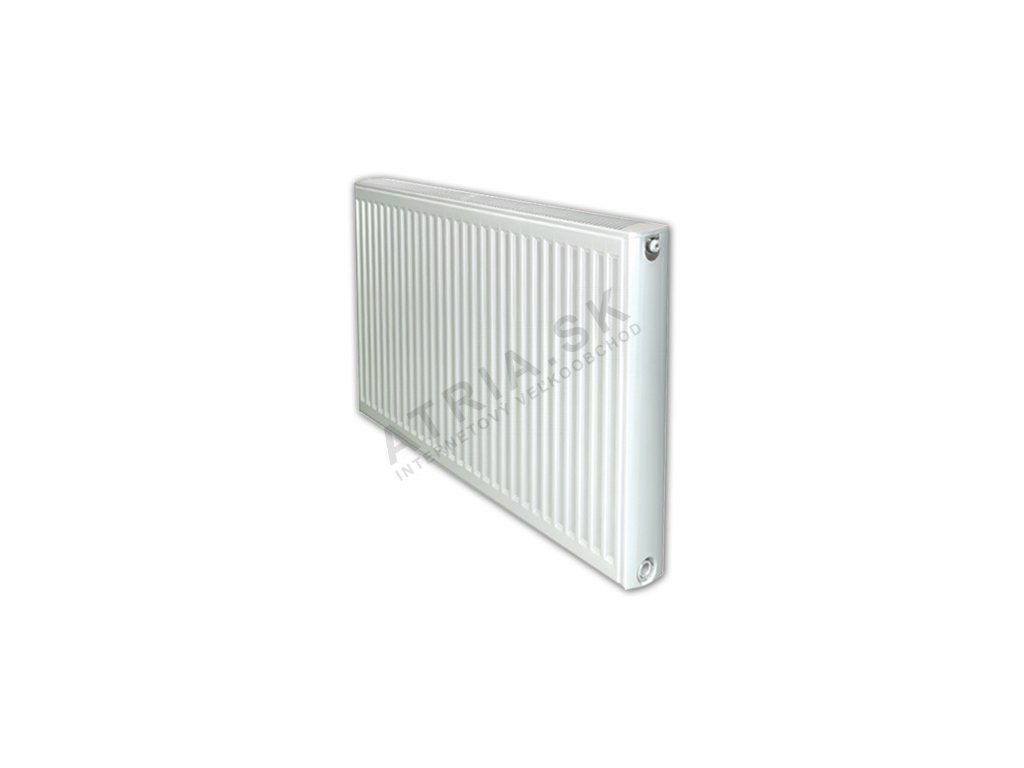

10RadiatorsPanel radiators with side and bottom connection.View products →
9Underfloor heating manifoldManifolds with flow meters for the floor loops.View products →
Step 4: controls

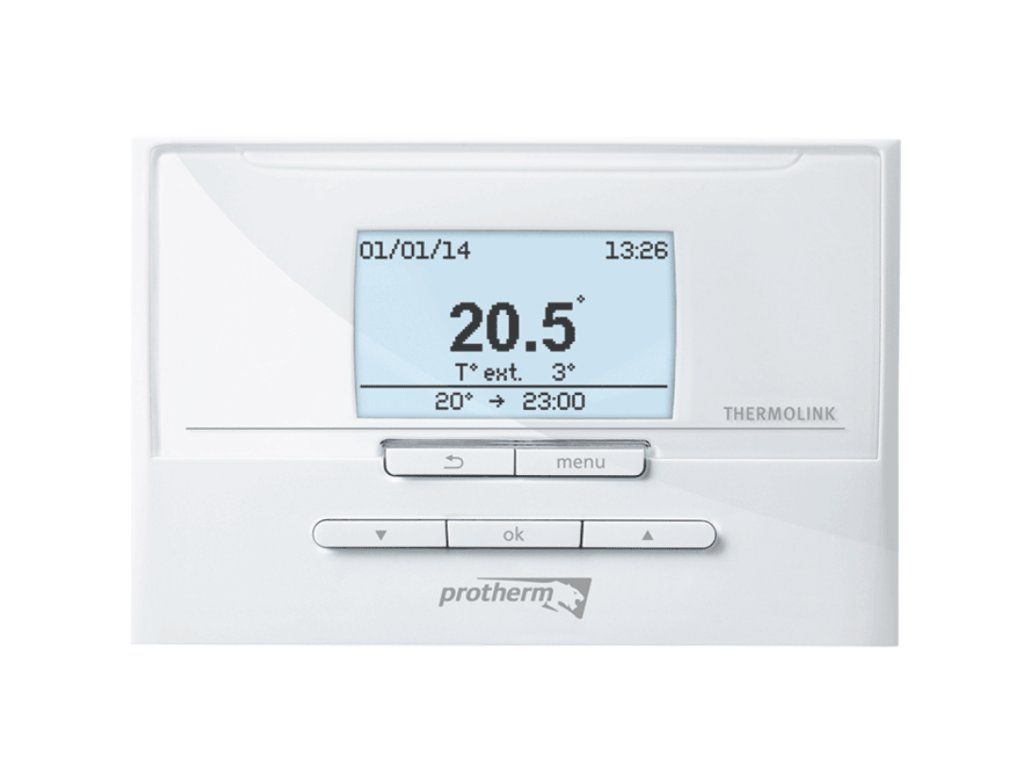

8Boiler controllersWeather-compensated and room controllers – they control the boiler and the mixed circuit.View products →
12Contact thermostatSafety thermostat – switches off the underfloor pump if it overheats.View products →

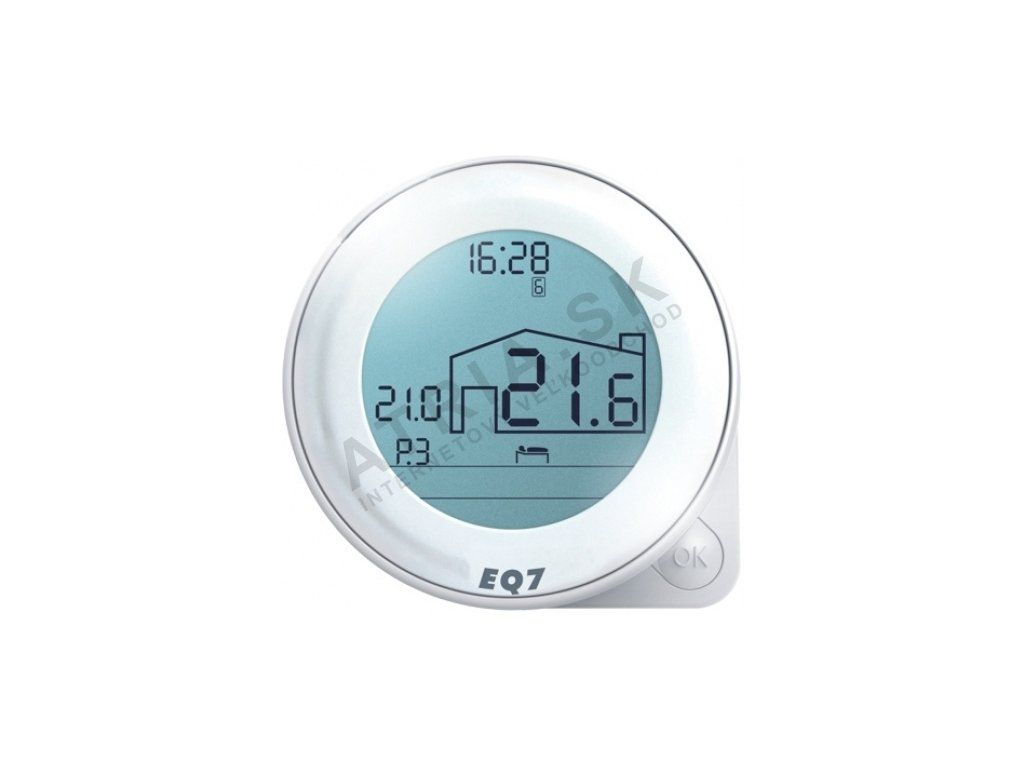

13Room thermostatControls the room temperature.View products →
