Boiler and hot water cylinder – installation
The boiler heats the cylinder via a coil, and the zone valve switches between heating and water heating. A safety group is mandatory on the drinking water side. Tap or click a number to see the matching products.
Tap or click a number in the diagram to jump to the matching product below.
Step 1: boiler and cylinder

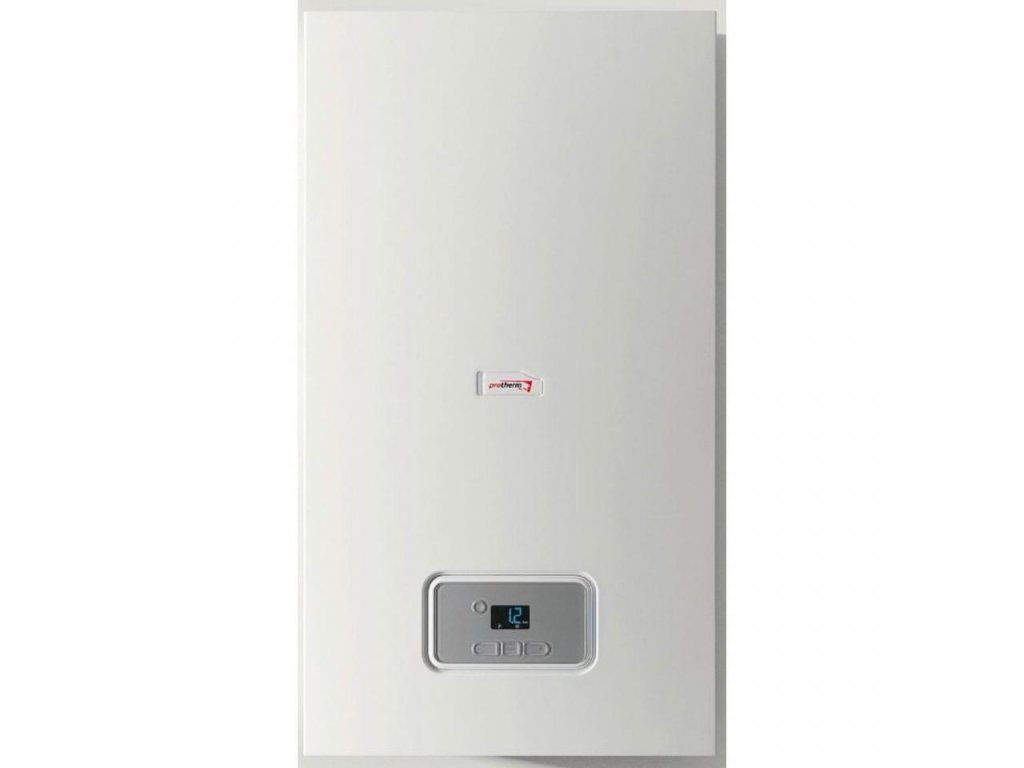

1Boiler for cylinder connectionBoilers ready for an external hot water cylinder.View products →

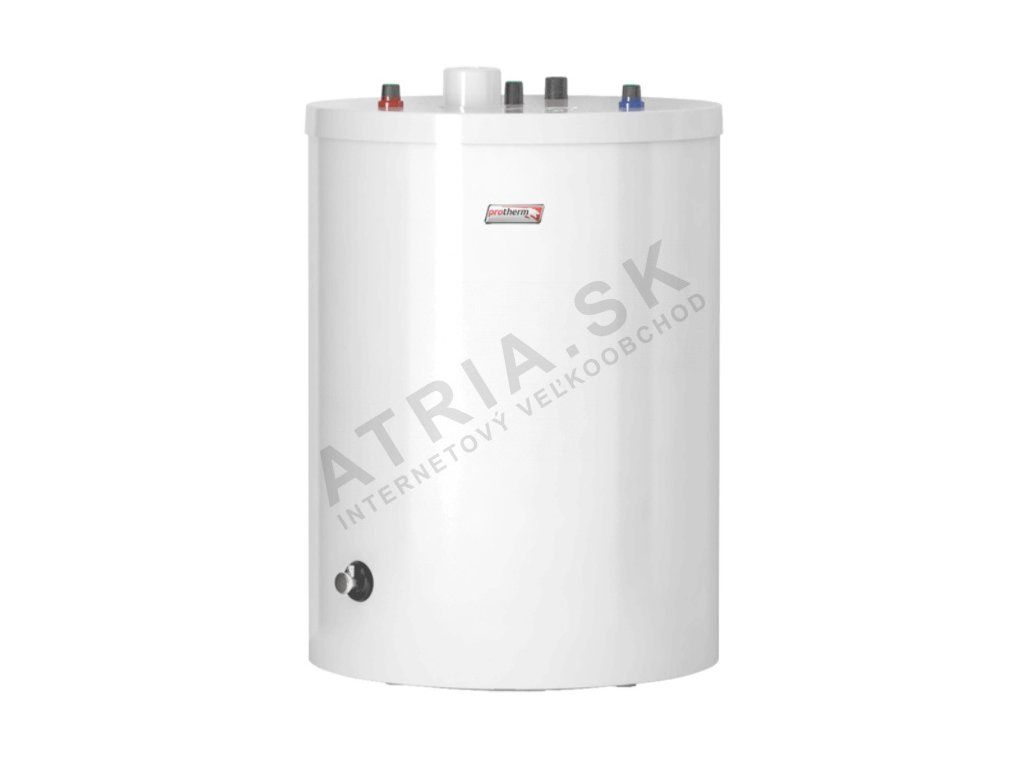

2Hot water cylinderIndirect hot water cylinders – wall-hung and floor-standing.View products →
3Zone valveSwitches heating between the radiators and the cylinder.View products →
10ADEX TTUV cylinder thermostatUse it to set the water temperature in the cylinder.View products →
Step 2: cold water and safety
6Water filtrationAn inlet water filter protects the cylinder and taps from deposits.View products →
4Cylinder safety groupsSafety and check valve on the cold water supply – mandatory equipment for the cylinder.View products →
5Expansion vesselAbsorbs the expansion of heated water – protects the cylinder.View products →
Ball valvesIsolation valves for the cylinder inlet and outlet.View products →
Step 3: hot water to the taps
7Thermostatic mixing valve for hot waterMixes hot water down to a safe temperature at the outlet.View products →
8Hot water circulation pumpHot water at the tap straight away, without a long wait.View products →
Circulation pumpsThe full range of circulation pumps.View products →

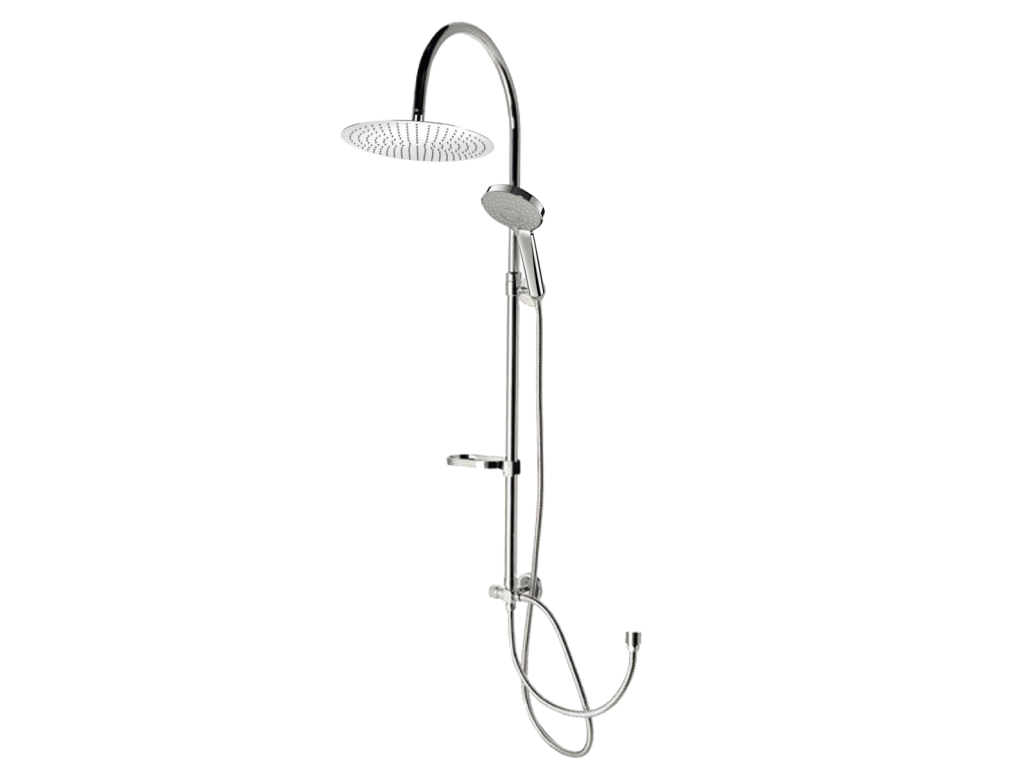

11Taps and showersTaps and shower sets for the cylinder.View products →
