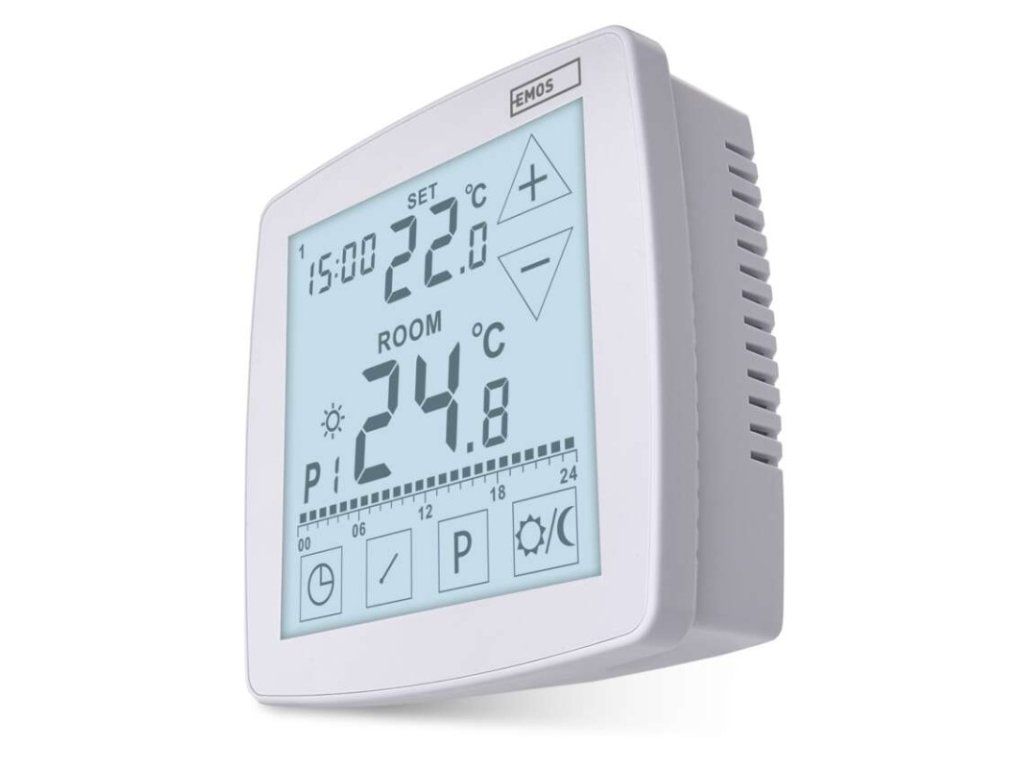

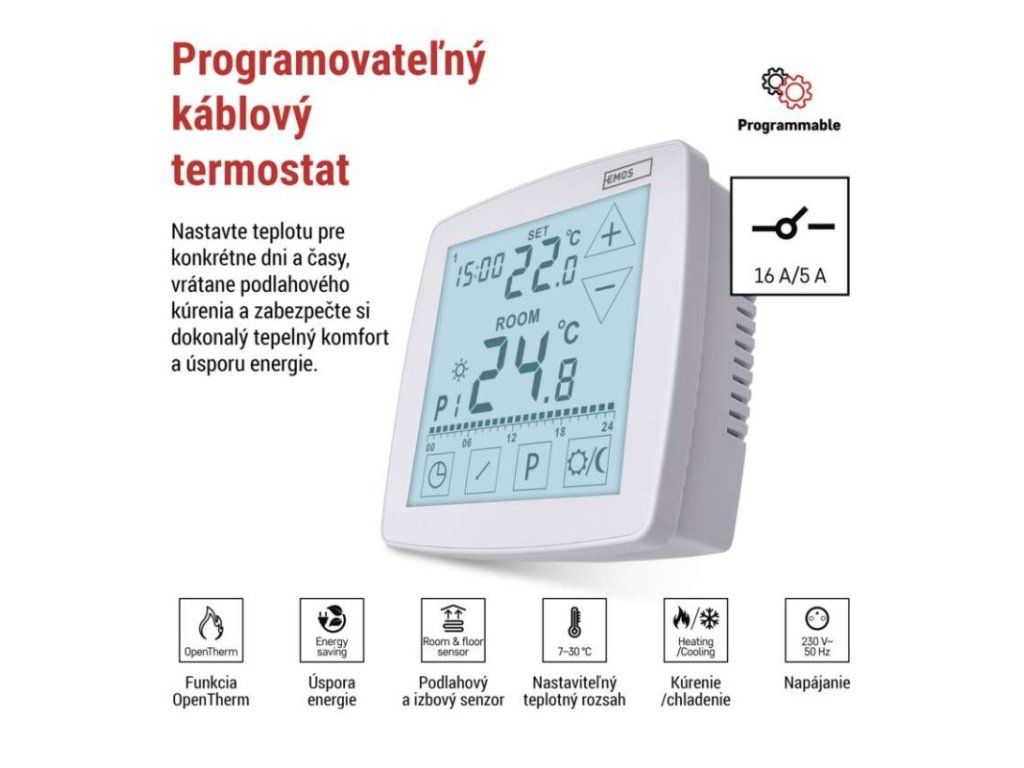

Cable-connected programmable OpenTherm room thermostat P56A01
Code: EMS_2101211000Product detailed description
Heat and cool throughout the year
Give your home the ideal temperature in every season. Cable room thermostat with OpenTherm communication support automatically maintains warmth in winter and coolness in summer - exactly the way you like it. Thanks to 6 pre-set and 3 user-adjustable programs, you can easily schedule heating and cooling according to your daily routine. The thermostat reliably controls the heating system and air conditioning, ensuring stable temperature from 7 °C to 30 °C - both day and night. In addition, the thermostat includes a floor sensor with a length of 3 m that can be installed in a floor heating system. The clear, backlit display with large digits always clearly shows the current and desired temperature.
OpenTherm communication
The thermostat can be connected to a boiler that supports OpenTherm communication. Switching is done using OT and relay. Most thermostats have either only an OT output or a relay output. The P56A01 thermostat has both outputs for connecting to a boiler.
Temperature setting from 7 °C to 30 °C
No more temperature shocks, no more running to the boiler, and no more costly overheating - the thermostat maintains the ideal temperature for you. Create a comfortable room temperature so that you feel as good as possible. For optimal temperature, simply select the desired temperature on the thermostat in the range from 7 °C to 30 °C, which can be set in steps of 0.2 °C. On the display, you will then see whether the set temperature matches the actual room temperature.
Clear backlit display
The P56A01 thermostat combines practical functionality with modern, timeless design that fits into any interior. The backlit touch display is clear and intuitive - large digits make it easy to view the current and set temperature, and the backlighting allows convenient control at night without the need to turn on the light.
Choose the right thermostat for your needs
Discover our new range of thermostats - from classic to smart, with floor sensor or built-in, designed in an exclusive design exclusively for EMOS.
Technical specifications
| Capillary sensor length | – |
| Range in open space | – |
| Type of regulation | heating and cooling system |
| Color | white |
| On/off function | yes |
| Vacation function | no |
| Set-back function | no |
| Application languages | – |
| Temperature calibration | yes |
| Compatibility | – |
| Temperature measurement | 0 °C to 40 °C, resolution 0.1 °C |
| Option to connect to other detectors | no |
| Power supply | 230 V AC |
| Gateway power supply | – |
| Receiver power supply | – |
| Transmitter power supply | – |
| Temperature setting | 7 ° C to 30 ° C, in steps of 0.2 ° C |
| Adjustable temperature spread | 0.1 °C, 0.2 °C, 0.5 °C, 1.0 °C |
| Notifications to mobile app | no |
| Frost protection | yes |
| Voice assistant control | no |
| Number of programs | 6 + 3 user-adjustable |
| Floor sensor | NTC 10 kΩ, 3 m |
| Supported OS | – |
| Backlit display | yes |
| Operating frequency | – |
| Selling package | 1 pcs, box |
| Transmission frequency | – |
| Protocol | – |
| Dimensions | 98 × 37 × 98 mm |
| Gateway dimensions | – |
| Receiver dimensions | – |
| Transmitter dimensions | – |
| Switched load | 16 A resistive, 5 A inductive |
| Switching | 230 V AC or zero-crossing |
| Contents of the package | thermostat, floor sensor 3 m, Ø 8 mm |
| Type of temperature setting | comfort and energy-saving temperature |
| Type of control | programmable electronic room thermostat |
| Type of thermostat | corded with OpenTherm communication + floor heating |
Additional parameters
| Category: | Thermostats |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.486 kg |
| EAN: | 8592920149171 |
