Radiator fan set - extension of the basic fan set
Code: EMS_2107956100Product detailed description

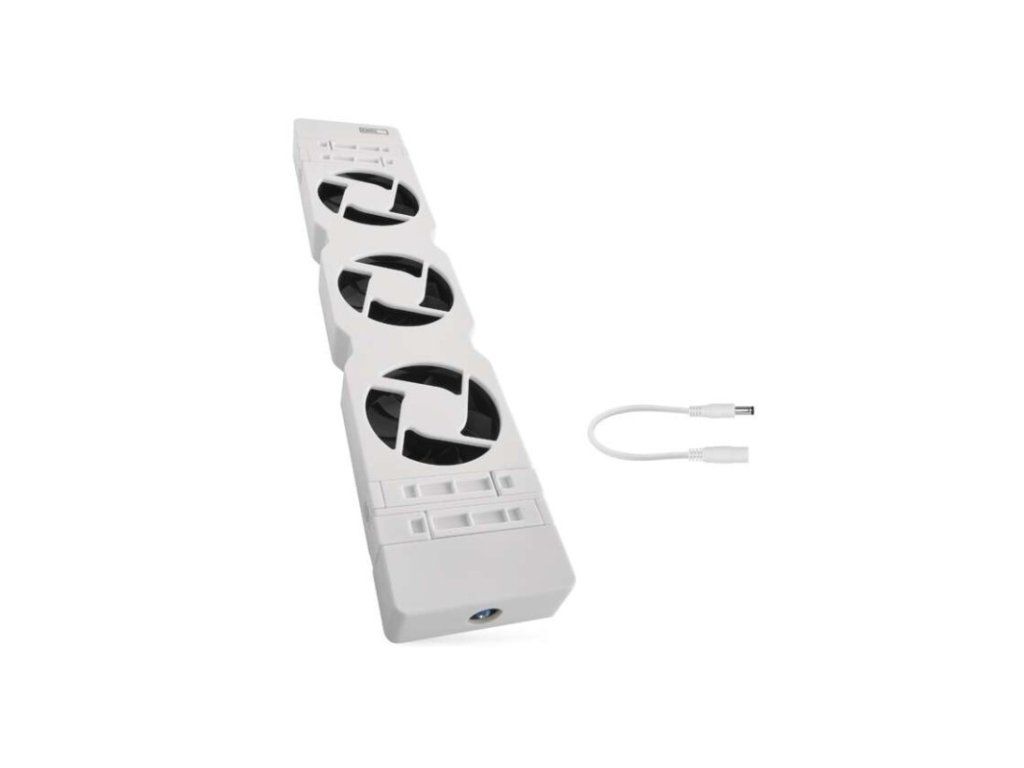

Radiator Fan with Extension
Allows for faster and more even heat distribution throughout the room, which reduces the need for high thermostat temperatures. An excellent aid in achieving efficient heating and energy savings.
Features
- Excellent aid in achieving efficient heating and energy savings
- Choice between two fan speeds for optimal performance
- Automatic start function when the temperature of the radiator, where the sensor is placed, exceeds 28 °C and automatic shutdown when the temperature drops below 25 °C

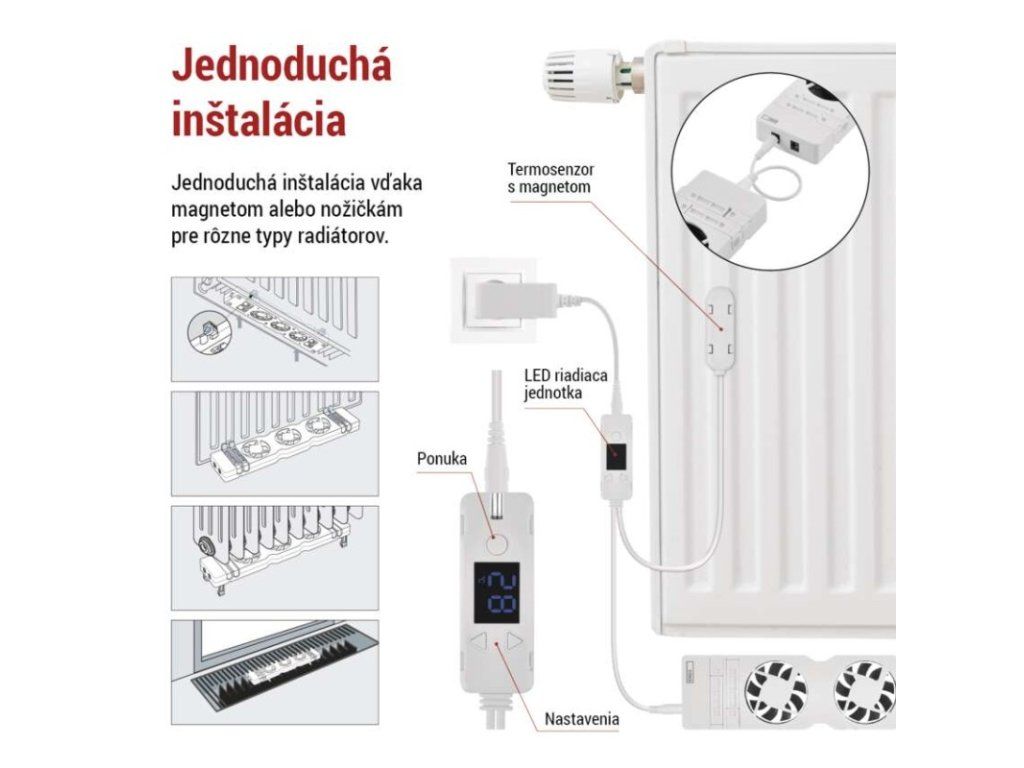

- Easy installation and flexible placement - can be quickly and easily installed on most heating units without the need for complex tools or professional assistance
Selecting the Correct Series
- One MONO fan is sufficient for a room with an area of approximately 12 m²
- For a room with a volume of 60 m³, choose the DUO set
- For a room with a 90 m³ volume, choose the TRIO set For a room with a 120 m³ volume, choose the TRIO + EXTENSION set or 2× DUO
Technical Specifications
| Color | white |
| Noise level | <20 dB |
| Material | heat-resistant PC with ABS |
| Temperature measurement | 25 °C to 70 °C, resolution 1 °C |
| Power supply | 5 V DC/2 000 mA (not included in the package) |
| Temperature setting | 28 °C to 70 °C, in 1 °C increments |
| Number of fans in the package | 1 fan |
| Sales packaging | 1 pcs, cardboard box |
| Airflow | 36 m³/h per each fan |
| Dimensions | 25 × 70 × 345 mm |
| Fan speed | 1 800 RPM (default setting) |
| Power consumption during operation | 0.8 W (1 800 RPM); 1.4 W (2 400 RPM) |
| Power consumption in standby mode | 0.03 W |
| On/Off | ON 28°C – 40°C / OFF 25°C |
| Warranty period | 2 years |
Additional parameters
| Category: | Radiator Fans |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.456 kg |
| EAN: | 8592920138052 |
