Wired programmable room OpenTherm thermostat P5606OT

Product detailed description

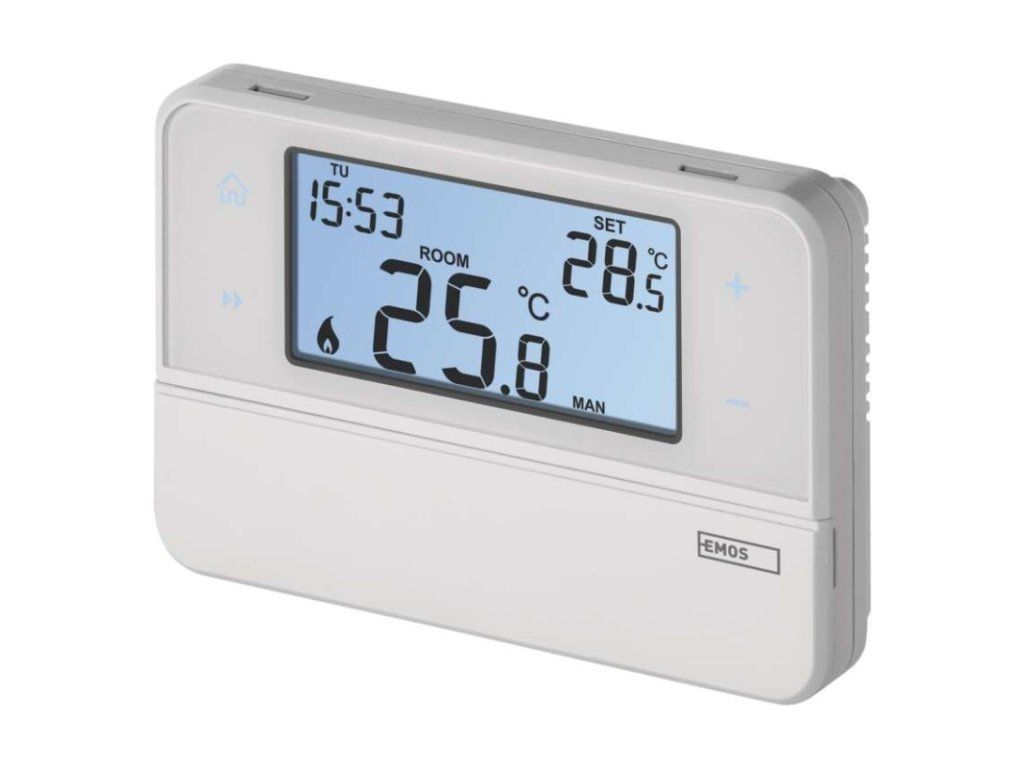

Programmable wired thermostat P56060T

Experience the comfort of controlling your heating system and save time and costs. The advantage of a wired thermostat is its stable information transfer between the boiler and the thermostat. The backlit display allows for easy control and programming of up to six temperature changes per day. Precise regulation is ensured by setting the temperature from 5 °C to 35 °C. The thermostat stands out with the possibility of connecting a boiler that supports OpenTherm communication and conventional switching via a switching contact (relay). Thanks to the Lock and Vacation functions, you will have full control over the heating of your apartment, house or office every day.

Temperature setting from 5 °C to 35 °C

The programmable thermostat allows you to set the desired temperature according to your lifestyle. No more temperature shocks or costly overheating. The thermostat monitors the ideal temperature for you. Program the optimal temperature from 5 °C to 35 °C in 0.5 °C steps. The thermostat measures the current room temperature from 0 °C to 40 °C with a precision of 0.1 °C. Thanks to the anti-frost protection, the thermostat prevents damage to the heating system from freezing if the building is not regularly heated during winter.

Support for OpenTherm communication

The advantage is the possibility of connecting a boiler that supports OpenTherm communication. The boiler's performance is regulated not only according to the room temperature, but also according to the water temperature in the system and other variables. Switching is carried out using OT and relay. Most thermostats have either only an OT output or a relay output. Emos P5606OT and P5616OT thermostats have both outputs for connecting to a boiler.

Transparent display with backlighting

Transparency and clear backlighting are the main advantages of the thermostat's display. Thanks to this, the control is simple and intuitive. Thanks to the large digits on the display, you can easily read the current and set temperature or program a heating schedule. The backlighting allows you to operate the thermostat even in the dark or in low light conditions.

Lock function (child lock)

You do not have to worry about tampering with the set temperature. The lock function can lock the thermostat and ensures you 100 % control by allowing the thermostat to be operated only after entering a double security code. The Lock function serves you well as a safety device for children. A thermostat with the Lock function is a mandatory equipment for all apartment owners and guesthouse operators.

Programming and intelligent functions

Program your ideal temperature comfort according to your wishes and needs. The thermostat allows you to set up to 6 different user-defined temperatures per day. The advantage is user-friendliness, which makes it easy for anyone to operate. The room temperature calibration function can set the precise temperature you are used to, according to another reference thermometer. Using the vacation mode, you can set a constant temperature for a longer period.

Power supply via 2× AA batteries

The wired thermostat is powered by two 1.5 V AA batteries. The battery charge level indicator will notify you when battery replacement is needed. The batteries are part of the package, as well as two screws and two wall plugs needed to mount the thermostat on the wall.

Technical specifications
