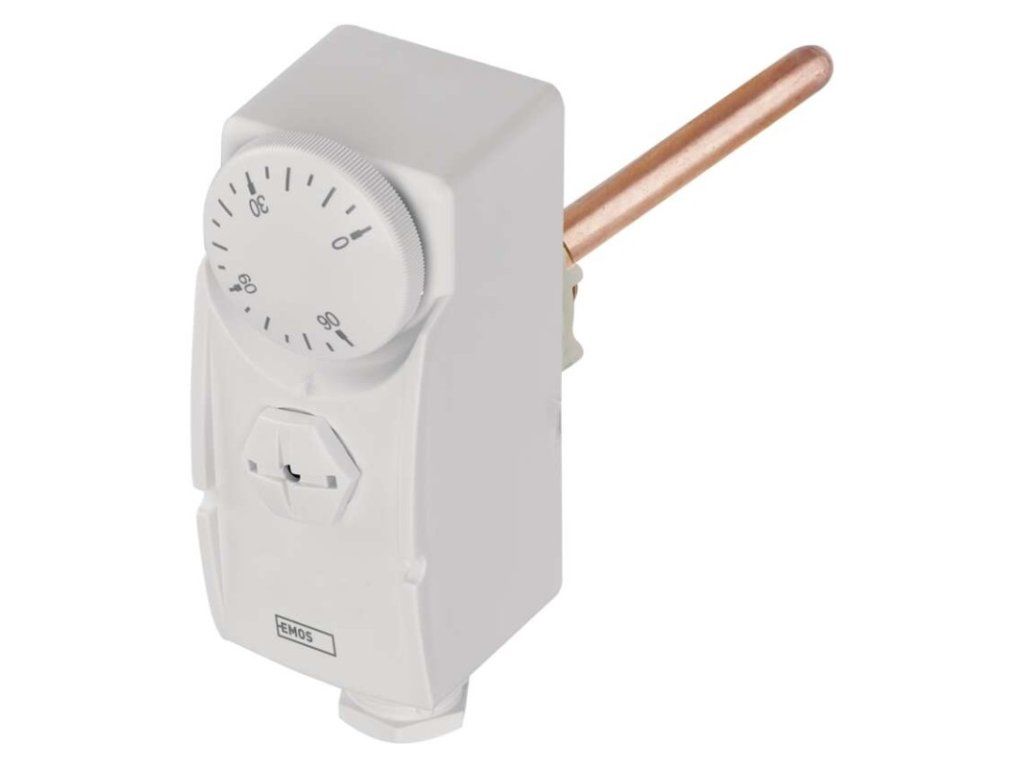

Thermostat P5685 with Capillary Sensor
Code: EMS_2101109000Product detailed description
Thermostat for tank P5685
Are you looking for a tool that will help you efficiently control the temperature in your home? The tank thermostat is an ideal companion for boilers and storage tanks, providing efficient temperature regulation. The thermostat allows precise and reliable temperature control thanks to a sensor mounted directly on the boiler. It provides absolute temperature control that will immediately be reflected in savings on heating and cooling costs!
Absolute temperature control
The thermostat P5685 offers a wide range of applications, whether for heating systems or cooling units. With its adjustable temperature range from 0 °C to 90 °C, it allows precise setting of the desired temperature according to specific needs and environment. This ensures optimal comfort and heating or cooling efficiency in a home or workplace environment.
Simple operation and convenient control
Smooth operation is the key to simplicity and satisfaction. The control is simple and intuitive. Simply turn a single selector to set the desired temperature. Thanks to its compact dimensions, 1/2 thread and 110 mm sensor length, installation is simple and trouble-free.
Safe temperature regulation
The thermostat is powered directly from the 230 V network, ensuring reliable operation. The thermostat also includes a rubber grommet that protects the connected cables. Thanks to this grommet, the safety and long service life of the thermostat are ensured.
Technical specifications
| Type of regulation | heating and cooling system |
| Color | white |
| On/off function | no |
| Emptying function | no |
| Temperature calibration | no |
| Temperature measurement | 0 °C to 90 °C |
| Power supply | 230 V, 400 V AC |
| Temperature setting | 0 °C to 90 °C, resolution 5 °C |
| Frost protection | no |
| Sales packaging | 1 pc, box |
| Protocol | – |

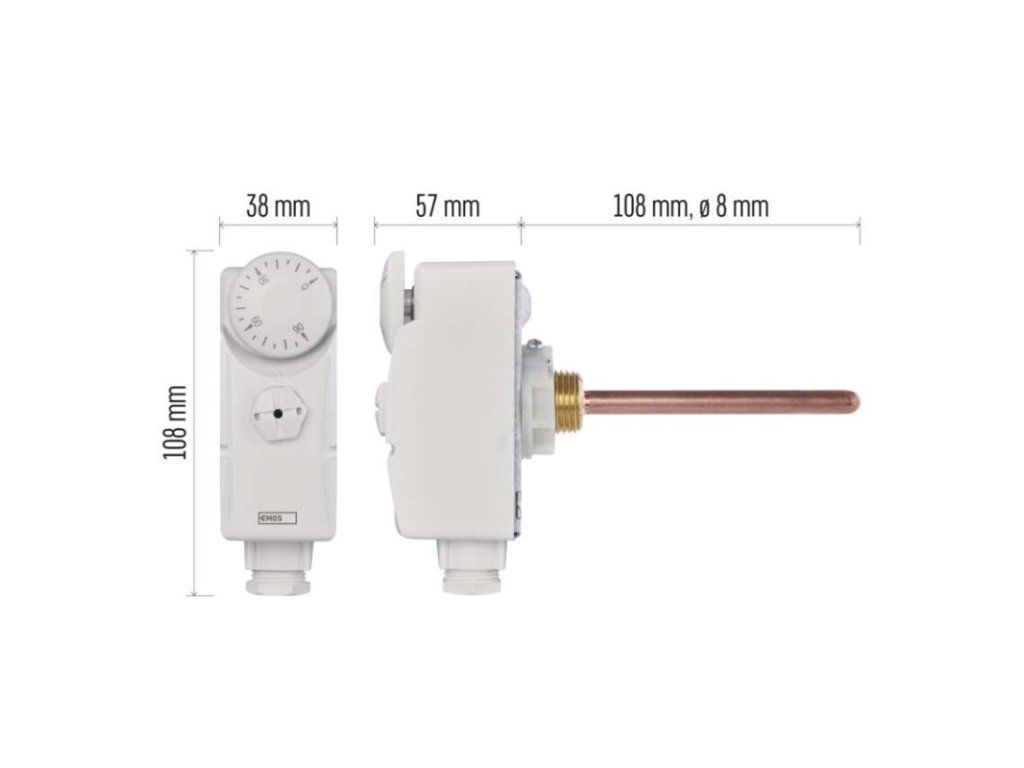

| Dimensions | 57 × 38 × 108 mm, tank: 110 mm, Ø 8 mm, thread 1/2" |
| Switching load | 16 A resistive, 4 A inductive |
| Switching | voltage 230 V AC, 50 Hz |
| Type of control | manual thermostat |
| Type of thermostat | wired surface-mounted |
Additional parameters
| Category: | Thermostats |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.24 kg |
| EAN: | 8592920120934 |
