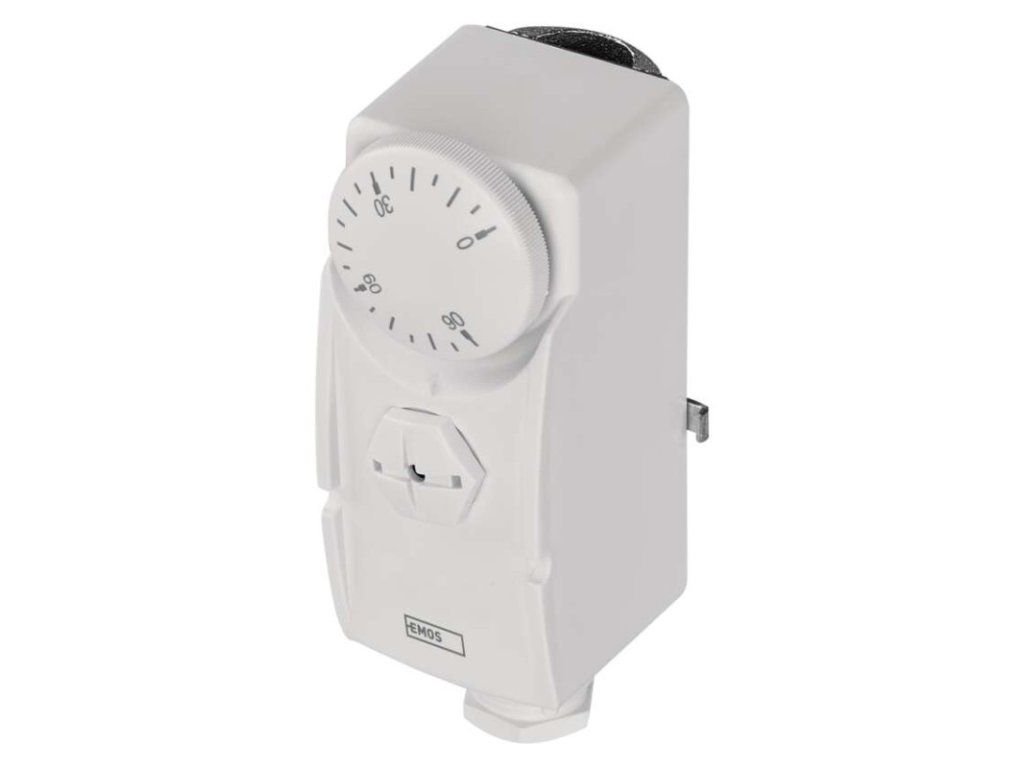

Clamp-on manual thermostat P5681
Code: EMS_2101103000Product detailed description
Product Description
Surface-mounted thermostat. Measures water temperature in hot water storage tanks or heating systems. Allows temperature control, monitoring of temperature limits and temperature drop function.
Technical Specifications
| Type of control | heating and cooling system |
| Colour | white |
| On/off function | no |
| Drain function | no |
| Temperature calibration | no |
| Temperature measurement | 0 °C to 90 °C |
| Power supply | 230 V, 400 V AC |
| Temperature setting | 0 °C to 90 °C, resolution 5 °C |
| Frost protection | no |
| Sales packaging | 1 pc, box |
| Protocol | – |
| Dimensions | 38 × 54 × 105 mm |
| Switched load | 16 A resistive, 4 A inductive |
| Switching | voltage 230 V AC, 50 Hz |
| Type of control | manual thermostat |
| Type of thermostat | clamping with cable |
Additional parameters
| Category: | Thermostats |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.207 kg |
| EAN: | 8592920021910 |
