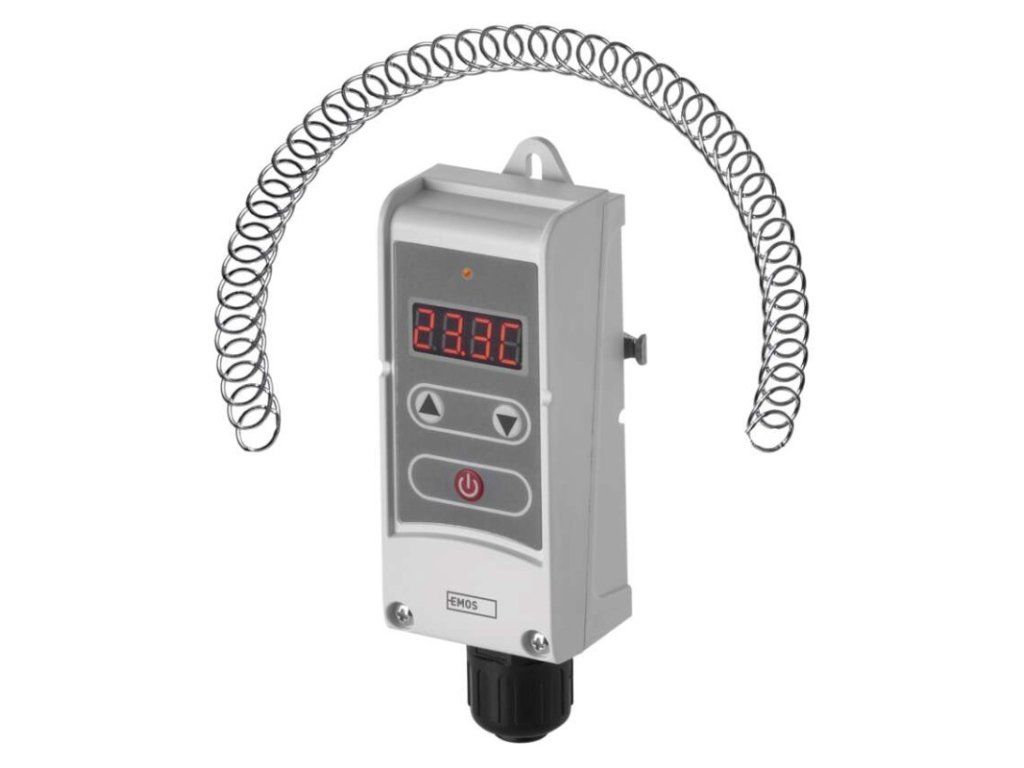

Clamp-on manual thermostat P5683
Code: EMS_2101107000Product detailed description
Product Description

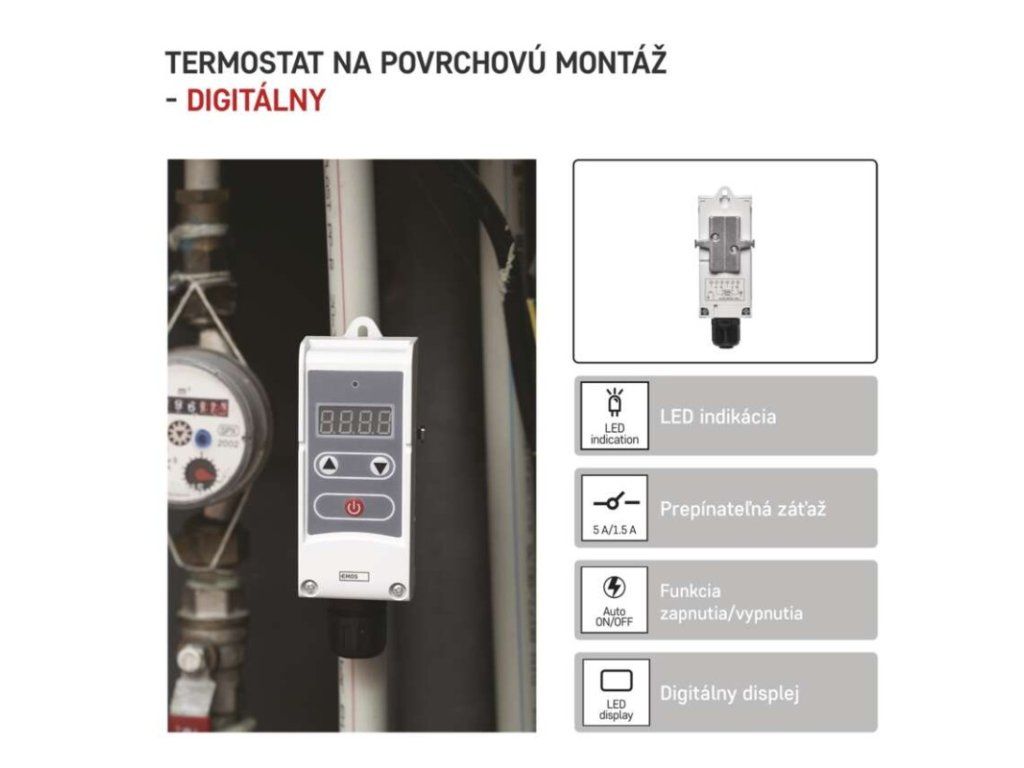

Surface-mounted thermostat. Measures the temperature of water in hot water storage tanks or heating systems. Allows temperature control, monitoring of temperature limits, and temperature drop function.
Technical Specifications
| Type of regulation | heating and cooling system |
| Color | white |
| On/off function | yes |
| Emptying function | no |
| Temperature calibration | no |
| Temperature measurement | 5 °C to 80 °C, resolution 0,1 °C |
| Power supply | 230 V AC |
| Temperature setting | 5 °C to 80 °C, in steps of 0,1 °C |
| Adjustable temperature spread | 0,1 °C to 15 °C, in steps of 0,1 °C |
| Frost protection | no |
| Illuminated display | yes |
| Sales packaging | 1 pc, box |
| Protocol | – |
| Dimensions | 41 × 50 × 138 mm |
| Switched load | 5 A resistive, 1,5 A inductive |
| Switching | voltage 230 V AC, 50 Hz |
| Type of temperature setting | manual |
| Type of control | manual thermostat |
| Type of thermostat | clamping with cable |
Additional parameters
| Category: | Thermostats |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.16 kg |
| EAN: | 8592920088302 |
