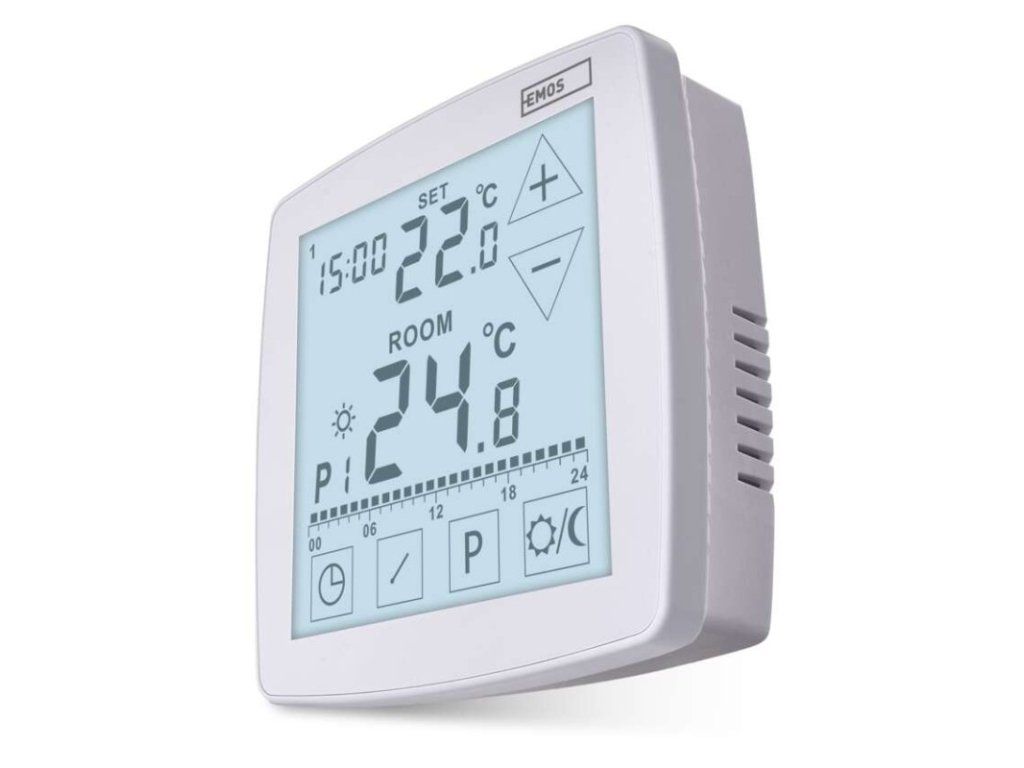

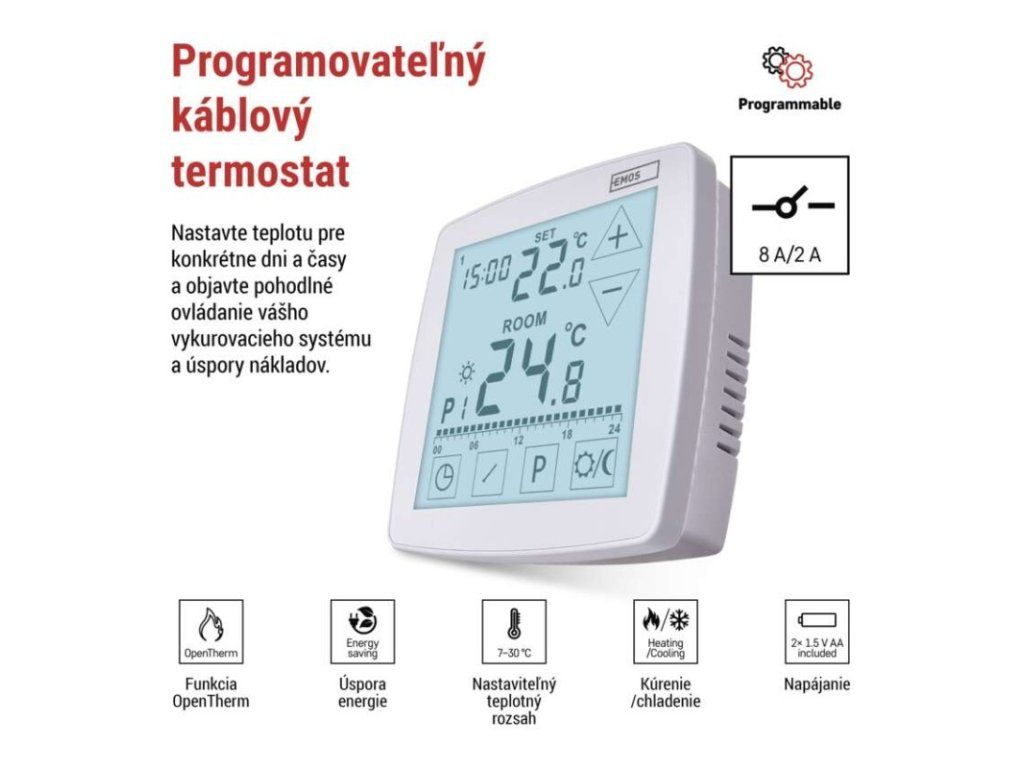

Wired programmable room OpenTherm thermostat P56A02
Code: EMS_2101214000Product detailed description
Heat and cool throughout the year
Give your home the ideal temperature in every season. Cable room thermostat with support for OpenTherm communication automatically keeps warmth in winter and coolness in summer - exactly the way you like it. Thanks to 6 preset and 3 user-adjustable programs, you can easily plan heating and cooling according to your daily routine. The thermostat reliably controls the heating system and air conditioning and ensures stable temperature from 7 °C to 30 °C - both day and night. The clear, backlit display with large digits always clearly shows the current and desired temperature.

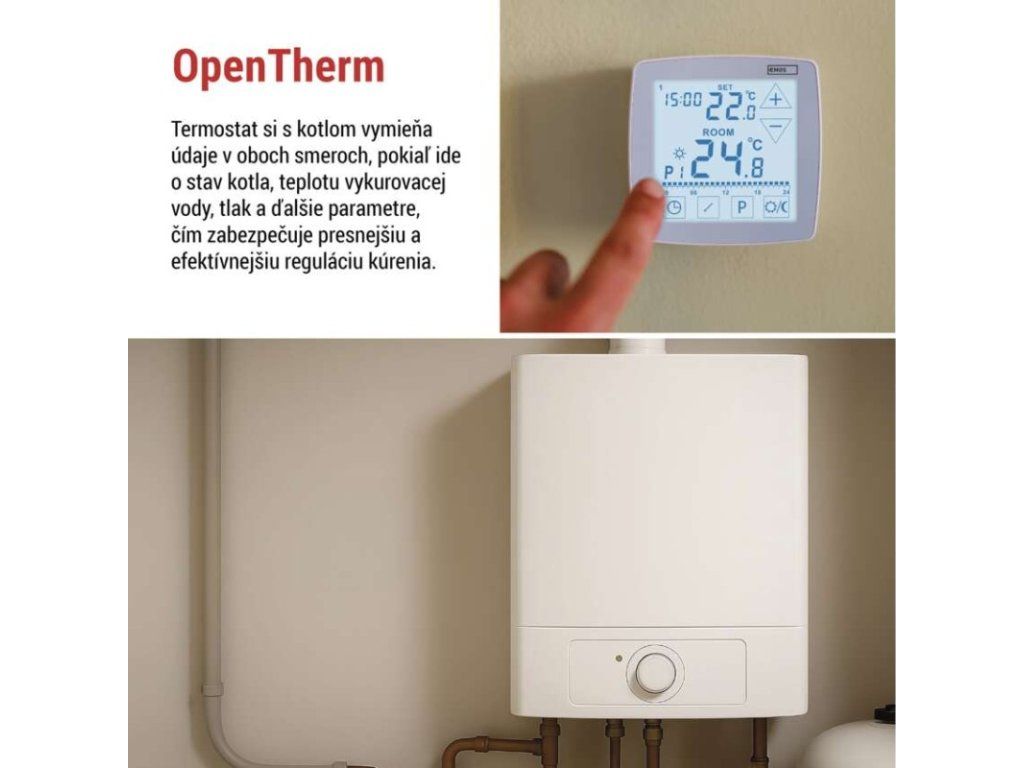

OpenTherm communication
The thermostat can be connected to a boiler that supports OpenTherm communication. Switching is performed using OT and using a relay. Most thermostats have either only an OT output or a relay output. Thermostat P56A01 has both outputs for connecting to the boiler.
Temperature setting from 7 °C to 30 °C
No more temperature shocks, no more running to the boiler and no more costly overheating - the thermostat maintains the ideal temperature for you. Create a comfortable room temperature so that you feel as good as possible. For optimal temperature, simply select the temperature range from 7 °C to 30 °C on the thermostat, which can be set in steps of 0.2 °C. On the display, you will then see whether the set temperature corresponds to the actual temperature in the room.
Clear backlit display
Thermostat P56A02 combines practical functionality with modern, timeless design that fits into any interior. The backlit touch display is clear and intuitive - large digits make it easy to see the current and set temperature and thanks to the backlighting, it is comfortably operated at night without the need to turn on the light.
Choose the right thermostat for your needs
Discover our new range of thermostats - from classic to smart, with floor sensor or built-in, designed in an exclusive design exclusively for EMOS.
Technical specifications
| Capillary sensor length | – |
| Range in free space | – |
| Type of regulation | heating and cooling system |
| Color | white |
| On/off function | yes |
| Vacation function | no |
| Set-back function | no |
| Application languages | – |
| Temperature calibration | yes |
| Compatibility | – |
| Temperature measurement | 0 °C to 40 °C, resolution 0.1 °C |
| Option to connect to other detectors | no |
| Power supply | 2× 1.5 V AA (included in the package) |
| Gateway power supply | – |
| Receiver power supply | – |
| Transmitter power supply | – |
| Temperature setting | 7 °C to 30 °C, in steps of 0.2 °C |
| Adjustable temperature spread | 0.1 °C, 0.2 °C, 0.5 °C, 1.0 °C |
| Notifications to mobile app | no |
| Frost protection | yes |
| Voice assistant control | no |
| Number of programs | 6 + 3 user-adjustable |
| Floor sensor | – |
| Supported OS | – |
| Backlit display | yes |
| Operating frequency | – |
| Selling package | 1 pcs, box |
| Transmission frequency | – |
| Protocol | – |
| Dimensions | – |
| Gateway dimensions | – |
| Receiver dimensions | – |
| Transmitter dimensions | 98 × 31 × 98 mm |
| Switched load | 8 A resistive, 2 A inductive |
| Switching | 230 V AC or neutral |
| Type of temperature setting | comfort and energy-saving temperature |
| Type of control | programmable electronic room thermostat |
| Type of thermostat | hardwired with OpenTherm communication |
Additional parameters
| Category: | Thermostats |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.436 kg |
| EAN: | 8592920149195 |
